GE OEC Training

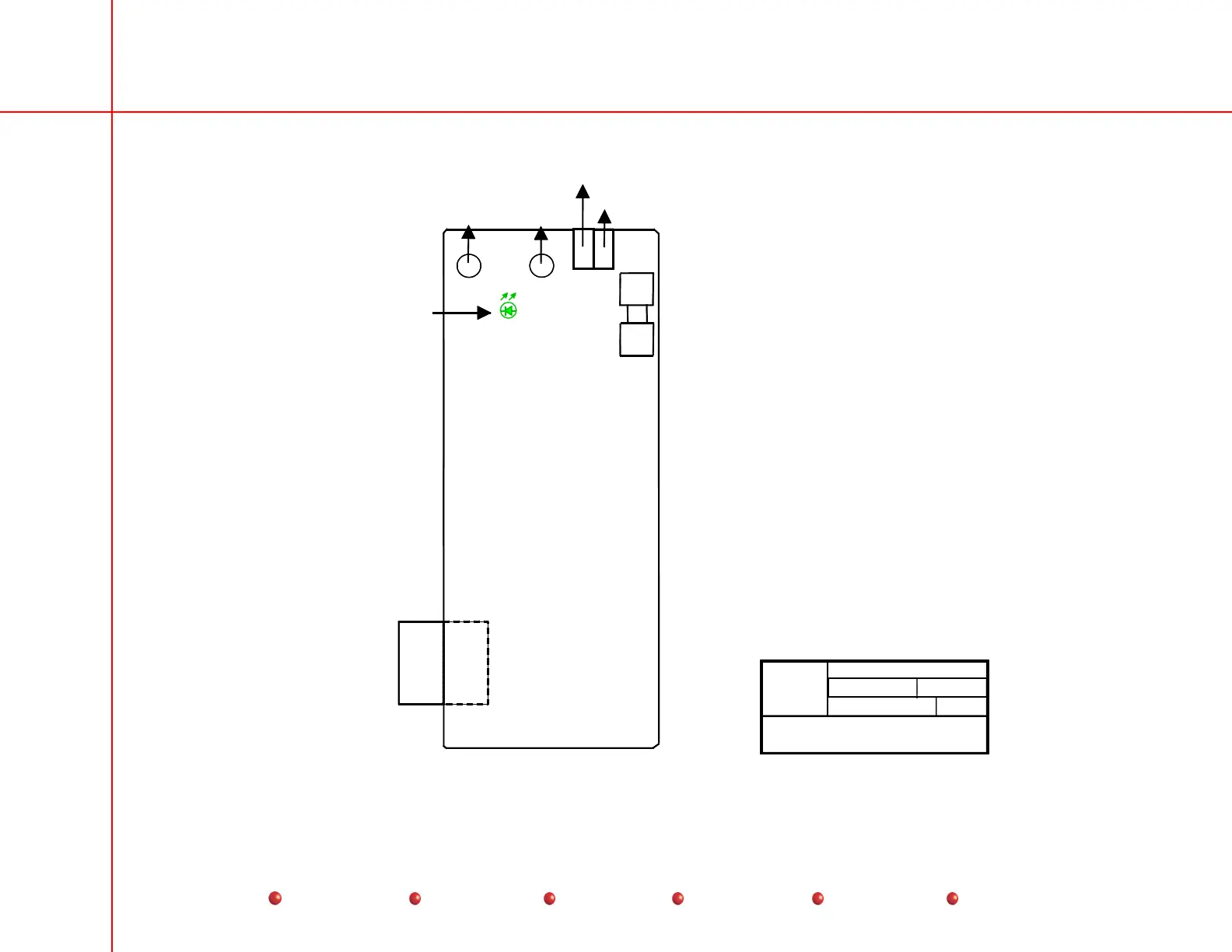

Generator LEDS/Lamps
3 Phase AC/DC Board
Fuse F1 protects (on DC Bus)
LV Power Supply, 3 Phase Board
F1
DS1 Orange Neon Indicates
presence of voltage on the DC Bus
DS1
J1
J2
To Quad Snubber Board
To Rotation Board
DC Bus to resonant
circuit power components
-DC
+DC
-
+
U1
U1 is a bridge rectifier
located behind the
EMC board and the
AC/DC board. It is mounted
to alarge heat sink
(visible on the back
of the metal housing.
09/02
Generator LEDs/Lamps – 3 phase AC/DC Board
