OEC UroView 2800 - mA Generation Functional Diagram - Heater Board LEDs

OEC UroView
®
2800 Table/Generator Functional Block Diagrams
51
Service Periodic Maintenance
Contents
Schematics Illustrated Parts Installation
Page 4 of 6

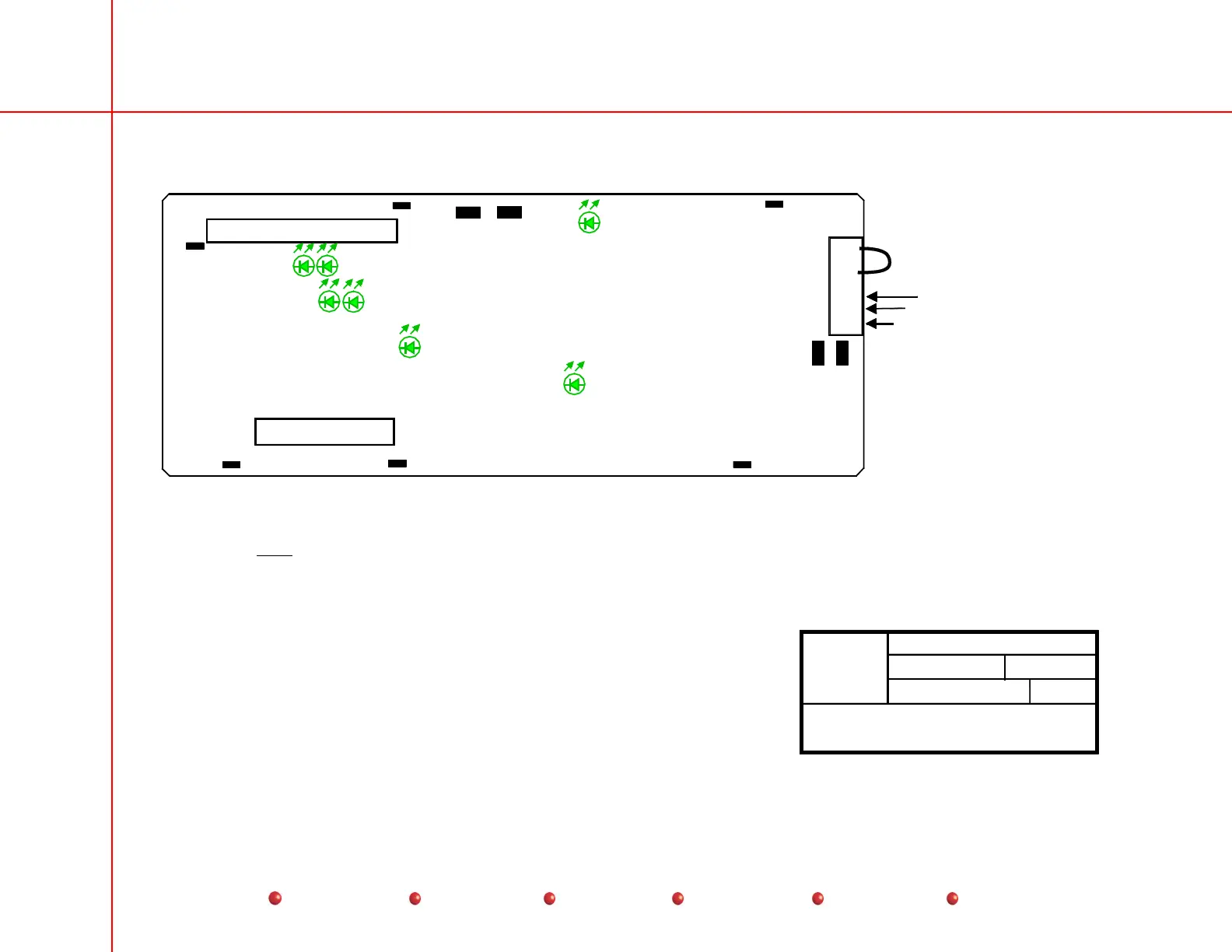

mA Generation Functional Diagram
Heater Board LEDs
07/01
2800
GE OEC Training
g
28MA.DS4
J2
LF
COMMON
SF
J3
J1
GND2
DS3
DS4
ON
CF2
CF1
GND5
GND1
GND6
GND4
GND3
CF3
CF4
SF_LF
RESET
DS2
DS1
LEDs:
DS1-YELLOW-STATUS-BLINKING
DS2-YELLOW-STATUS-BLINKING
DS3-GREEN-+160VDC PRESENT
DS4-YELLOW-INVERTER OUTPUT RUNNING
ON-YELLOW-INVERTER COMMAND ON
SF_LF-YELLOW-SMALL/LARGE FOCAL SPOT RELAY FEEDBACK
RESET-RED-PCB POWER UP OR RESET
GND1-6 GROUND PADS
6
4
JUMPER (ONLY ON ONE BOARD)
TELLS SOFTWARE THIS IS THE
SECOND BOARD (SMALL SPOT)
IN A TWO BOARD SYSTEM
HEAT_160V
HEAT_0V
mA Generation Functional Diagram – Heater Board LEDs
