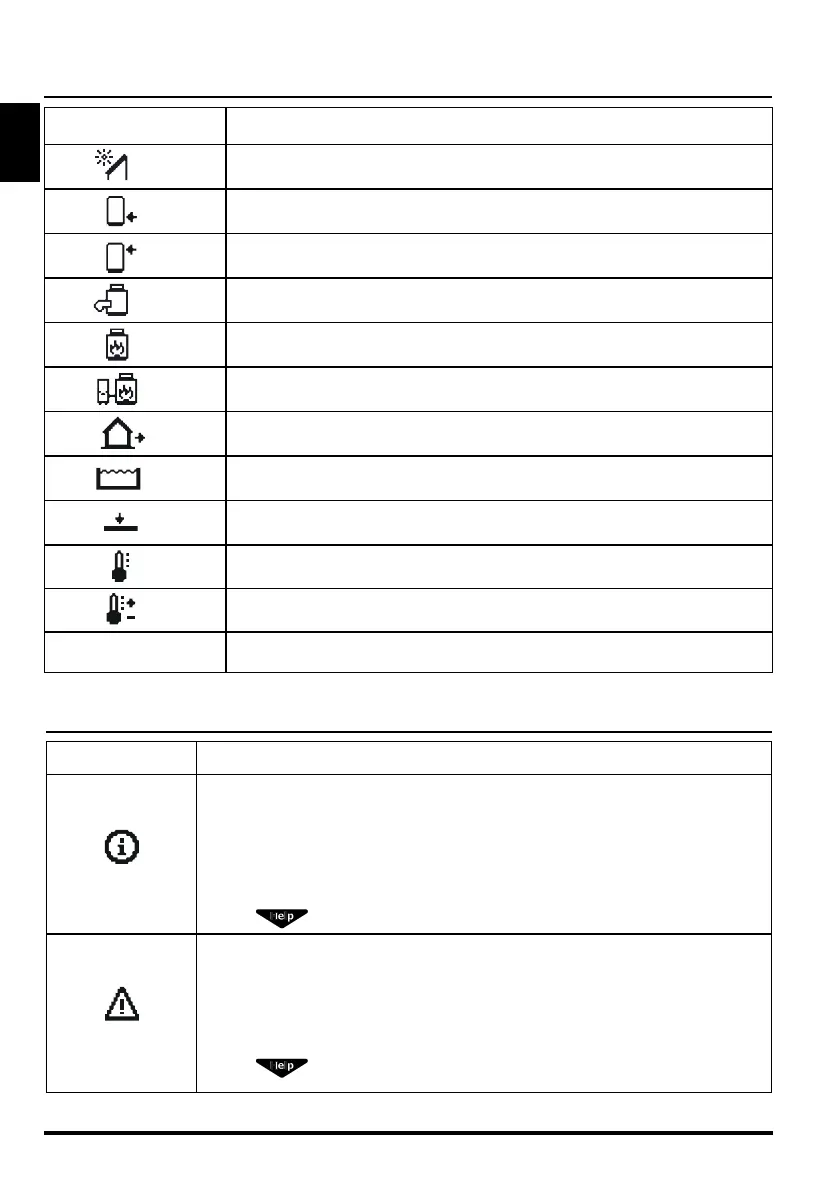

TEMPERATURE AND OTHER DATA SYMBOLS
SYMBOLS FOR NOTICE AND WARNINGS
Symbol Description
Notice
In case of exceeding the maximum temperature or activation of pro-
tection function, the controller indicates the event with flashing symbol
on the display. If the maximum temperature is no longer exceeded or if
the protection function is turned off, a lited symbol indicates a recent
event.
Press to open the screen to check notifications.
Warning
In the event of sensor failure, pump error or flow sensor error, the
controller indicates the failure with flashing symbol on the display. If
the issue is resolved or no longer present, a lited symbol indicates a
recent event.
Press to open the screen for warnings.
Symbol
Description
Solar collectors temperature
Temperature of storage tank or heat accumulator - bottom
Temperature of storage tank or heat accumulator - top
Liquid fuel boiler temperature
Solid fuel boiler temperature
Pellet boiler temperature
Outdoor temperature
Swimming pool water temperature
Stand- pipe or return- pipe temperature
Measured temperature
Set point or calculated temperature
T1, T2, T3, T4, T5, T6
Temperature sensors T1, T2, T3, T4, T5 and T6
