OEG KSW-E Series User Manual

User and settings manual
ENG
10
Controller operation mode
Active
functions
Measured
temperatures,
state of output
and other data
Time and date
All important data of controller operation are shown on the graphic LCD display.
Advanced review of temperatures:
Measured temperature
Set point temperature

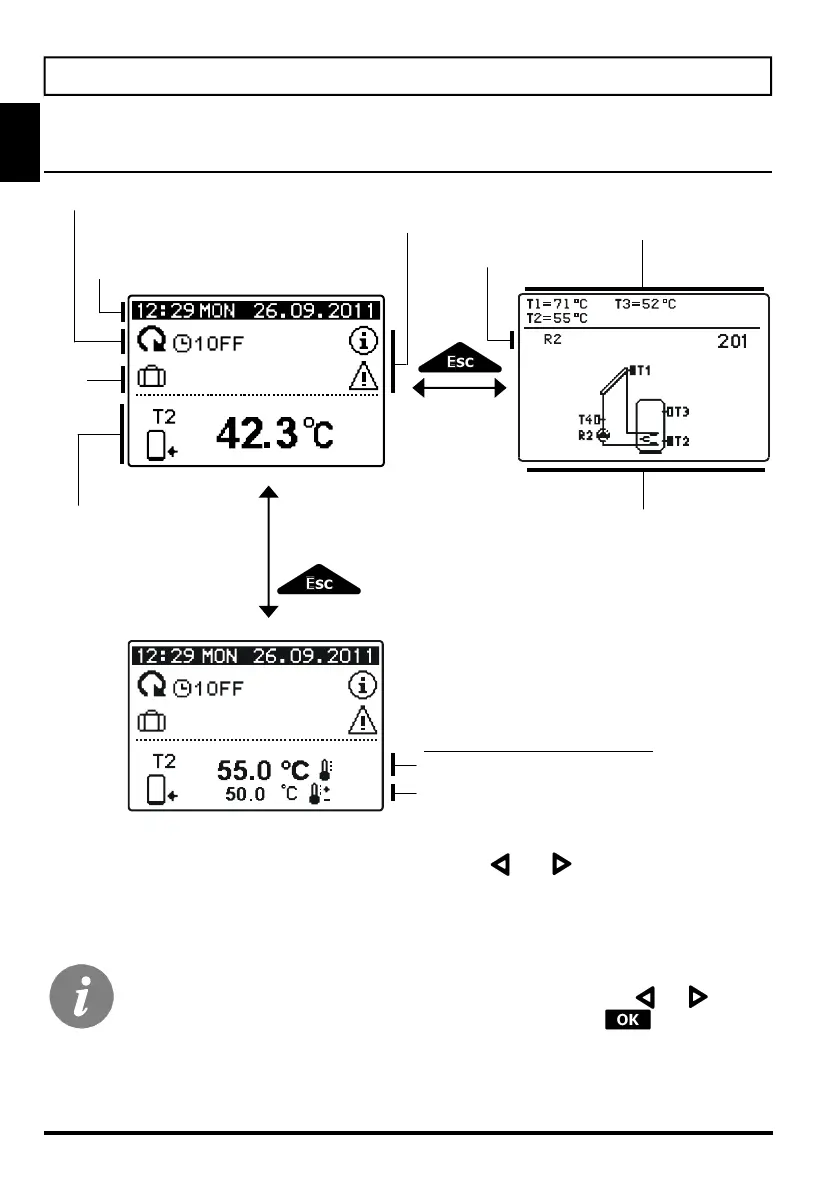

DESCRIPTION AND DESIGN OF THE MAIN DISPLAY:
For temperature and other data review we use buttons and .
Number of sensors and other data seen on the display depends on the selected hydraulic
scheme and controller settings.
2s
Which data are shown on the basic display depends on the selected scheme.
If we want to change the displayed information, press button or to
select the required data and confirm it by holding button for 2 se-
conds.
Messages
and warnings
State
of output
Diagram
of hydraulic
scheme
Measured
temperatures
GRAPHIC LCD DISPLAY
