7
Operating Instructions and Parts Manual 24495
OSCILLATING TOOL
1/17
2017 OEMTOOLS
®
Figure Description Qty.
A
Shaft Ring 1
B Screw 8
C Gear Housing 1
D Ball Bearing 1
E Snap Ring 1
F Fork 1
G Needle Bearing 1
H Oil Seal 1
I Block 1
J Pin 1
K Bushing 2
L Speed Trigger 1
M Magnet 1
N Screw 1
O Square Washer 1
P Ring 1
Q Bearing Support 1
R E-Ring 1
S Ball Bearing 1
T Ball Bearing 1
U Rotor 1
V Balling Bearing 1
W Ball 1
X
Bearing 1
Y Output Shaft 1
Z Spring Shaft 1
AA Spring 1
BB Bearing 1
CC Connecting Block 1
DD Press Plate 1
EE Baffle 1
FF Stator 1
GG On/Off Button 1
HH Switch Lever 1
II Brush Holder Support 2
JJ Carbon Brush Assembly 2
KK Brush Cap 2
LL Speed Control Knob 1
MM Motor Housing 1
NN Shaft Ring 1
OO PC Board 1
PP Screw 1
QQ Handle Cover 1
RR Cord Guard 1
SS Power Cord 1
Parts List
This symbol designates that this tool is listed with
U.S. requirements by ETL Testing Laboratories, Inc.
Conforms to UL Std. 60745-1 and 60745-2-2.
Intertek
3151837
JD2545K
A
I
B
C
D
E
F
G
H
EE
FF
GG
II
JJ
KK
HH
LL
MM
NN
OO
PP
SSRRQQ
DD
CC
AA
Z
Y
X
W
BB
V
U
T
S
R
Q
P
O
N
M
L
K
J

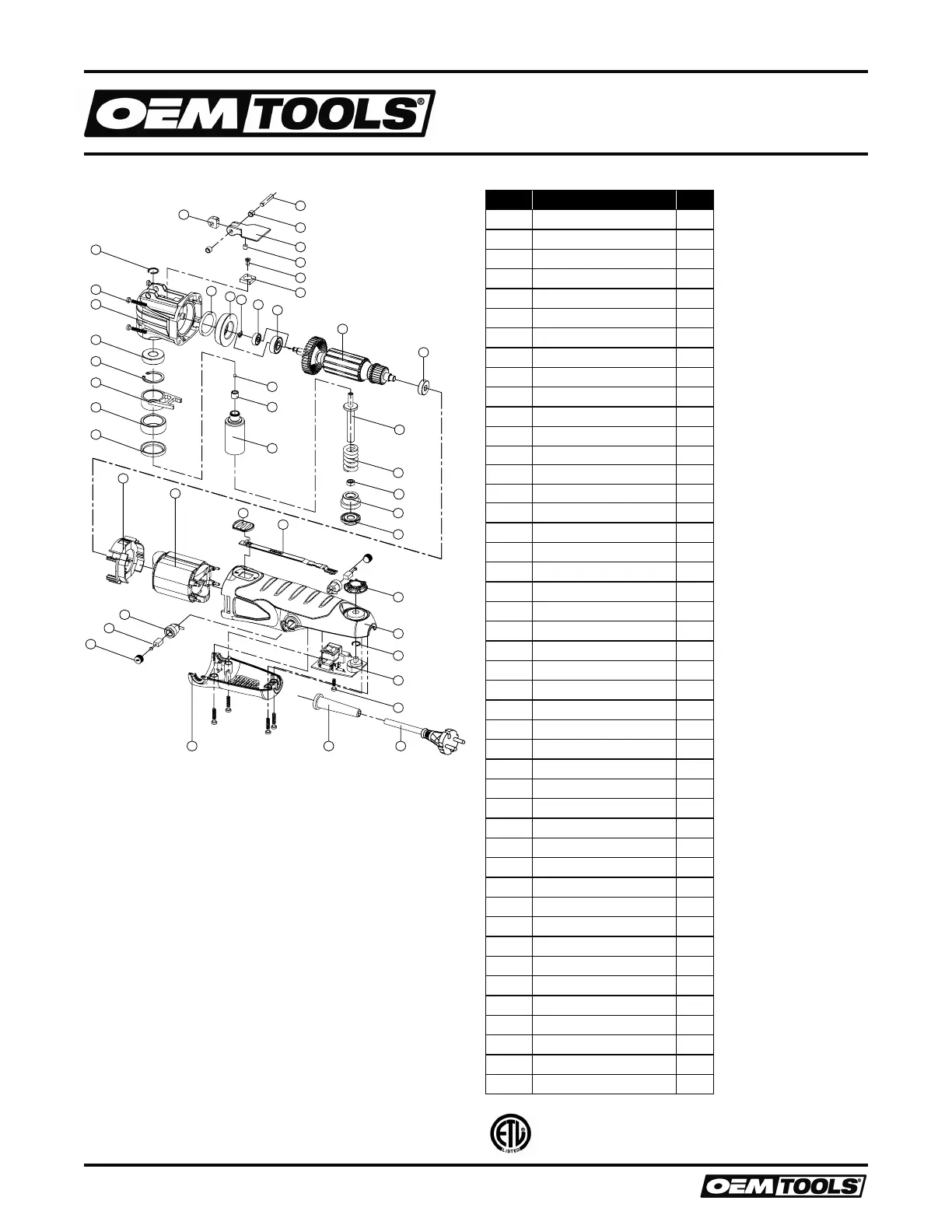

Parts Diagram
NOTE:
Not all components of the Oscillating Tool are replacement items, but are illustrated
as a convenient reference for location and position in the assembly sequence.
