OEM Tools 24533 - Component Identification; Parts List Overview; Assembly Diagram

4
Operating Instructions and Parts Manual 24533
AIR VACUUM PUMP
03/14
2014 ©OEM-TOOLS
Figure Description Quantity
24533-1 Cover 1
24533-2
Cushion Feet
(Not shown)
4
24533-3 Aluminum Block
(Not shown)
1
24533-4 Tube M10
(Not shown)
1
24533-5 Seal Cap R12 1
24533-6 Vacuum Fitting
R12/R134a
1
24533-7 Seal Cap R134a 1
24533-8 Air Fitting 1
24533-9 O-ring
(Not shown)
1
24533-10 Washer
(Not shown)
1
NOTE
Not all components of the Air Operated
Vacuum Pump are replacement items, but
are illustrated as a convenient reference
for location and position in the assembly
sequence.

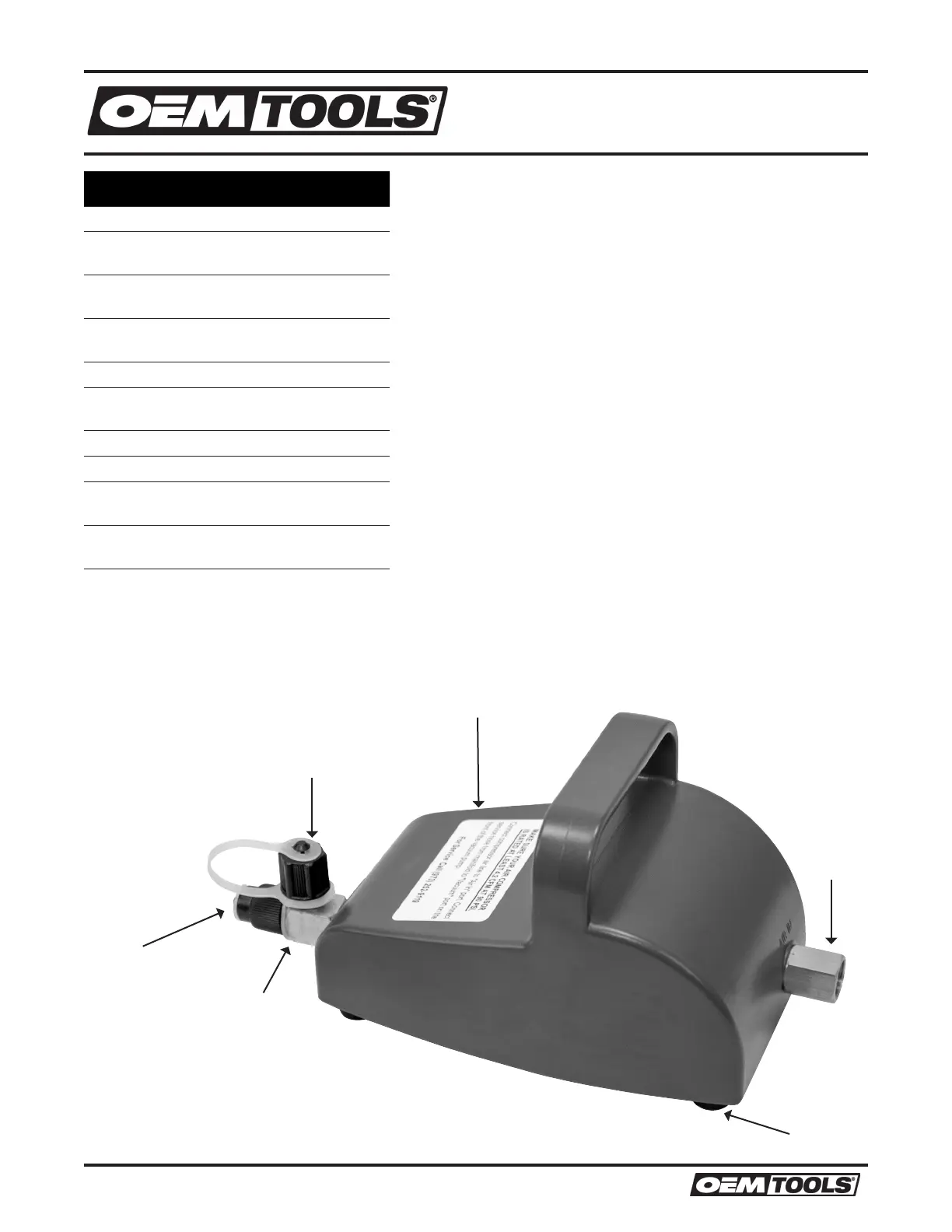

(8)
Air Fitting
(2)
Cushioned
Feet
(1)
Cover
(5)
Seal Cap R12
(7)
Seal Cap R134a
(6)
Vacuum Fitting
R12/R134a
