5
Operating Instructions and Parts Manual 24840
6/18
2018 OEMTOOLS
™
1,000 LB. TELESCOPIC
TRANSMISSION JACK
NOTE: Dispose of hydraulic fluid in accordance with
local regulations.
3. Set jack in its level position. Fill until oil is level with the
oil filler hole; reinstall oil filler plug.
LUBRICATION
A periodic coating of light lubricating oil to pivot points,
axles and hinges will help to prevent rust and assure that
casters and pump assemblies move freely.
CLEANING
Periodically check the pump piston and ram for signs of rust
or corrosion. Clean as needed and wipe with an oily cloth.
NOTE: Never use sandpaper or abrasive material on
these surfaces!
STORAGE
When not in use, store the jack with saddle fully lowered.
Always store the jack in a well-protected area where it will
not be exposed to inclement weather, corrosive vapors,
abrasive dust, or any other harmful elements.
DISPOSAL
At the end of the useful life of the product, dispose
of the components according to all state, federal and
local regulations.
Figure Description Qty.
A Support 1
B Legs 2
C 8 Ton Long Ram 1
D Handle 1
E Saddle 4
F Transmission Adapter 1
G Bolt M12X30 (Not Shown) 4
H Washer 12 (Not Shown) 8
I Nut M12 (Not Shown) 4
J Bolt M10X35 (Not Shown) 4
K Washer 10 (Not Shown) 6
L Nut M10 (Not Shown) 6
M Bolt M10X25 (Not Shown) 4
N Bolt M10X15 (Not Shown) 1
O Hook Bolt M8 1
P Chain 1
Q Caster 4
R Nut M12 4
Description Qty.
M10X25 mm Bolt 4
M10X35 mm Bolt 4
M12X25 mm 4
M12 Flat Washer 4
M10 Flat Washer 8
M12 Split Lock Washer 4
M10 Split Lock Washer 4
M12 Nyloc Hex Nut 4
M10 Hex Nut 4
M12 Cap Nut 4
PARTS DESCRIPTION
HARDWARE INCLUDED

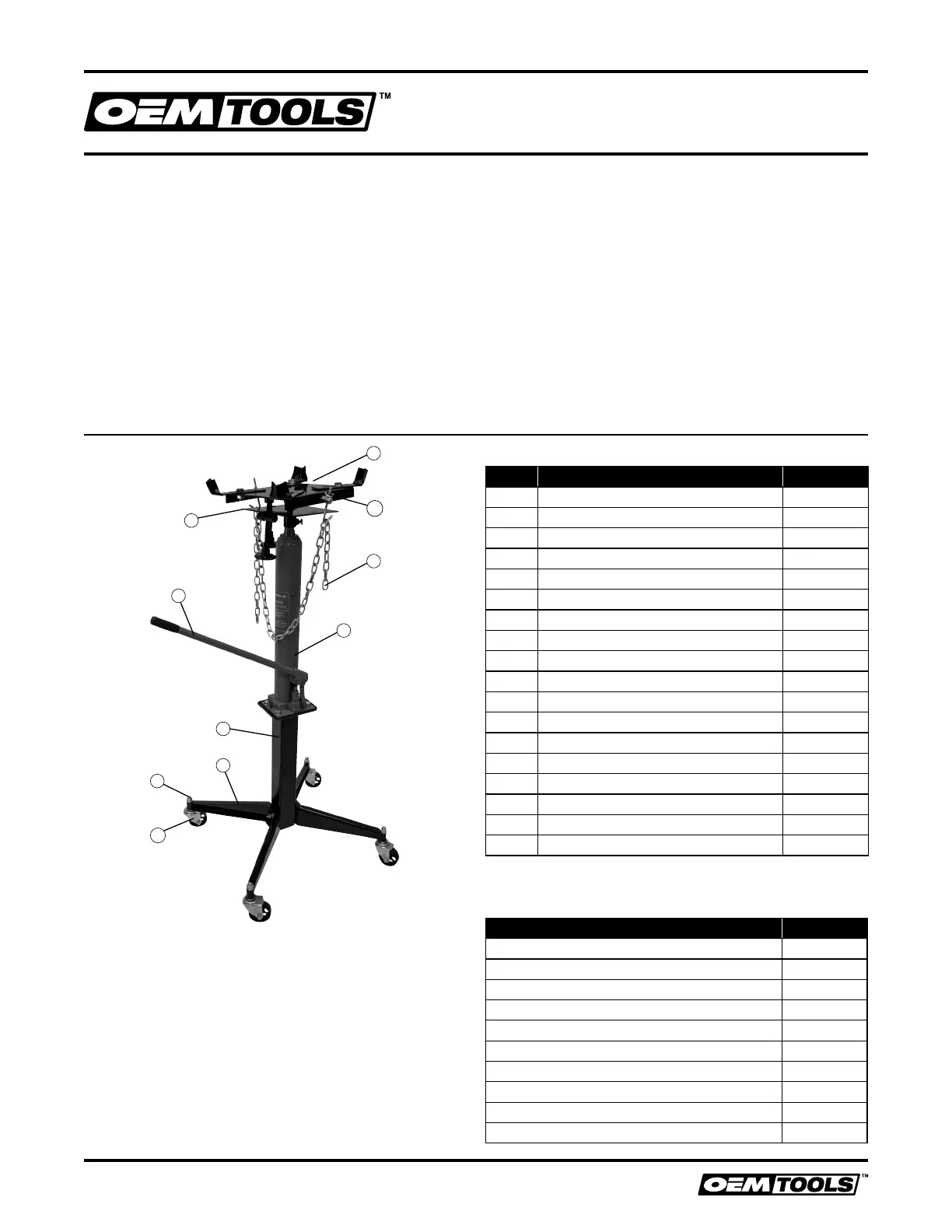

PRODUCT LAYOUT
A
B
D
C
P
O
F
E
Q
R
NOTE: Not all components of the product are replacement
items but are illustrated as a convenient reference for
location and position in the assembly sequence.
OEMTOOLS
™
and/or its distributors have provided the
parts list and assembly diagram as a reference only. Neither
OEMTOOLS
™
nor its distributors make any representation or
warranty of any kind to the buyer and/or user of this tool that
he or she is qualified to do any repairs or replace any parts
of this product. OEMTOOLS
™
and its distributors expressly
state that all repairs or parts replacement should be done
by certified or licensed technicians. The buyer assumes
all risk and liability arising out of his or her repairs or parts
replacement to the original production.
