REBUILD AIR SPRING CARTRIDGE
Only for DH38/RXf38 m.1 forks!

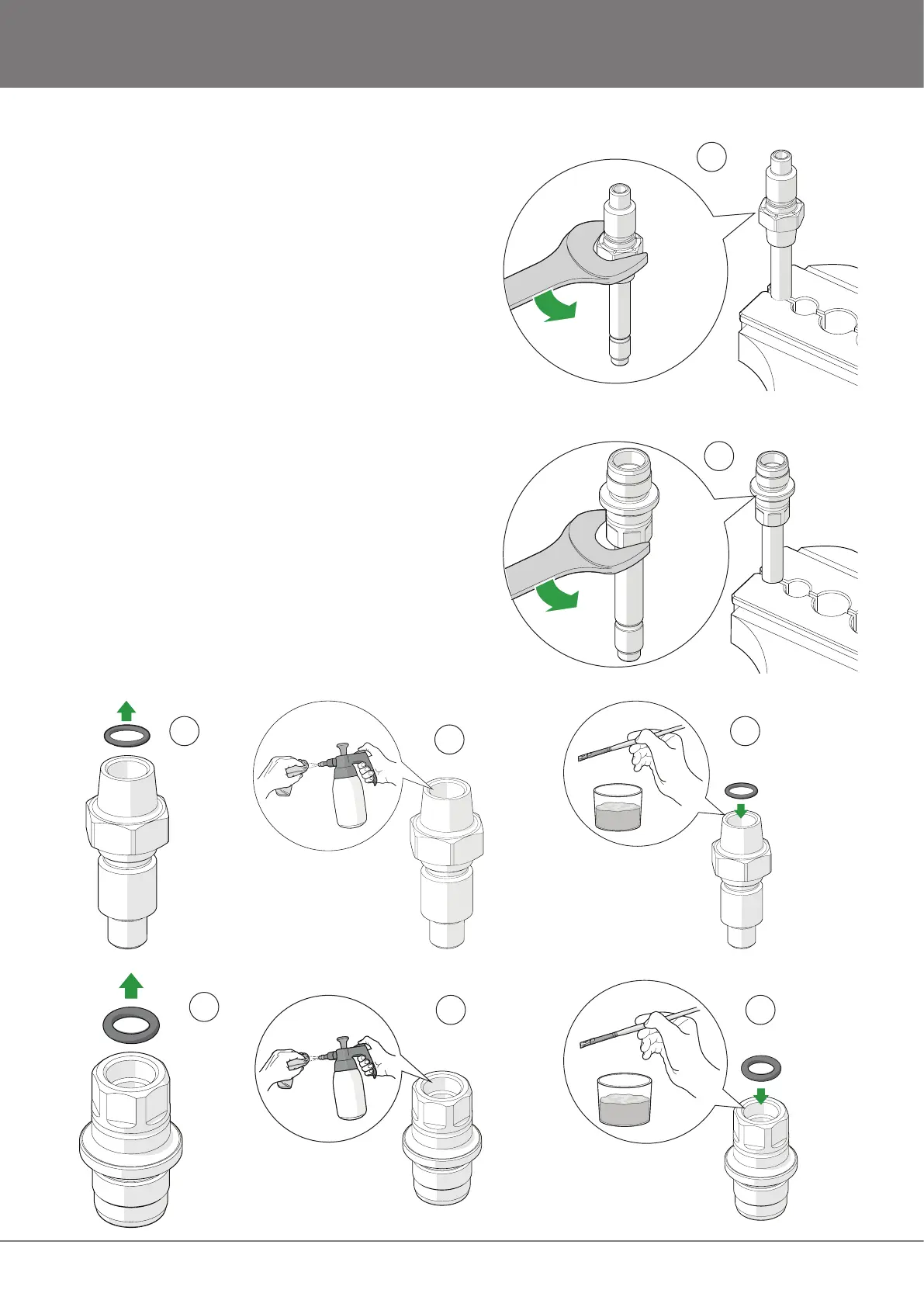

30. Put the shaft assembly in the multi clamp (Ø8) with the base cap
facing upwards and use a 16mm wrench to remove the base cap.
31. Turn the shaft assembly upside down and place it in the multi
clamp with the seal head facing upwards and use a 12mm wrench to
remove the seal head.
32. Remove the old o-ring (00338-39) inside the base cap.
33. Clean the threads inside the base cap using disc brake cleaner
and a paper cloth or rag to remove thread sealant and dirt.
34. Install a new o-ring (00338-39) inside the base cap. Lubricate
the o-ring with assembly grease.
35. Remove the old o-ring (00338-39) inside the seal head.
36. Clean the threads inside the seal head using disc brake cleaner
and a paper cloth or rag to remove thread sealant and dirt.
37. Install a new o-ring (00338-39) inside the seal head. Lubricate
the o-ring with assembly grease.
30
31
32
33
34
35
36 37
