REBUILD AIR SPRING CARTRIDGE

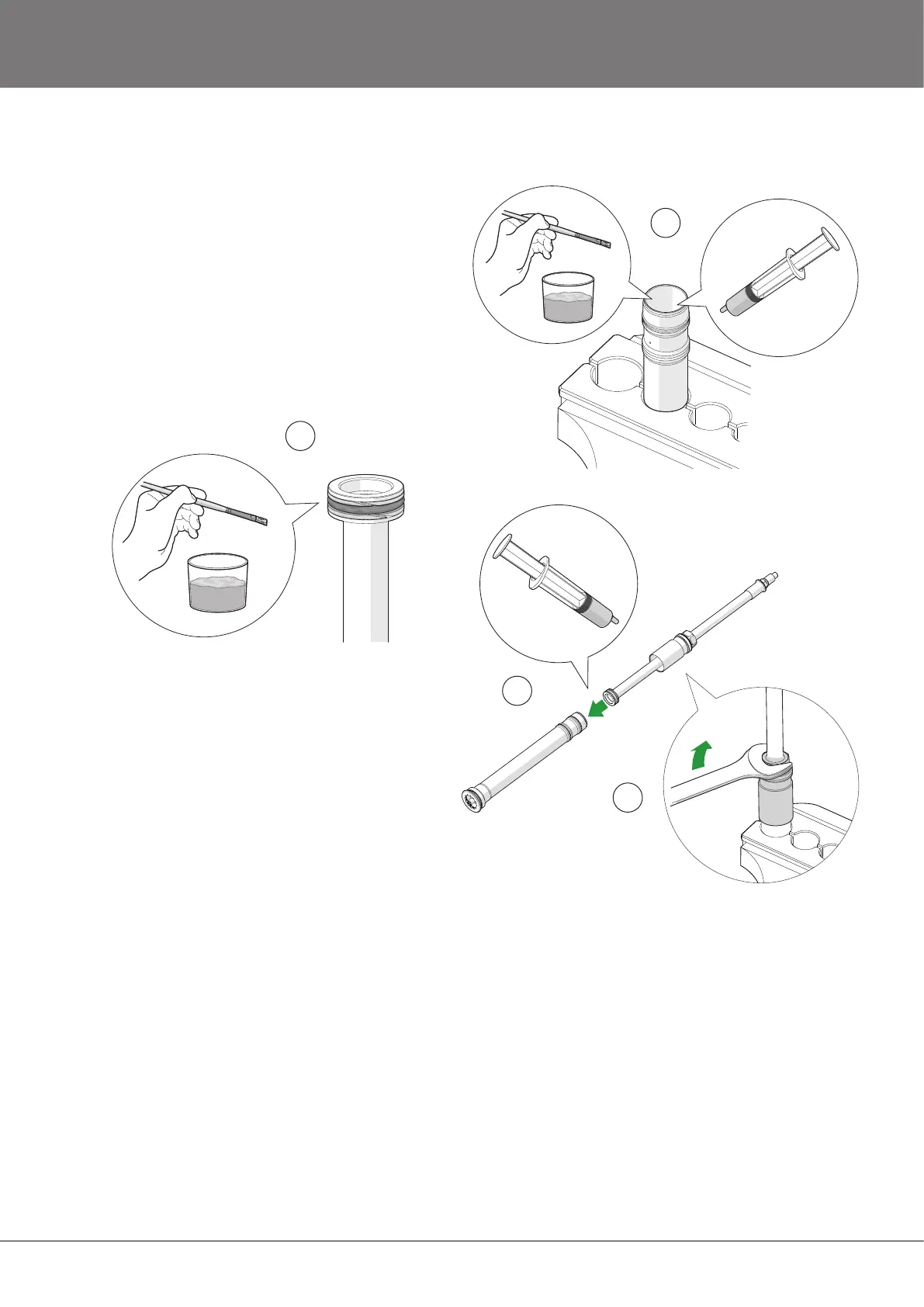

62. Apply 2 ml of function grease at the inside of the cylinder
tube (smeared around). Add 0,5 ml of air spring lubrication uid
distributed on top of the grease.
63. Apply a thin layer of function grease on the o-ring and the back-
up rings on the main piston.
64. Insert main piston in the cylinder tube and add 0,5 ml of air
spring lubrication uid inside the cylinder tube. Slide the seal head
onto the cylinder tube and screw them together hand-tight.
65. Use a 19/24 mm torque wrench to tighten the seal head to
10 Nm.
65
62
63
64
