REBUILD AIR SPRING CARTRIDGE
47
48
49
52

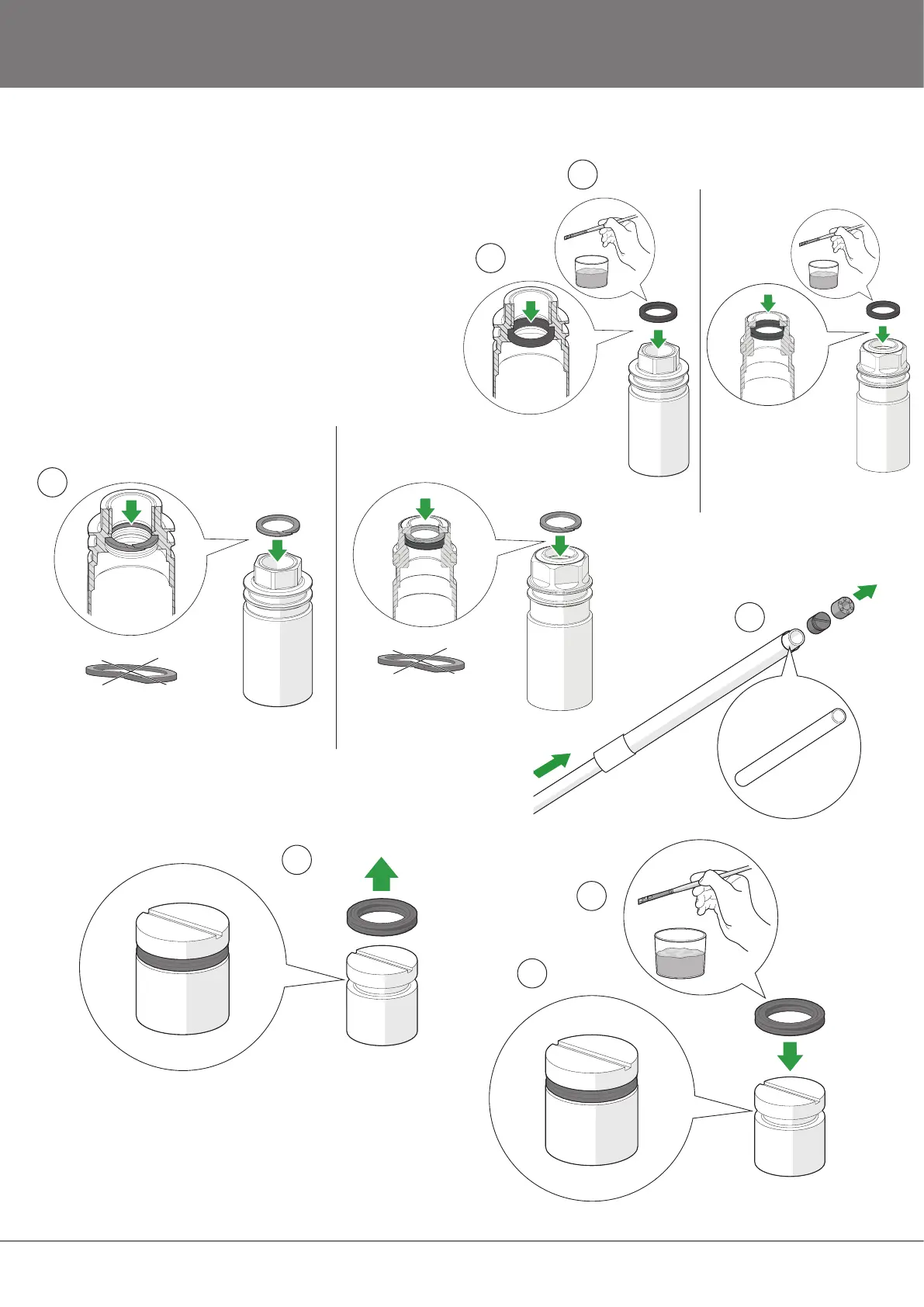

46. Apply function grease on the new x-ring.
47. Install the new x-ring (18639-01) inside the seal head.
48. Install a new backup ring (18641-01) inside the seal head.
49. Remove the third chamber piston and the bump rubber from the
cylinder tube. Stick a long rod or similar in the other end of the cylin
-
der to push them out.
50. Remove the x-ring (18629-02) from the third chamber piston.
51. Apply function grease on the new x-ring.
52. Install the new x-ring (18629-02) on the third chamber piston.
