Ohlins STX22Air - MOUNTING INSTRUCTIONS; Professional Installation Recommendation; Frame Protection During Installation; Pre-Installation Cleaning Advisory

3/8
1

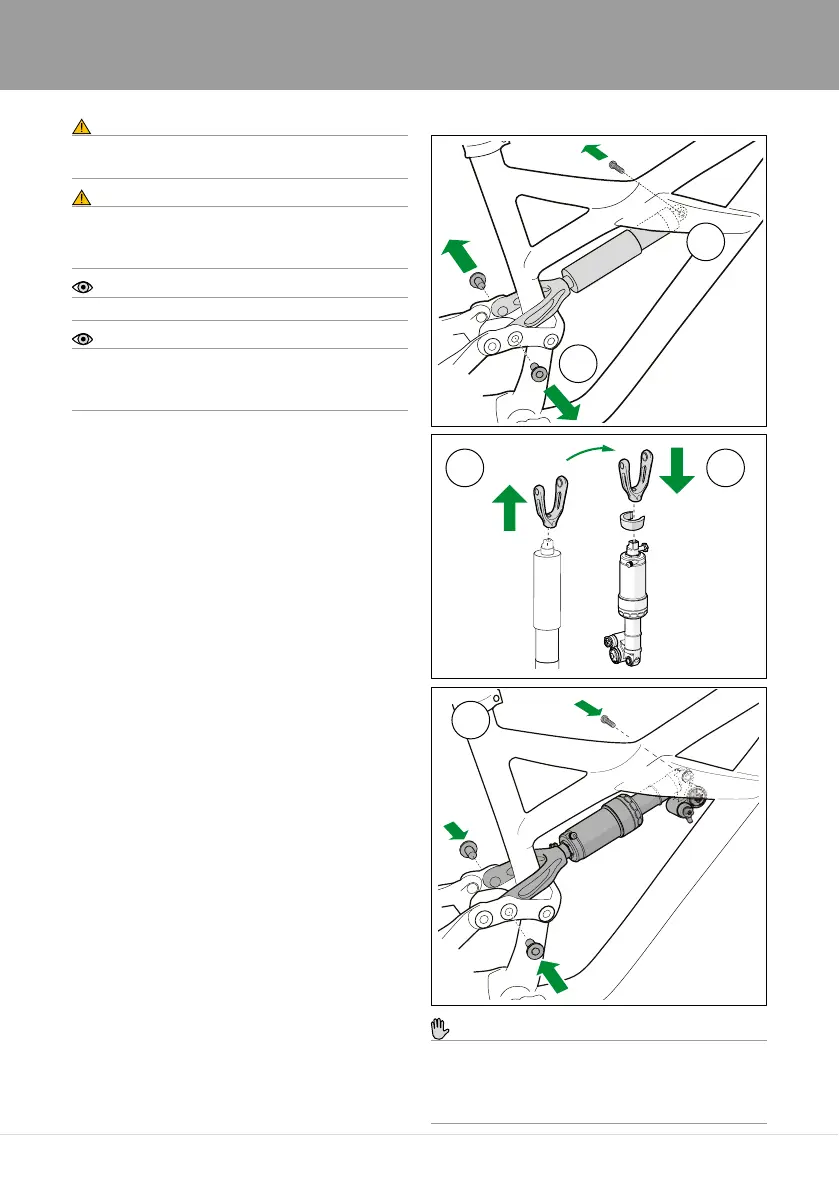

Remove the upper attachment bolt.
2
Remove the two bolts at the yoke.
3
Remove the original shock absorber together
with the yoke in one unit.
4
Place the original shock absorber in a vise
with soft jaws. Remove the shock absorber
from the yoke.
5
Place the Öhlins shock absorber in a vise with
soft jaws. Mount the plastic spacer. Install the
yoke on the Öhlins shock absorber. Tighten
according to the bicycle service manual.
6
Install the shock absorber with yoke on the
bicycle. Do not tighten yet.
7
Place the bicycle on the ground and let the
bicycle’s weight adjust the free play. Tighten
according to the bicycle service manual.
MOUNTING INSTRUCTIONS
Warning!
It is advisable to have an Authorized Specialized
Service Centre install the shock absorber.
Warning!
If the bicycle is mounted in a work stand please make
sure to hold the frame when shock is removed to
prevent damage to paint and (or) nish.
Note!
Before installing this product clean the bicycle thoroughly.
Note!
When working on this product, always see the bicycle
service manual for specic procedures and important
data.
1
2
4 5
6
Caution!
Ensure that all screws are tightened to the correct
torque and that nothing fouls or restricts movement
of the shock absorber when the suspension is fully
compressed or extended.
