SETTING SAG
Setting sag alternative 2:
Manual sag set up
Keep track of your personal settings and it is
easier to adjust your set up after different type
of terrain or to do quick pre-ride control. When
controlling pressures be aware that the pump
takes up to 10 psi when connected. The table
below is a guideline but differs slightly for dif
-
ferent bikes.
Recommended sag
Enduro 17 mm
Stumpjumper, Rhyme 12,5 mm
Start pressures
Rider weight 29 650B
60 kg 140 psi 160 psi
70 kg 150 psi 170 psi
80 kg 160 psi 180 psi
90 kg 170 psi 190 psi
100 kg 180 psi 200 psi

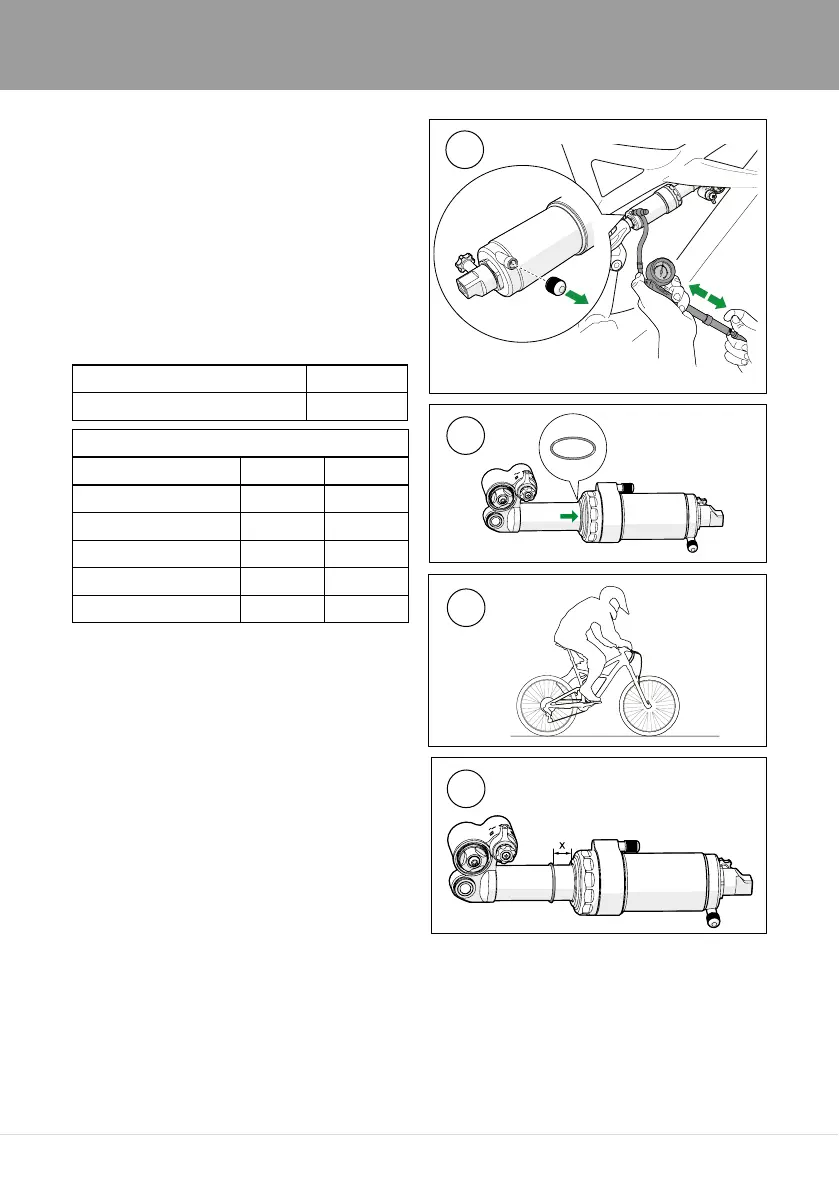

1
Use a shock absorber pump to ll up the
shock absorber to the recommended air pres
-
sure according to the table above.
2
Cycle the shock a couple of times to even out
the pressure between the air chambers.
3
Set the O-ring (sag indicator) at the position
closest to the air sleeve.
4
Dressed in full riding gear assume normal rid
-
ing position on the bicycle.
5
Step off the bicycle and measure the distance
the O-ring (sag indicator) has moved.
General recommendations:
• too little sag: release air
• too much sag: ll up with more air
1
4
5
3
General recommendations:
Heavy hard charging rider may require less
sag while a smoother rider may benet from
more sag. If you have any questions, contact an
Authorized Specialized Service Centre for advice.
