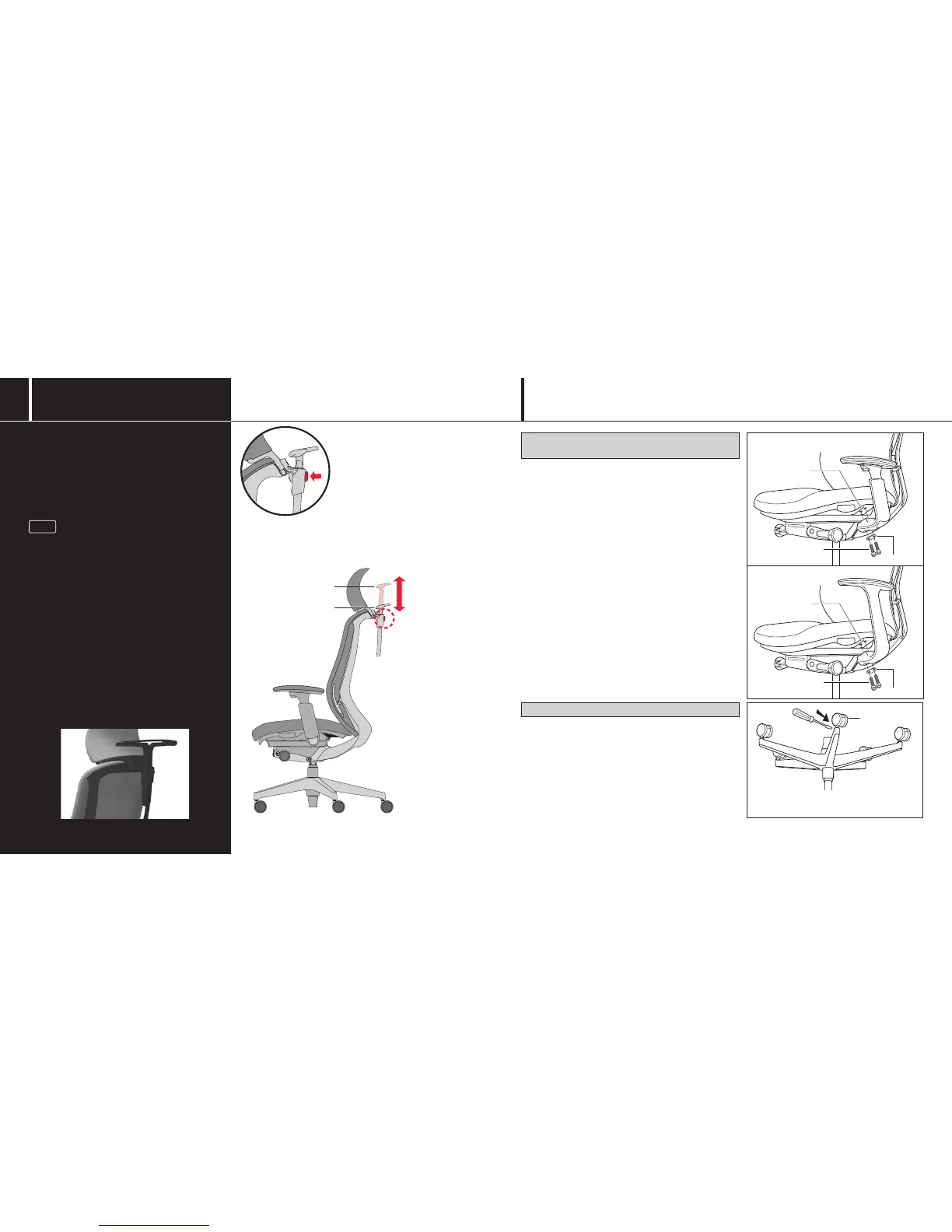

Part attachment and replacement
Operation guide
In use
Hanger (option) height adjustment
Adjust the Hanger by pushing the button. The Hanger
can be moved up and down within a range of 120
mm (4 3/4”). The Hanger can also be set in a position
where it is out of the way when not in use, allowing for
a clean appearance.
If you use the Hanger with the low-backrest seat,
adjust the Hanger to the highest position.
Note
Before using this product, make sure that the position
is securely locked after making the adjustment.
mm (inch)
Adjustable arm (option)/Design arm (option)
attachment and replacement
Attach the arms to the frame arm attachment locations by
using hexagon socket bolts (M8 x 25L) and washers.
Tools: 6mm hexagonal wrench (Allen wrench)
①
①
Washer
Caster attachment and replacement
Casters are designed as a single unit with shafts and are
attached by inserting the shafts.
(1) Turn the chair upside down.
(2) Holding the caster, pull the caster strongly to remove.
(3) Attach a caster by inserting the tip of the caster shaft into
the chair leg.
(4) Push the caster to insert fully.
If the caster shaft is difficult to insert, use a wooden hammer
or other appropriate tool to lightly tap on the caster to
insert. If the caster is struck too strongly, it may damage the
caster, so exercise caution.
Caster
120mm
(4 3/4”)
Not in use
Hexagon socket bolt
(M8 x 25L)
Hexagon socket bolt
(M8 x 25L)
Frame
Adjustable arm
Design arm
Frame
Washer
If the caster shaft is difficult to remove, insert
a flathead screwdriver between the leg and
caster shaft.
