15 16
Part attachment and replacement

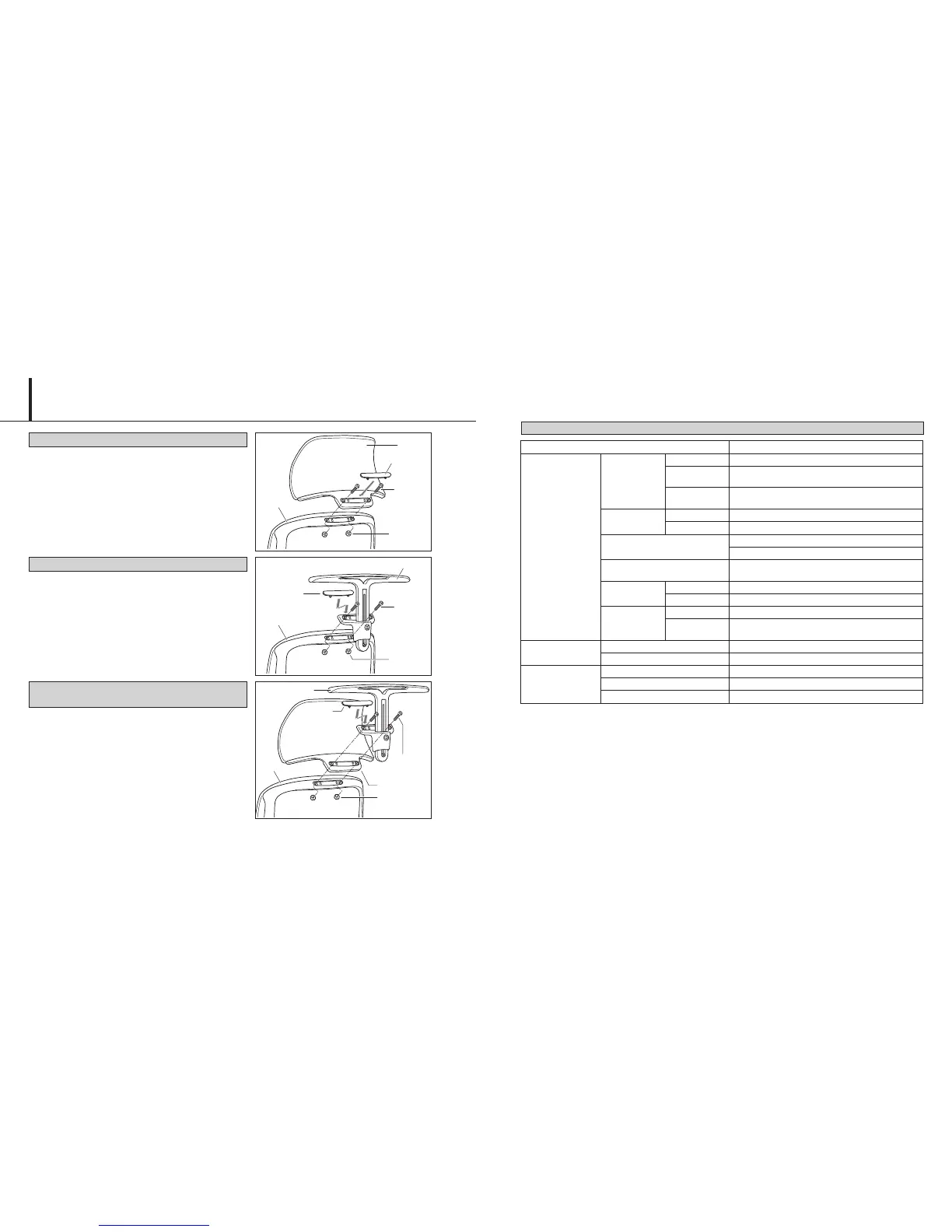

Headrest (option) attachment and replacement
Hanger (option) attachment and replacement
Headrest (option) and Hanger (option) attachment
and replacement
(1) Attach the Headrest on the backside of the backrest by
securing it with hexagon socket bolts (M6 x 25L) and
hexagon nuts (M6).
(2) Attach the cover on the attachment by using the tabs.
Make sure that the Headrest is secured completely before
using.
Tools: 5mm hexagonal wrench (Allen wrench)
(1) Attach the Hanger on the backside of the backrest by
securing it with hexagon socket bolts (M6 x 20L) and
hexagon nuts (M6).
(2) Attach the cover on the attachment by using the tabs.
Make sure that the Hanger is secured completely before
using.
Tools: 5mm hexagonal wrench (Allen wrench)
The Headrest and Hanger can be attached at the same time
as shown in the illustration.
Attach the Headrest first, and then attach the Hanger. Then,
attach the cover on the attachment by using the tabs.
To remove, perform the procedure above in the reverse
order.
Make sure that the Headrest and Hanger are secured
completely before using.
Tools: 5mm hexagonal wrench (Allen wrench)
①
②
①
②
②
①
Hexagon
nut (M6)
Hexagon
nut (M6)
Hexagon
socket
bolt (M6 x
25L)
Hexagon
socket
bolt (M6 x
20L)
Hexagon
socket bolt
(M6 x 35L)
Backrest
Backrest
Backrest
Headrest
Headrest
Hexagon
nut (M6)
Hanger
Hanger
Cover
Cover
Cover
Materials
Part Materials
Structural parts
Backrest
Frame Glass-reinforced polyamide >PA-GF<
Frame for
mesh
Polyamide >PA<
Inner shell for
cushion
Polyamide >PA<
Seat
Inner shell Polypropylene >PP<
Frame Metal (steel)
Support base
Glass-reinforced polyamide >PA-GF<
Metal (aluminum) >ADC<
Legs
Metal (aluminum) >ADC< or Glass-reinforced
polyamide >PA-GF<
Adjustable
arm
Pad Polyurethane >TPU<
Body Glass-reinforced polyamide >PA-GF<
Headrest
Inner shell Polypropylene >PP<
Attachment
part
Glass-reinforced polyamide >PA-GF<
Covering material
Mesh Polyester
Cloth Polyester
Cushion material
Seat Polyurethane >PUR<
Backrest (Cushion type) Polyester
Headrest Polyester
> XX < indicates the materials of the parts. This information is useful for recycling.
Please understand that product specifications might change without prior notification due to improvements made
to the product.
