Parameters:
1. Input voltage: AC 110V-240V;
2. Max. Charging power: 1200W*2;
3. Display mode: LCD;
4. Number of battery series supported: 12S.13S.14S;
5. Weight: Approx. 5.50kg
6. Dimensions: 340mm*195mm*145mm
Operation
1. Turn on the AC power supply and make sure that the input wire is plugged tightly. The rear
switch is set to position 0 (OFF), at this time, the charger does not work. Turn the rear switch to
position 1 to start the charger and the LCD shows the following information.

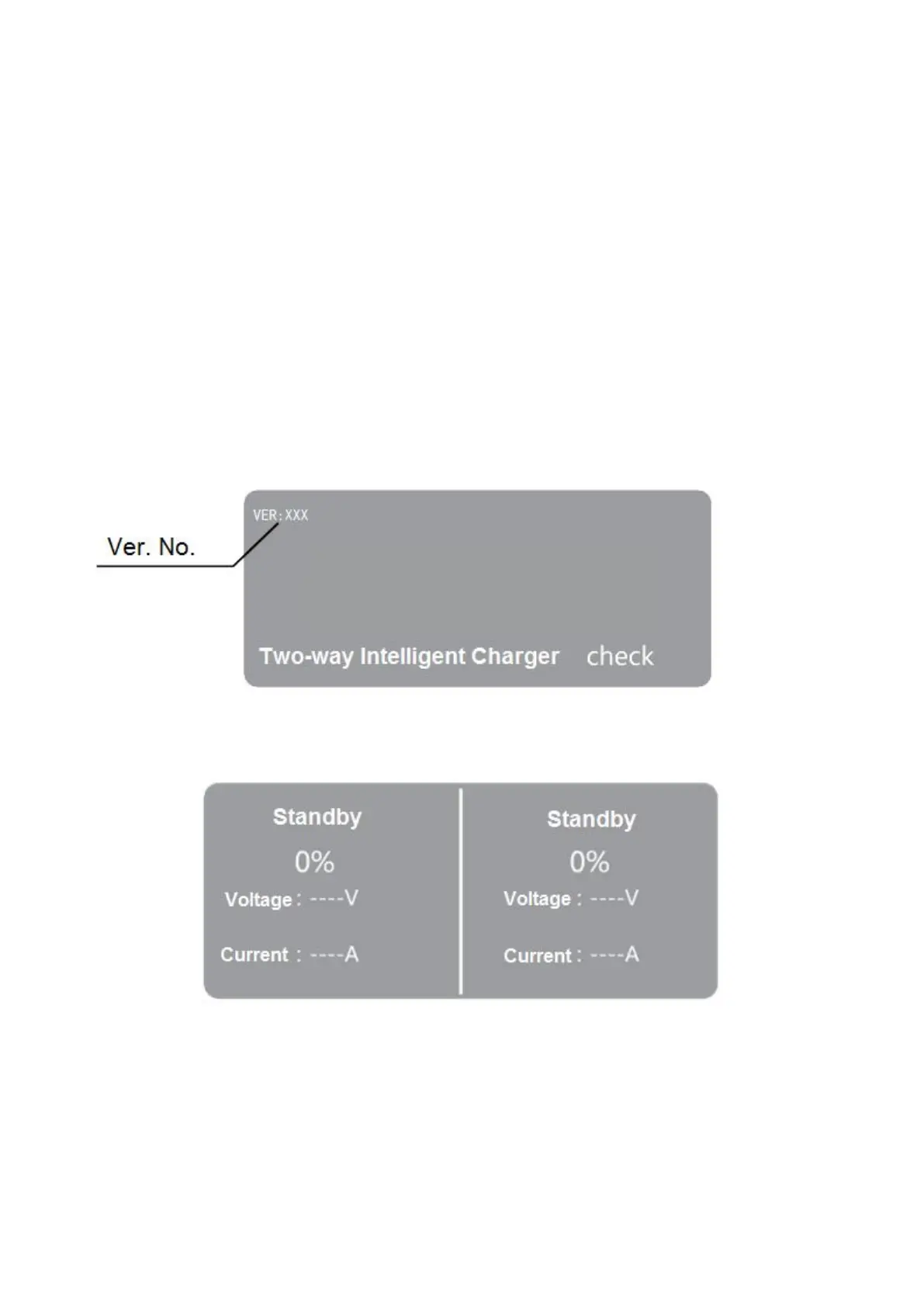

Start Screen
Start Home Screen
