2. Operational explanation
44983601TH Rev.1
2-9 /

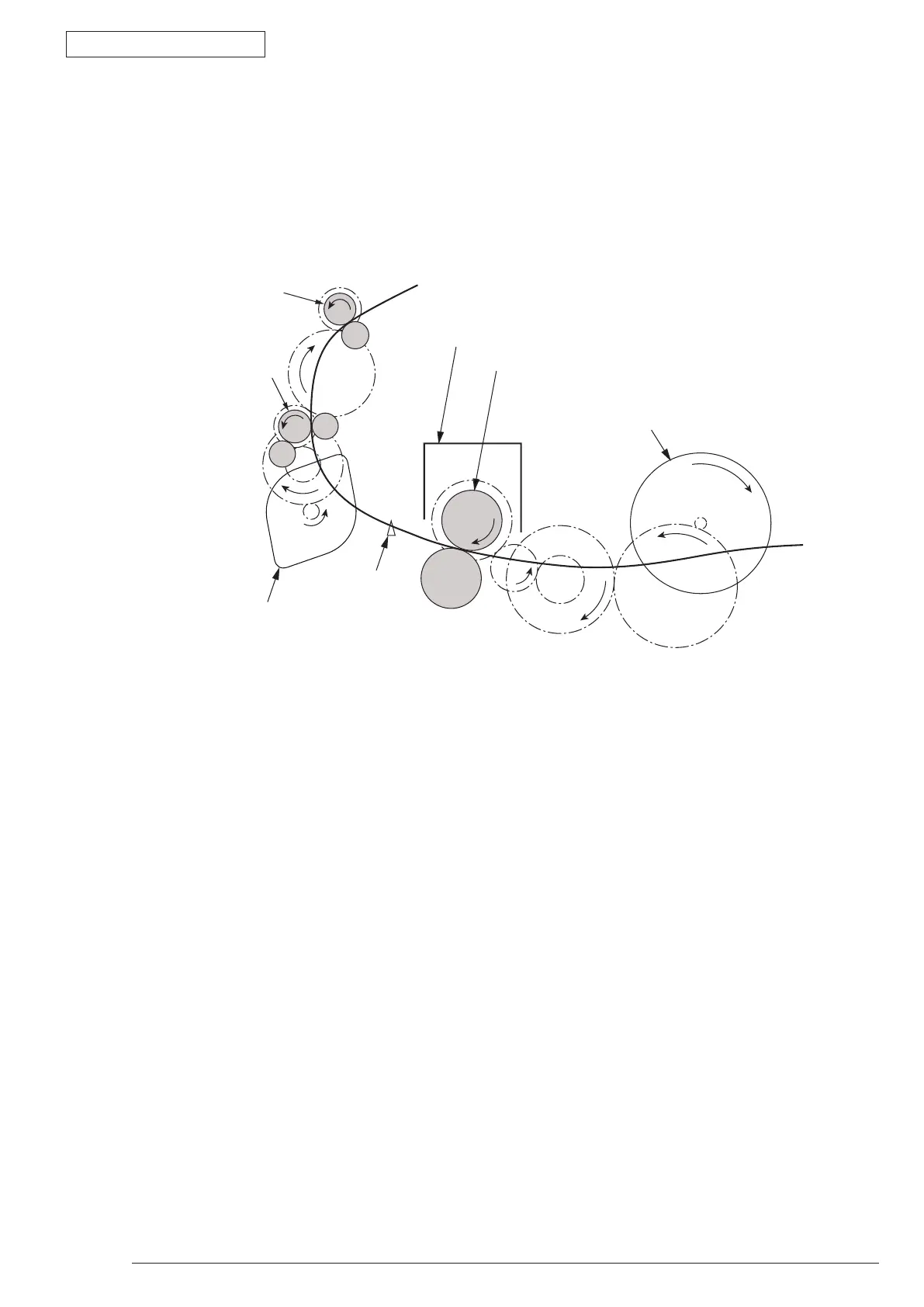

(3) Fuser unit and paper ejecting
1. The fuser unit is driven by the DC motor. After the DC motor starts running (clockwise), the heat roller
starts rotating.
2. Simultaneously the eject motor starts running (counterclockwise), and then the eject roller starts
rotating and ejects paper.
DC motor
(Clockwise rotation)
Eject motor
(Counterclockwise rotation)
Fuser unit
Eject roller
Heat roller
Ejecting
sensor lever
