3. Parts replacement
44983601TH Rev.1
3-8 /

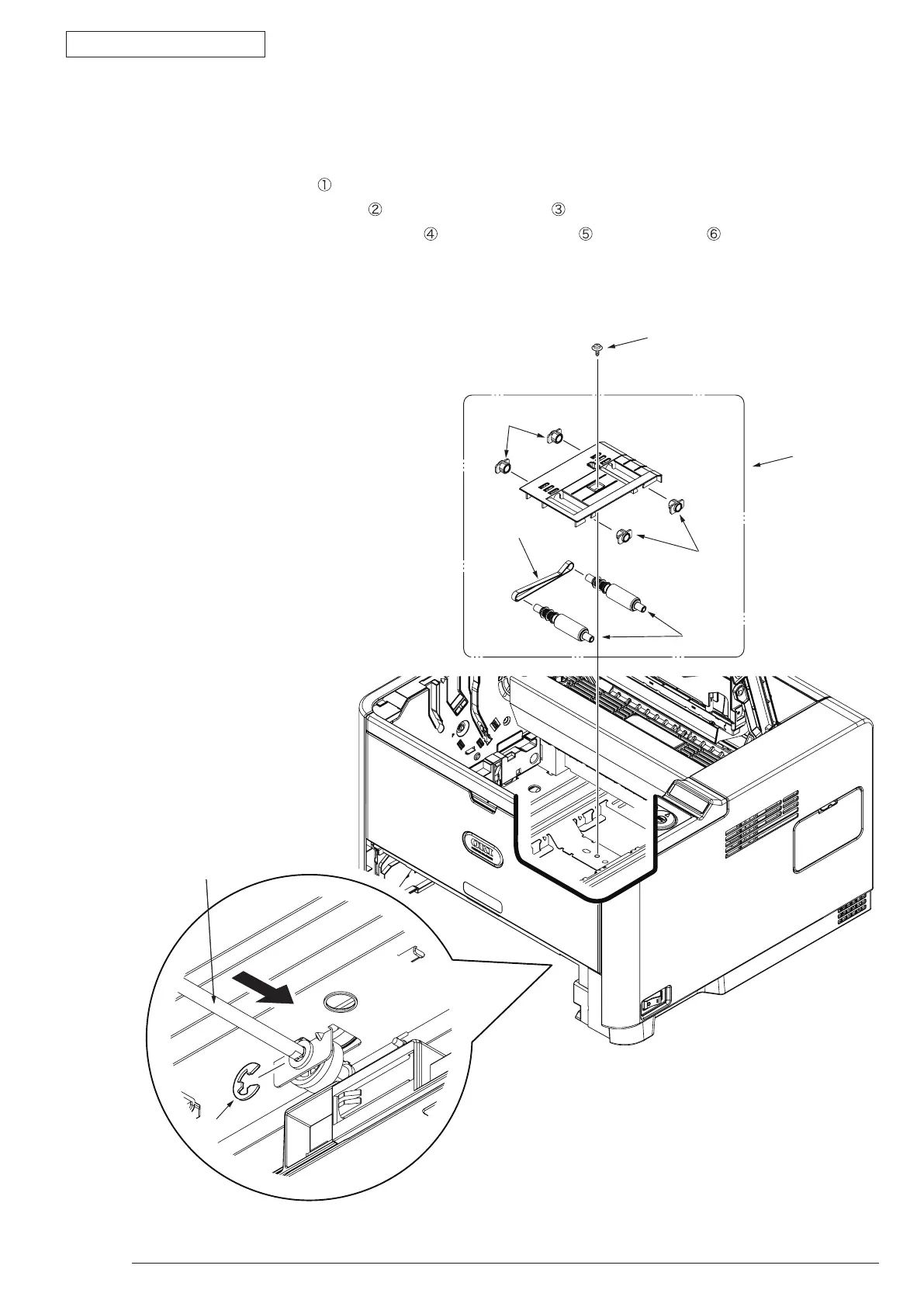

3.3.3 Duplex Belt
(1) Take out the Frame-Assy-TR. (Refer to 3.3.2)
(2) Remove the cassette and set the printer unit on its right side.
(3) Remove the E-ring
and slide the Shaft-Dup-Clutch in the direction of the arrow.
(4) Remove the screw (Silver)
and Frame-Duplex-Assy .
(5) Remove the four pieces of Bearing
, Roller-Feed-Duplex and Duplex-Belt .
(6) Installing is performed by the inverse procedure with removing.
Shaft-Dup-Clutch
①
④
⑤
②
③
④
⑥
To Next Page
