3. Parts replacement
44983601TH Rev.1
3-20 /

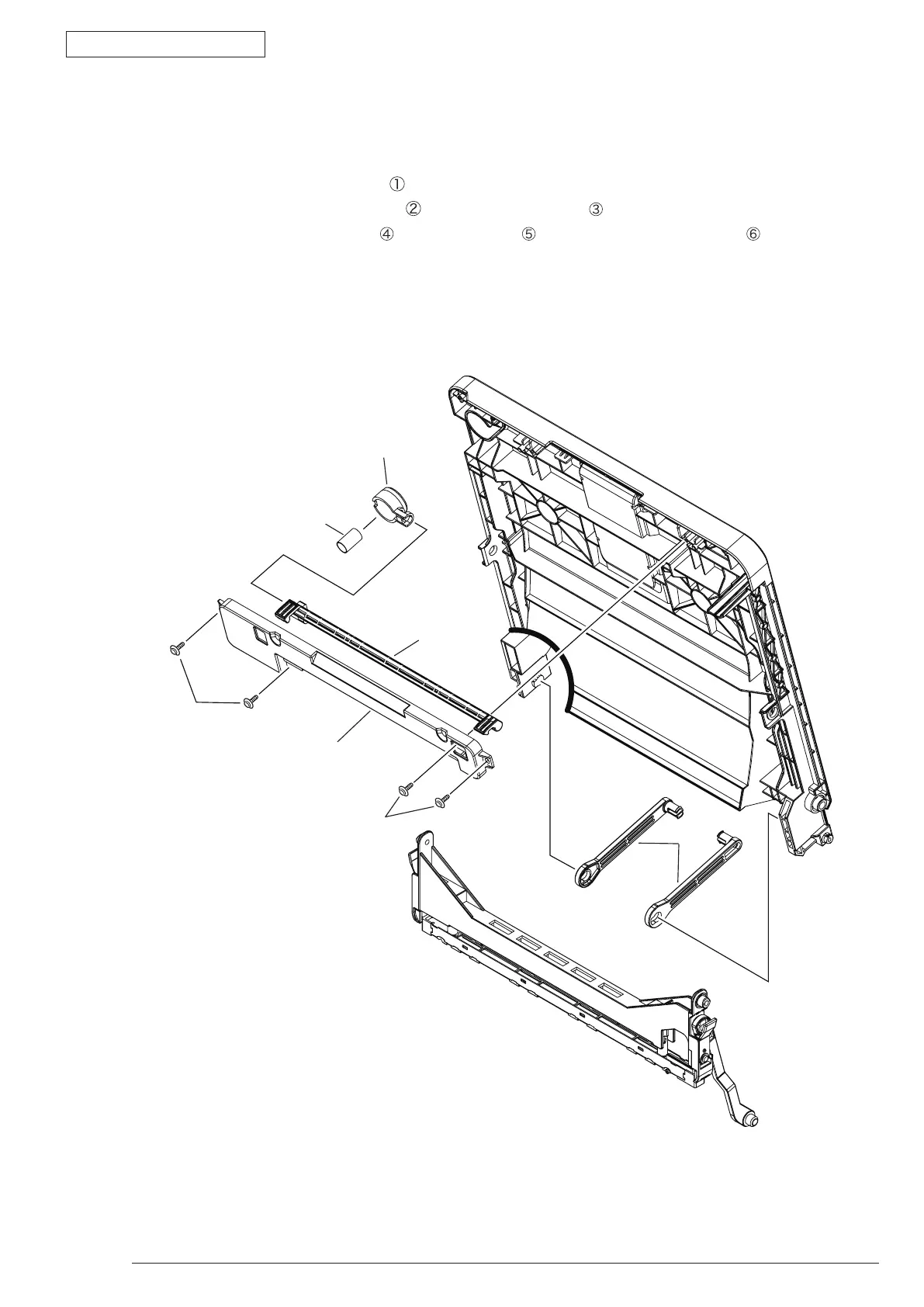

3.3.14 Stacker Cover
(1) Remove the Cover Assy Stacker. (Refer to 3.3.13)
(2) Remove the LED Head. (Refer to 3.3.1)
(3) Remove the Lever-Link-Fuser
(on both sides).
(4) Remove the four screws (Black)
, remove the Cover-Lever .
(5) Remove the Lever-Lock-Top
, Lever-Lock-Button
. Remove the Spring-Lever-Top
.
(6) Installing is performed by the reverse procedure with removing.
②
⑥
⑤
①
②
③
④
To Next Page
