3. Parts replacement
44983601TH Rev.1
3-22 /

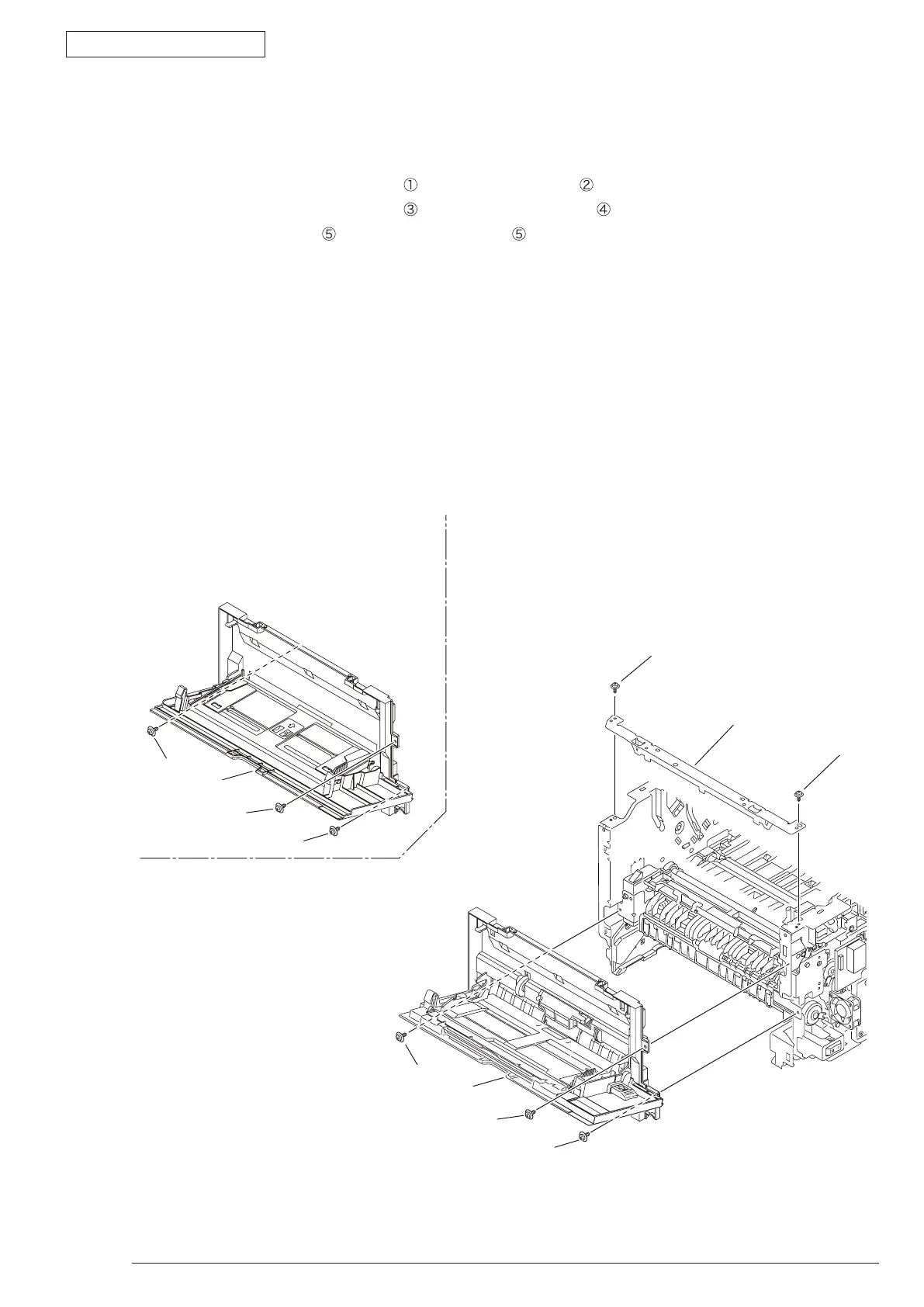

3.3.16 MPT Assy , Manual Assy
(1) Remove the Cover-Side-R and Cover–Side-L. (Refer to 3.3.4 / 3.3.5)
(2) Remove the Cover-Assy-OPE. (Refer to 3.3.11)
(3) Remove the two screws (Silver)
. Remove the
Plate-Front .
(4) Remove the two screws (Silver)
. Remove the
screw (Black) .
(5) Remove MPT Assy
(of B431) or Manual Assy (of B401/B411).
(6) Installing is performed by the inverse procedure with removing.
(Note on removing / installing)
1. Beware of not to touch the DC motor inattentively (Do not rotate motor).
In case of B401/B411
Manual Assy
In case of B431
MPT Assy
①
①
②
③
④
⑤
③
③
④
⑤
③
