3. Parts replacement
44983601TH Rev.1
3-24 /

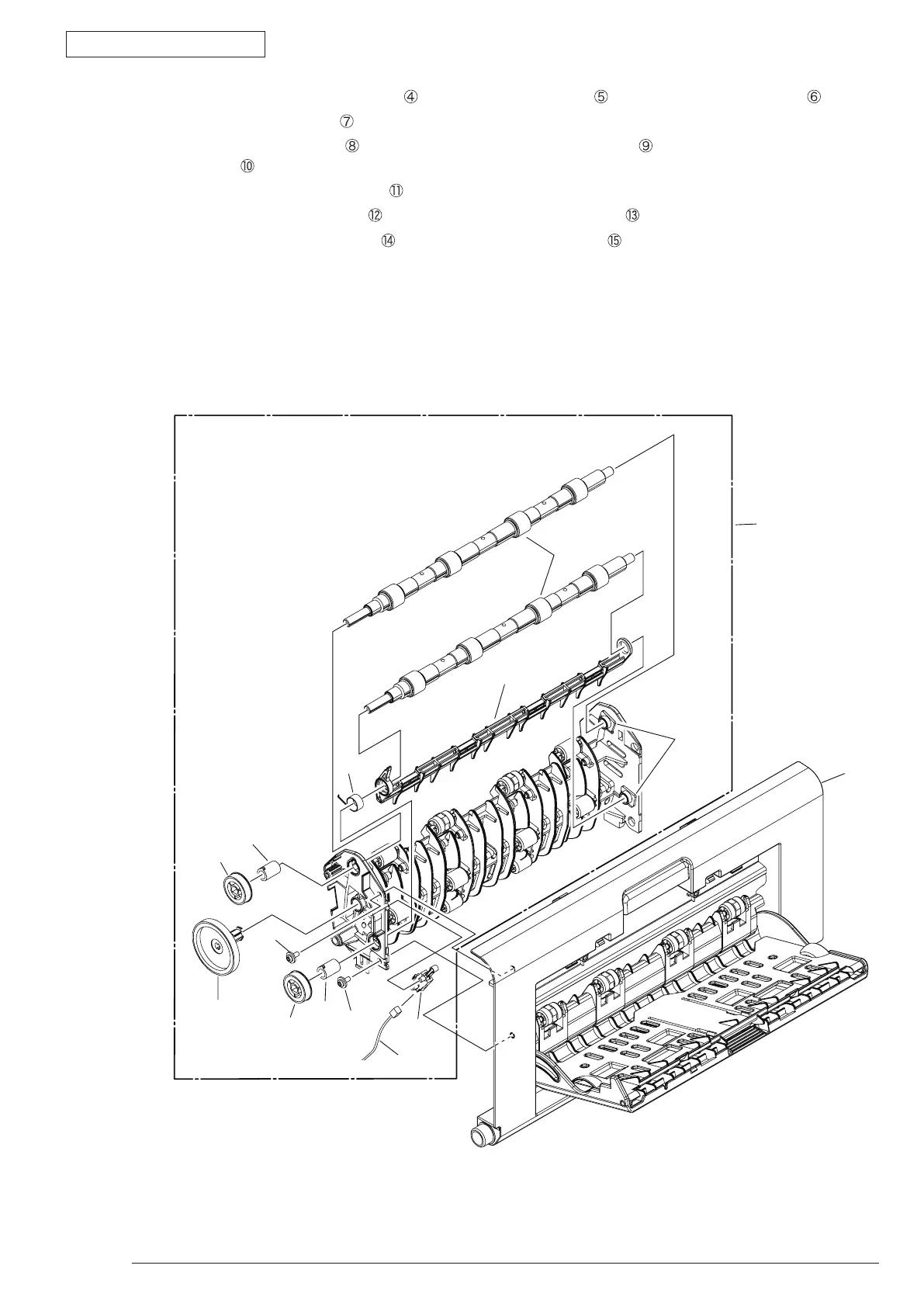

(6) Remove the two screws (Black) and separate Cover-Rear and Guide-Eject-Upper-Assy .
(7) Remove the Gear-Idle
.
(8) Remove the Gear-Exit
(2 places), remove the Bearing-Eject_R
(2 places). Remove the Bearing-
Feeder
(2 places).
(9) Remove the Shaft-Assy-Eject
(2 places).
(10) Remove the Separator-FU
. Remove the Spring-Separator_FU
.
(11) Remove the Stacker-Sensor
.
Remove the Cable-Sensor-FU
.
(12) Installing is performed by the inverse procedure with removing.
(Note on removing / installing)
1. Beware of not to touch the DC motor inattentively (Do not rotate motor).
⑥
④
④
⑤
⑦
⑫
⑭
⑬
⑪
⑨
⑨
⑧
⑧
⑩
⑮
