3. Parts replacement
44983601TH Rev.1
3-31 /

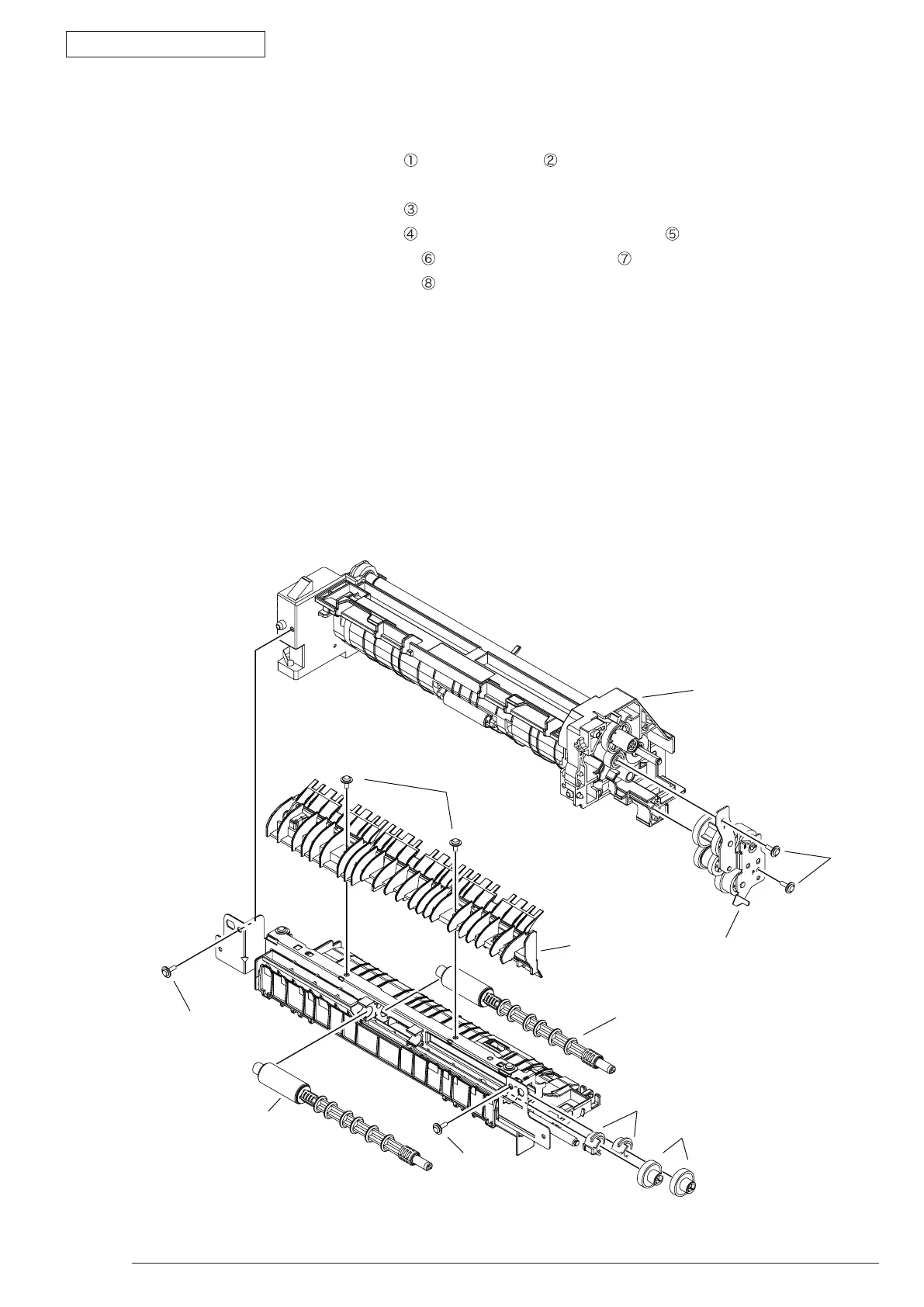

3.3.24 Roller Feed Assy
(1) Separate the Front Assy. (Refer to 3.3.20)
(2) Remove the two screws (Black)
and Plate-Feed-B .
(Be careful not to lose the gear that is removed with the plate.)
(3) Remove the two screws (Black)
.
Separate
the Regist Assy.
(4) Remove the two screws (Silver) . Remove the Frame-Hopping-Upper .
(5) Remove the two Gear-Roller-Feed
. Remove the two Bush-Feed .
(6) Remove the two Roller-Feed-Assy
.
(7) Installing is performed by the inverse procedure with removing.
(Note on removing / installing)
1. Beware of not to touch the DC motor inattentively (Do not rotate motor).
①
②
③
③
④
⑤
⑥
⑦
⑧
⑧
Regist Assy
