6. Procedures for Repairing
Oki Data CONFIDENTIAL
44983601TH Rev.1
6-25 /

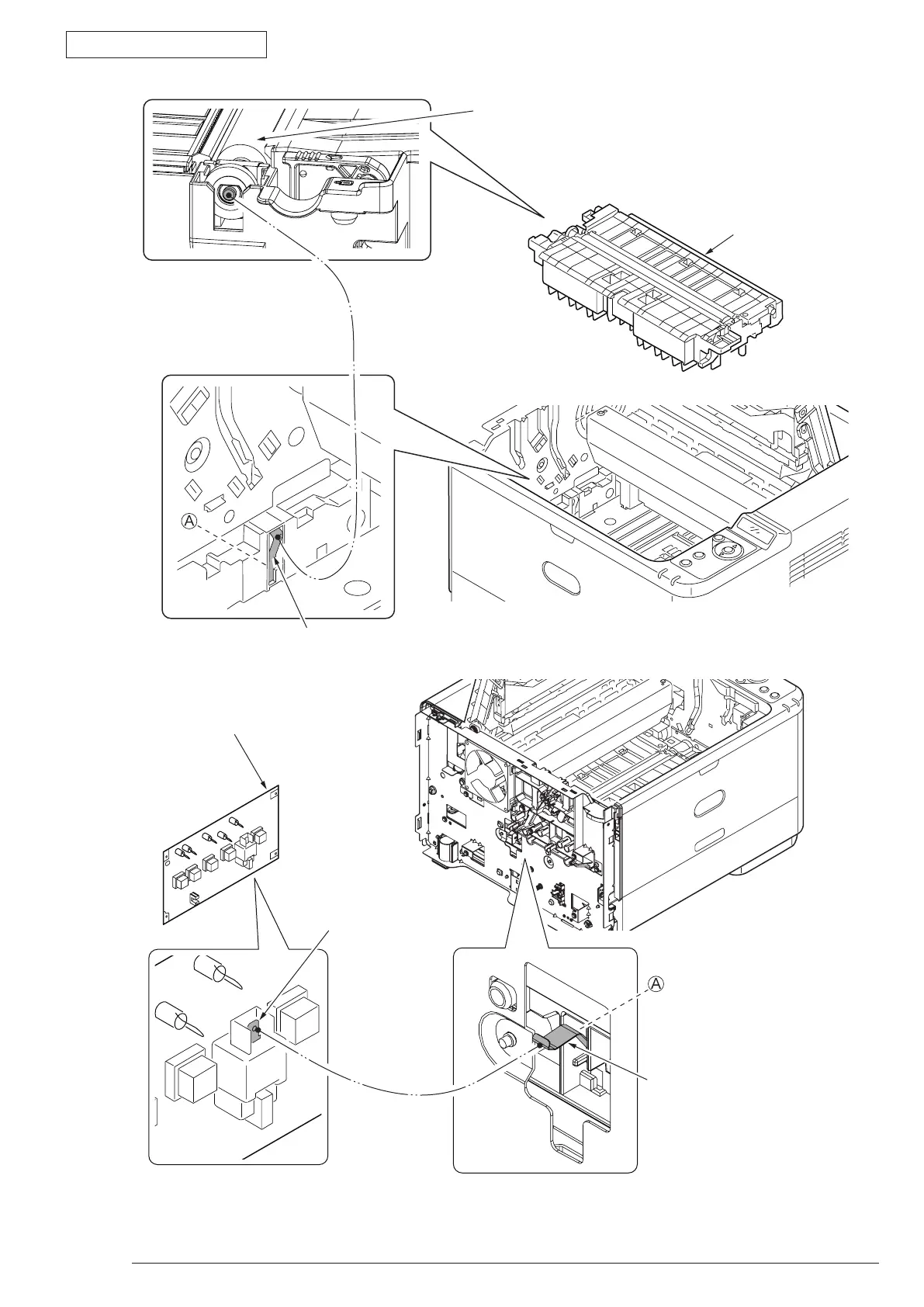

Figure 6-4
Frame-Assy-TR
Transfer roller
Contact plate for transfer
Contact plate for transfer
High voltage power supply board
TR terminal
