1 Overview
1.1 Function
The extended paper feed unit is installed under the printer. the device performs the auto paper feed by
the operation of the pulse motor (hopping) to control a signal from the printer.
The main function is as follows:
• Availablepaper:
[Paper Type]
• Standardpaper:(Reamweight55to105kg)A4,A5,B5,Custom,LETTER,Executive,LEGAL13,
LEGAL13.5,LEGAL14,16K
  *Tthecustomis148to215.9mmforwidthand210to355.6mmforlength.
[Weight/Thickness]
• Standardpaper(Reamweight55to105kg)
1.2 ExteriorandPartsName

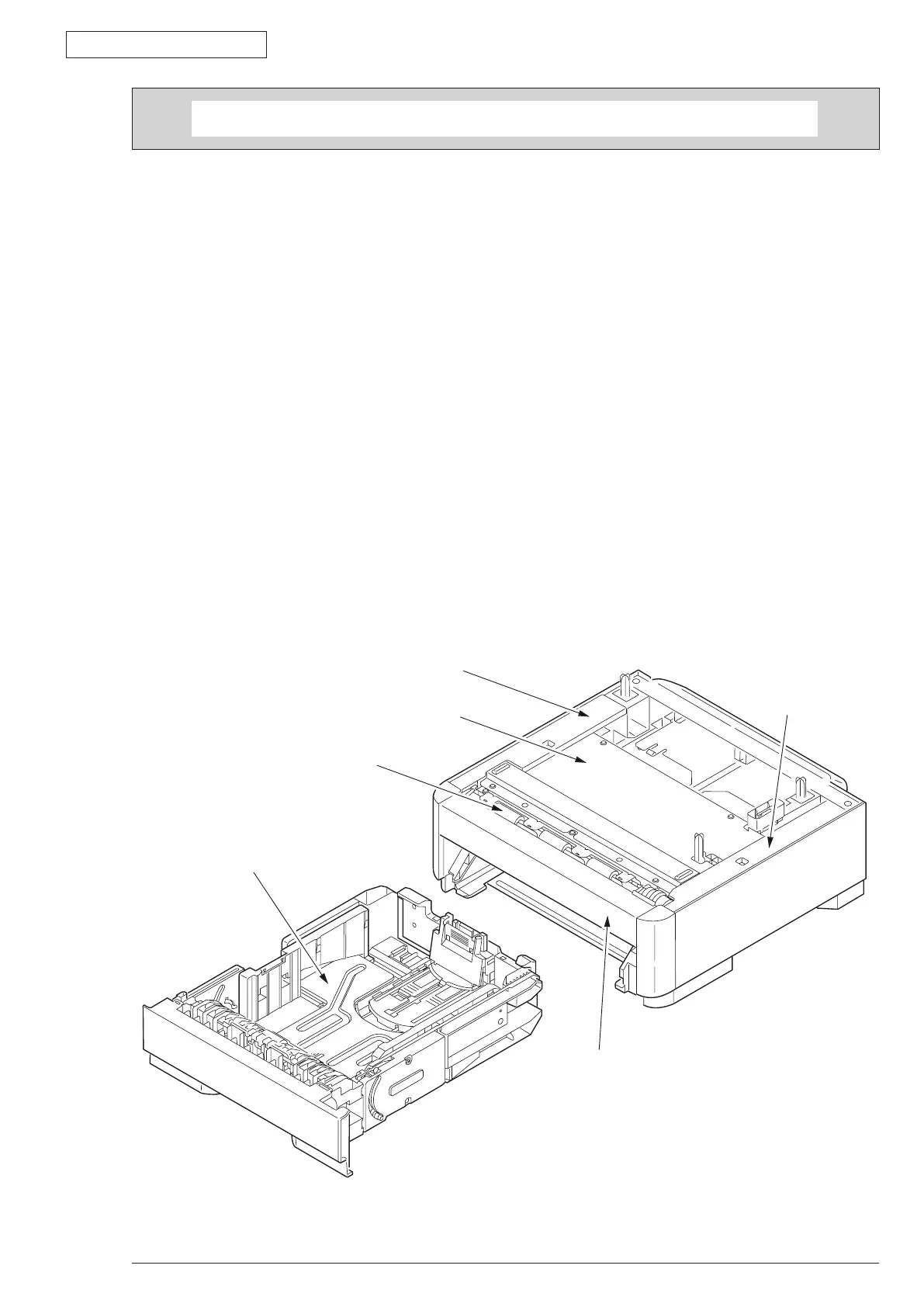

Figure.1-1ExteriorandPartsName
Plate-Recieve
Roller-Feed
Plate-Top
Cover-Blind-L
Cover-Blind-R
Cover-Front
