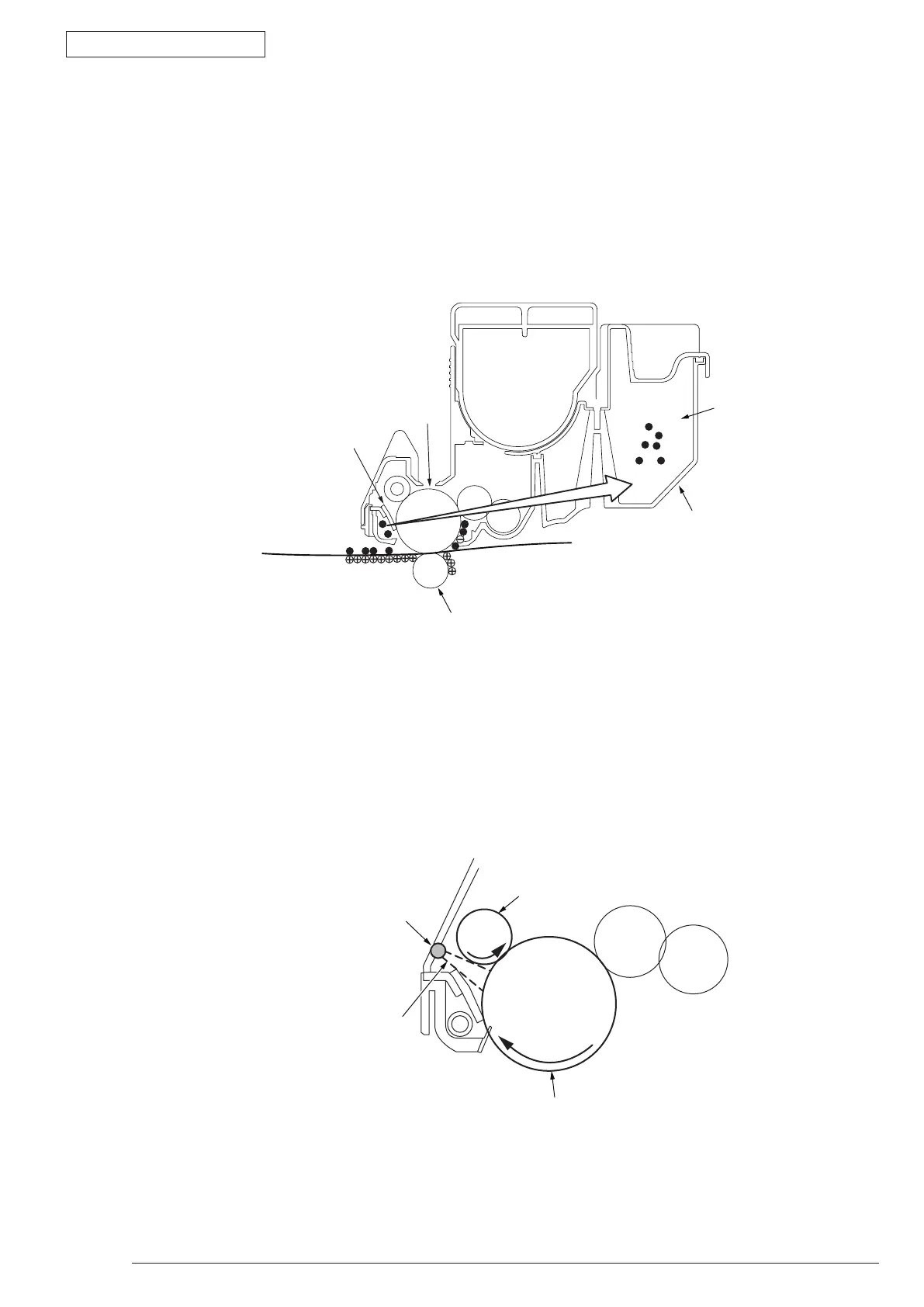

6. Drum cleaning
After completion of transfer, the toner remaining on the image drum is scraped off by the cleaning
blade. As a result of this, the surface of the image drum is cleaned, and the remaining toner that has
been scraped off is collected as waste toner in a waste toner area.
Transfer roller
ID Unit
Waste toner area
Image drum
Cleaning blade
7. Static elimination
After completing transfer, the image drum is illuminated with its surface to decay static charge of its
surface.
Light guide part for
electricity-removing light
Charging roller
OPC drum
Electricity-removing
light
