3.3.4 Cover-Side-R
(1) Remove the cassette.
(2) Open MPT, the Cover-Assy-Stacker and the Cover-Assy-Rear.
(3) Remove the screw (Silver)
.

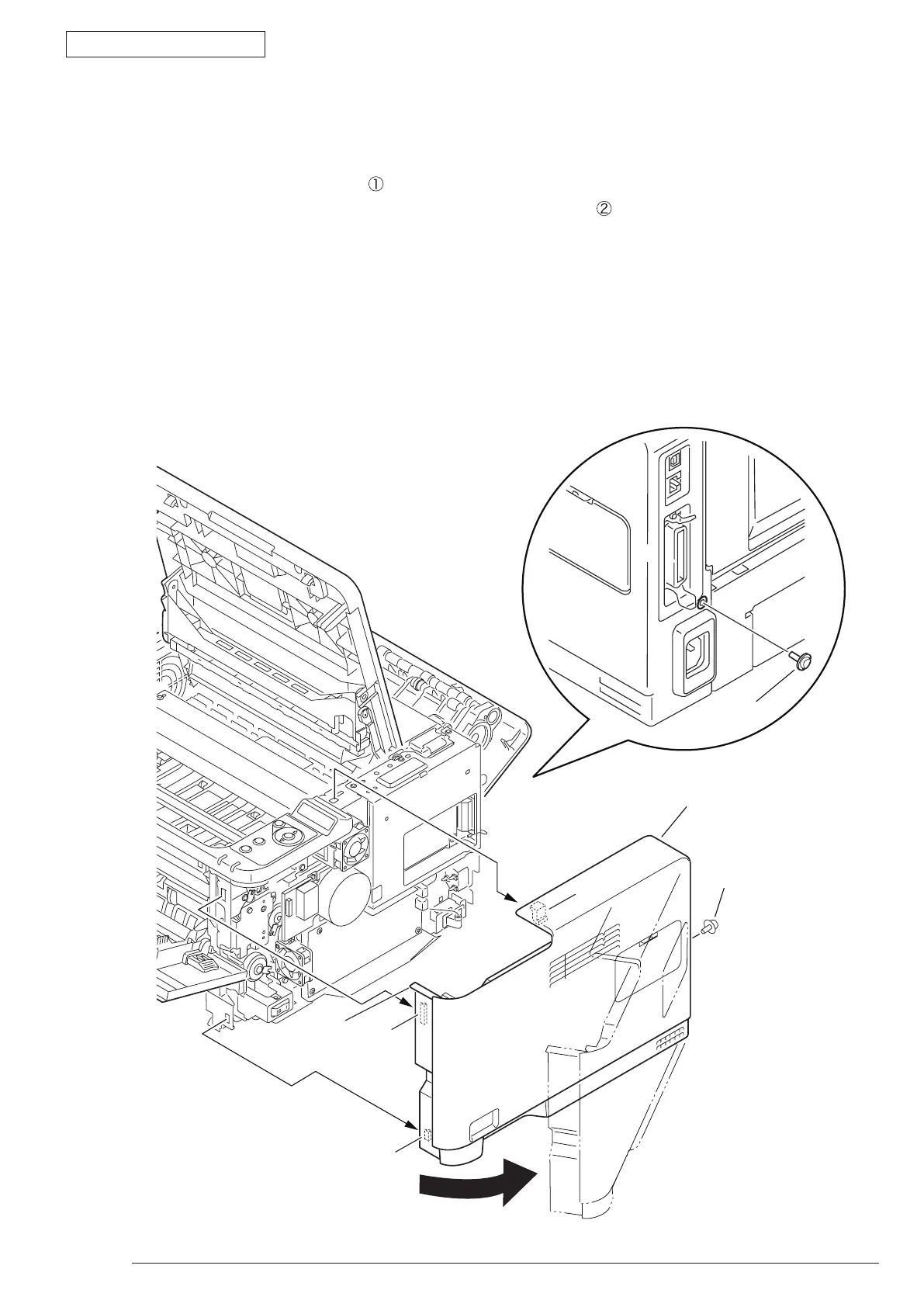

(4) Disengage the four tabs (a to d) and remove Cover-Side-R
by opening it from the front side of the
printer in the direction of the arrow.
(5) Installing is performed by the inverse procedure with removing.
(Note on removing / installing)
1. Beware of not to touch the DC motor inattentively (Do not rotate motor).
