Oki Data CONFIDENTIAL
3. Parts replacement
44983601TH Rev.1
3-23 /

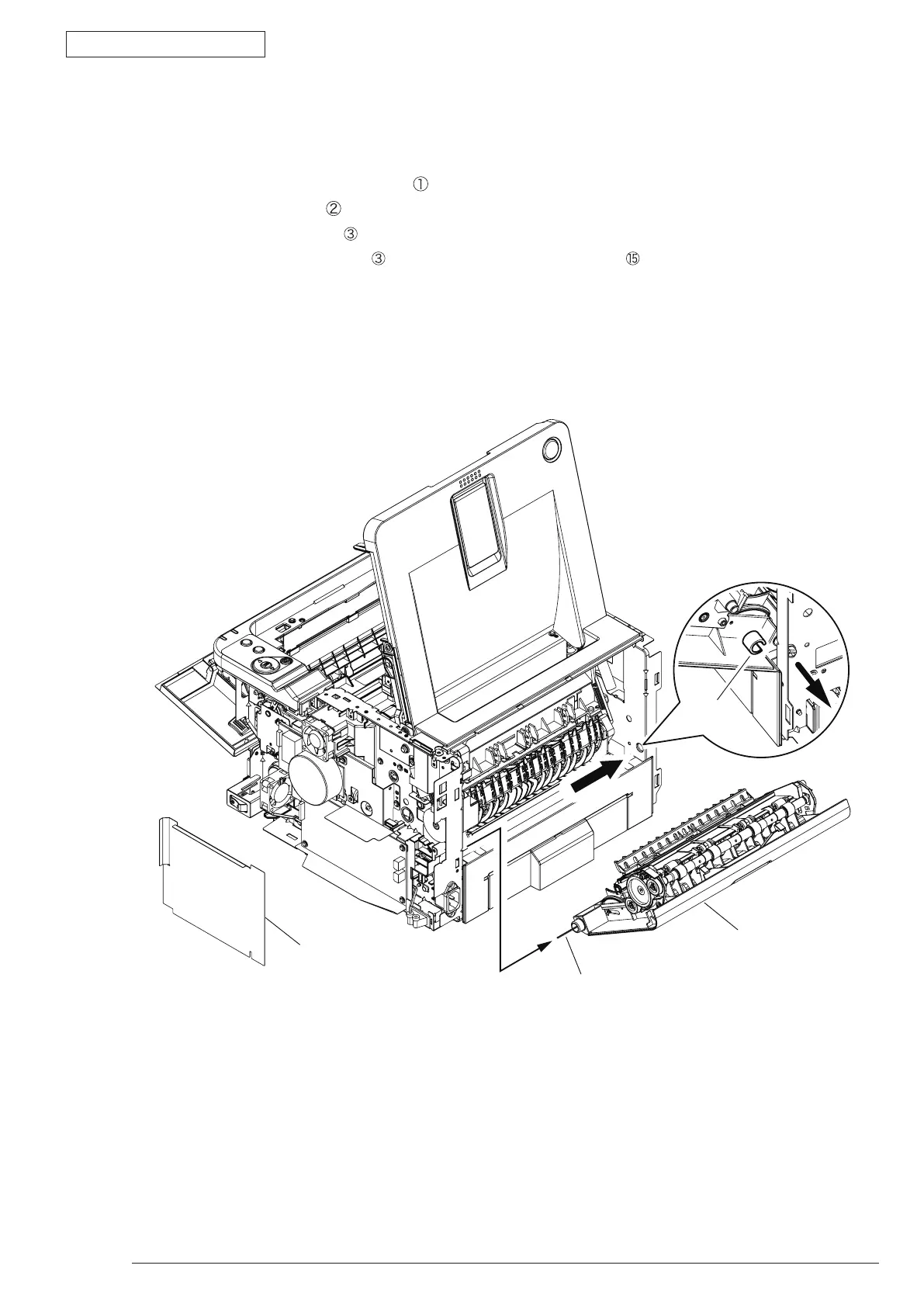

3.3.17 Cover Assy Rear
(1) Remove the Cover-Side-R and Cover–Side-L. (Refer to 3.3.4 / 3.3.5)
(2) Remove the CU-Board. (Refer to 3.3.6)
(3) Remove the Sheet-Insulation-CU
.
(4) Remove the Spacer
.
(5) Slide Cover Assy Rear
and pull it out of the hole on the right of the printer.
(Remove Cover Assy Rear
carefully to avoid Cable-Sensor-FU from being caught.)
②
③
⑮
①
To Next Page
