3. Parts replacement
44983601TH Rev.1
3-41 /

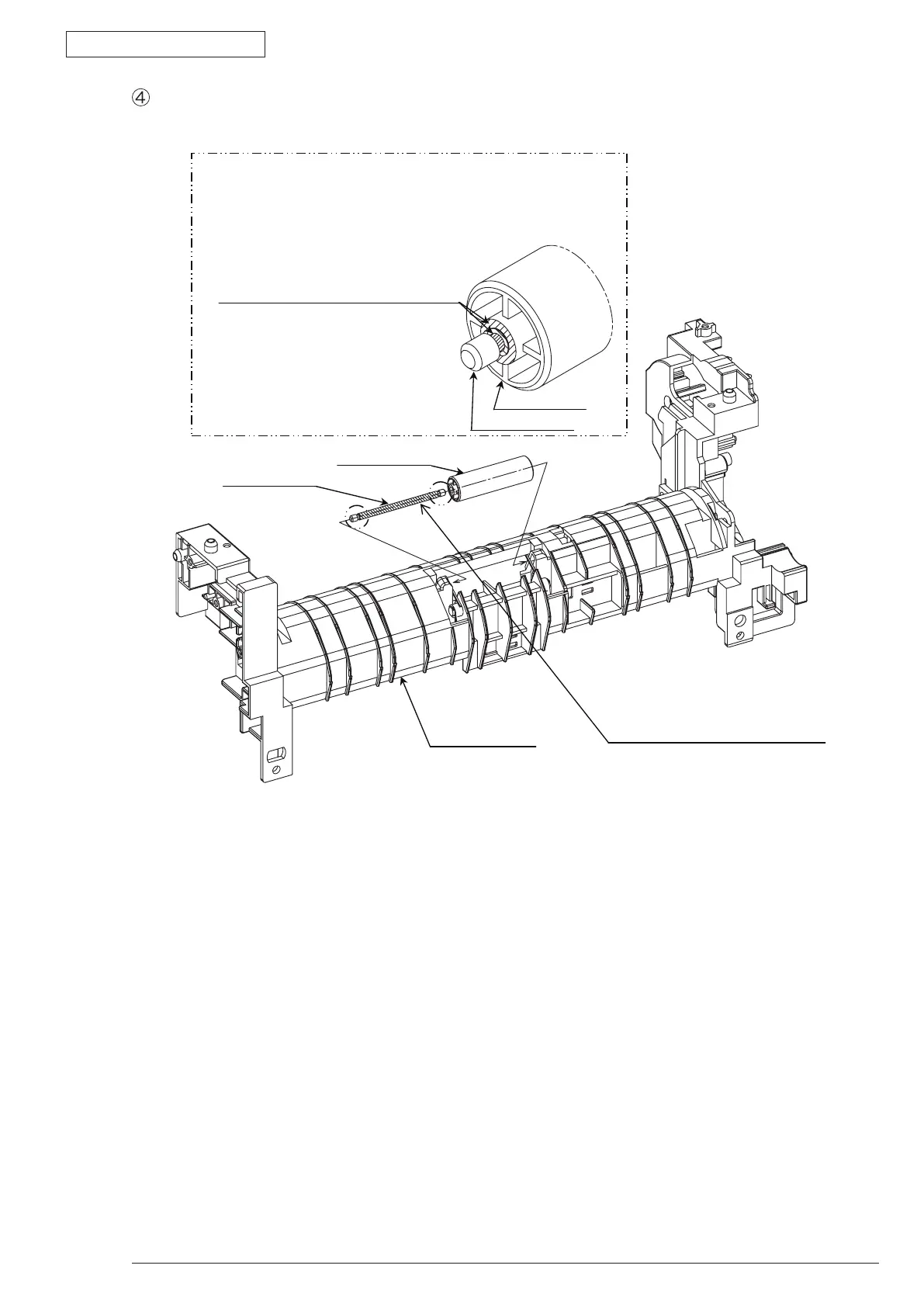

-1 Frame Assy-Regist
Note:1
EM-30LP Class A
Apply a normal amount of MOLYKOTE (EM-30LP)
to the hatched areas.
(Side of roller and ditch of shaft)
(The other side is also the same.
: Two places in total)
EM-30LP Class B
Apply a normal amount of
MOLYKOTE (EM-30LP) to the
hatched areas. (Center of shaft)
Roller-Pinch
Shaft-Idle-Dup
Roller-Pinch
Shaft-Idle-Dup
Note:1
Note:1
Frame-Regist
