3. Parts replacement
44983601TH Rev.1
3-45 /

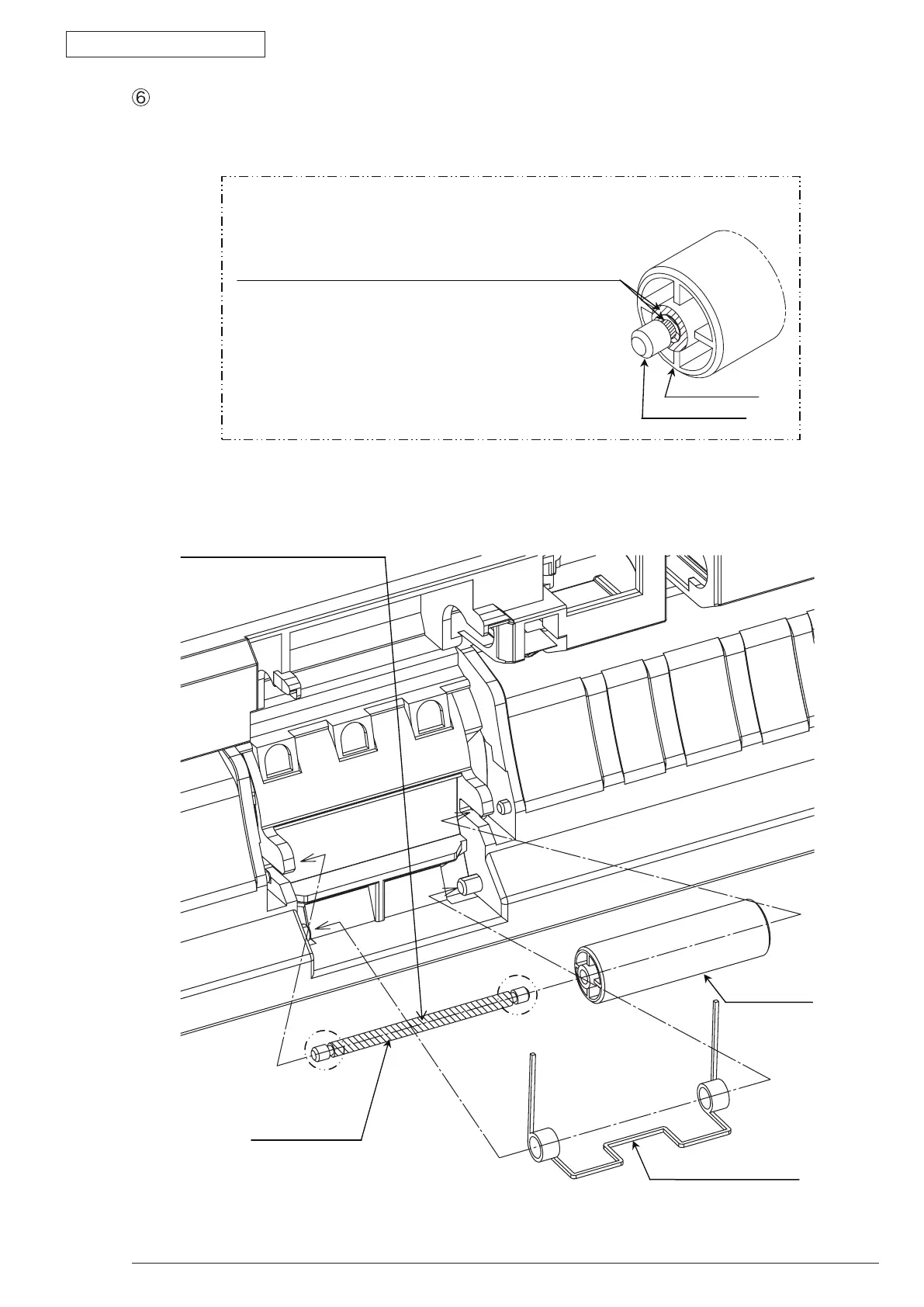

Frame-Assy-MPT / Frame-Assy-Manual
Roller-Pinch
Shaft-Idle-Dup
Roller-Pinch
Spring-Torsion-Pinch
Note:1
Shaft-Idle-Dup
Note:1
EM-30LP Class B
Apply a normal amount of
MOLYKOTE (EM-30LP) to the
hatched areas.
(Center of shaft)
Note:1
EM-30LP Class A
Apply a normal amount of MOLYKOTE (EM-30LP)
to the hatched areas. (Side of roller and ditch of shaft)
(The other side is also the same. : Two places in total)
