Replacing consumable items > 45

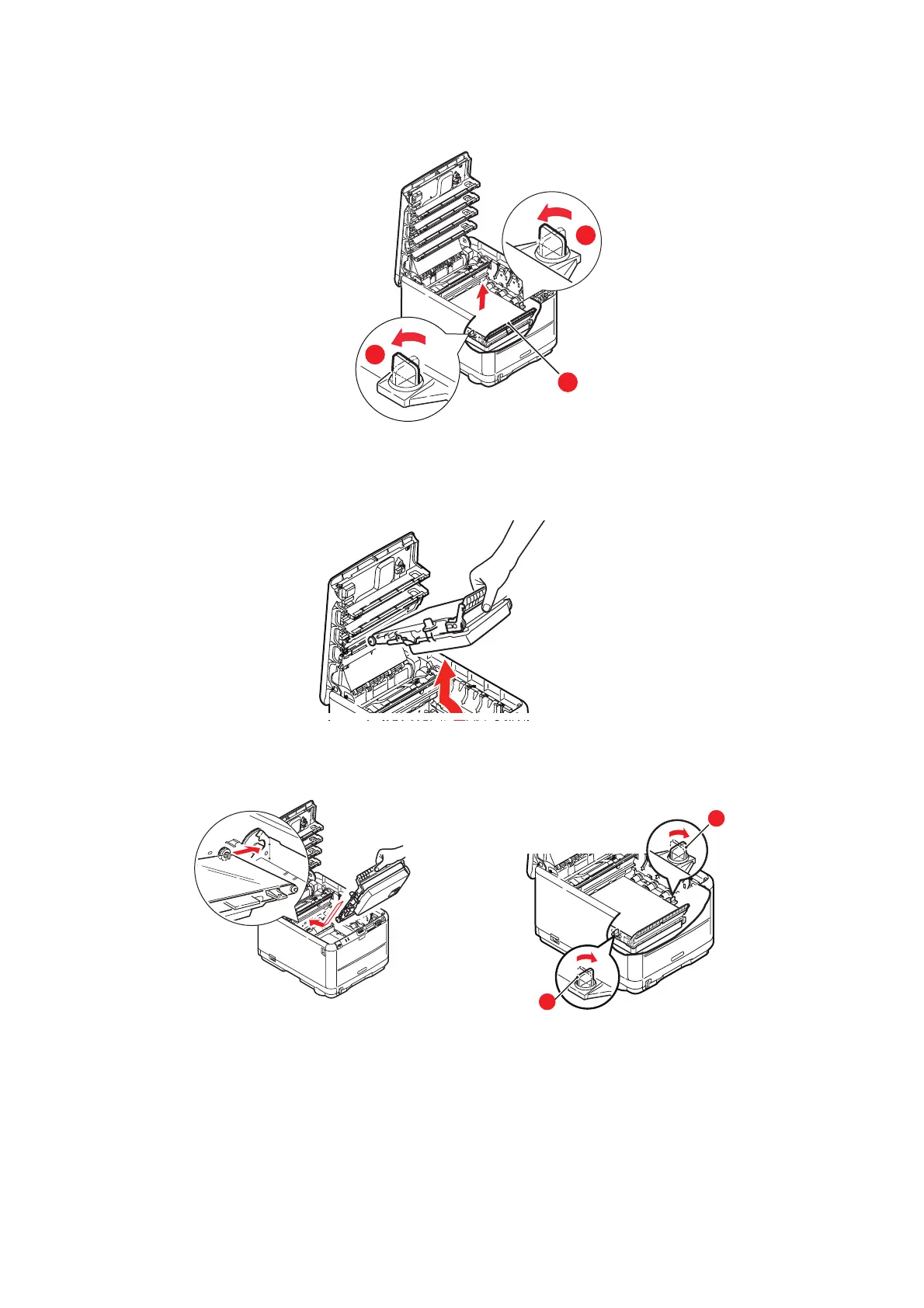

4. Locate the two fasteners (1) at each side of the belt and the lifting bar (2) at the
front end.
5. Turn the two fasteners 90° to the left. This will release the belt from the printer
chassis.
6. Pull the lifting bar (2) upwards so that belt tilts up towards the front, and withdraw
the belt unit from the printer.
7. Lower the new belt unit into place, with the lifting bar at the front and the drive gear
towards the rear of the printer. Locate the drive gear into the gear inside the printer
by the rear left corner of the unit, and lower the belt unit flat inside the printer.
Turn the two fasteners (1) 90° to the right until they lock. This will secure the belt
unit in place.
8. Replace the four image drums, complete with their toner cartridges, into the printer
in the same sequence as they came out: cyan (nearest the rear), magenta, yellow
and black (nearest the front).
9. Finally, close the top cover and press down firmly at both sides so that the cover
latches closed.
1
2
1
1
1
1
