C330/C530 Memory Install > 19

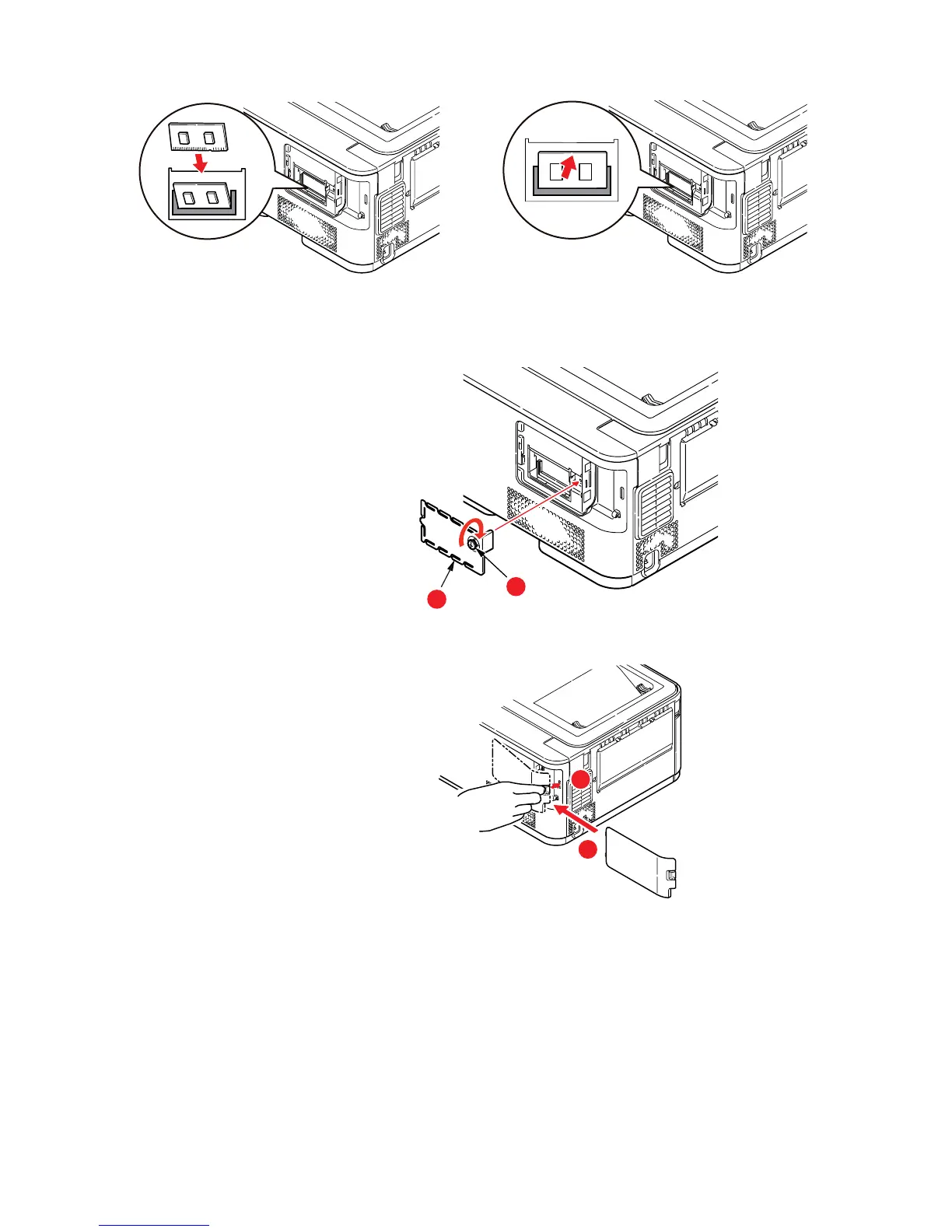

9. Gently push the board into the RAM expansion slot until it latches
in and will not go any further.
10. Replace the inner access cover (b) and turn locking screw (a)
clockwise to secure it shut.
11. Replace the access cover and latch it closed.
12. Reconnect the AC power cable and switch the printer on.
13. When the printer is ready, print a menu map as follows:
(a) Press the OK button.
(b) Press the Menu down button then the OK button to select
the INFORMATION MENU.
(c) Press the OK button to select PRINT MENU MAP.
(d) Press the OK button once more to execute.
b
a
