Replacing consumable items> 86
I
MAGE
DRUM
REPLACEMENT
Switch off the printer and allow the fuser to cool for about
10 minutes before opening the cover.

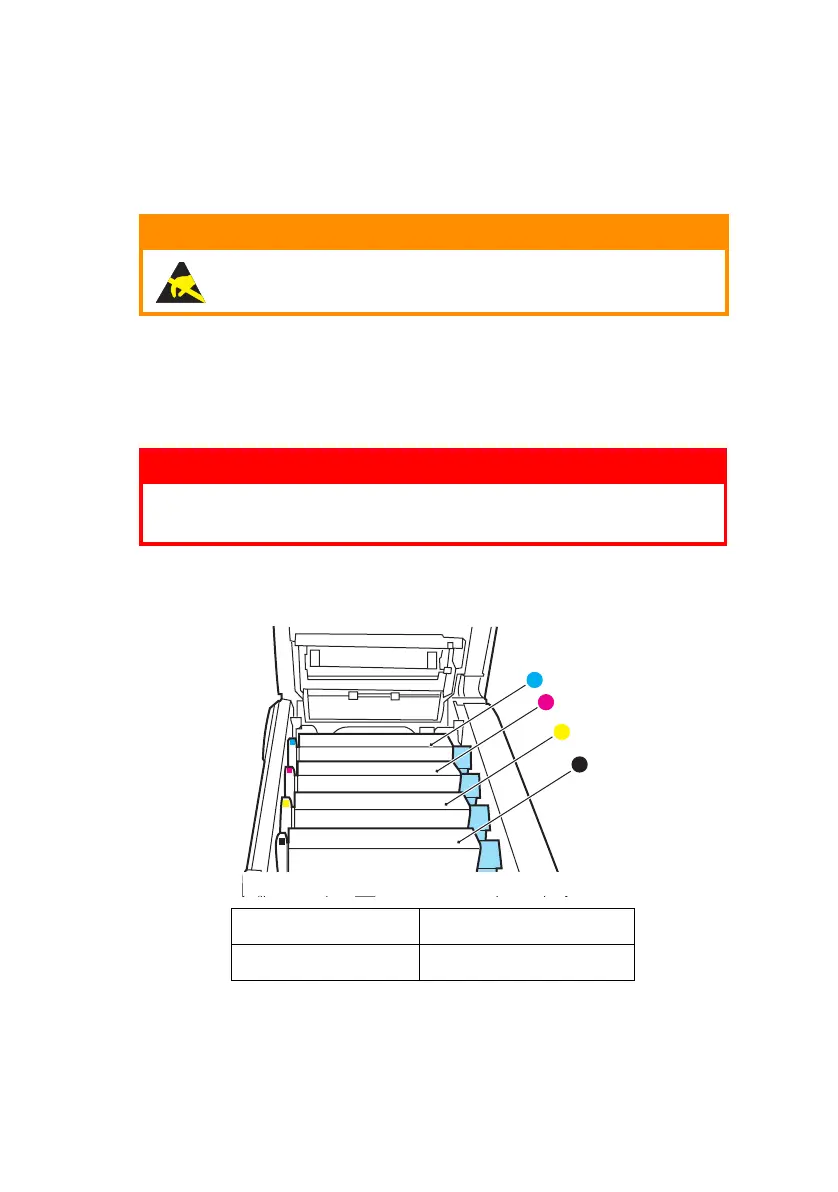

The printer contains four image drums: cyan, magenta, yellow
and black.
1. Press the cover release and open the printer’s top cover
fully.
2. Note the positions of the four cartridges.
CAUTION!
Static sensitive devices, handle with care.
WARNING!
If the printer has been powered on, the fuser will be hot.
This area is clearly labelled. Do not touch.
1
2
3
4
1. Cyan cartridge 2. Magenta cartridge
3. Yellow cartridge 4. Black cartridge
