C9600 User’s Guide> 68
3.

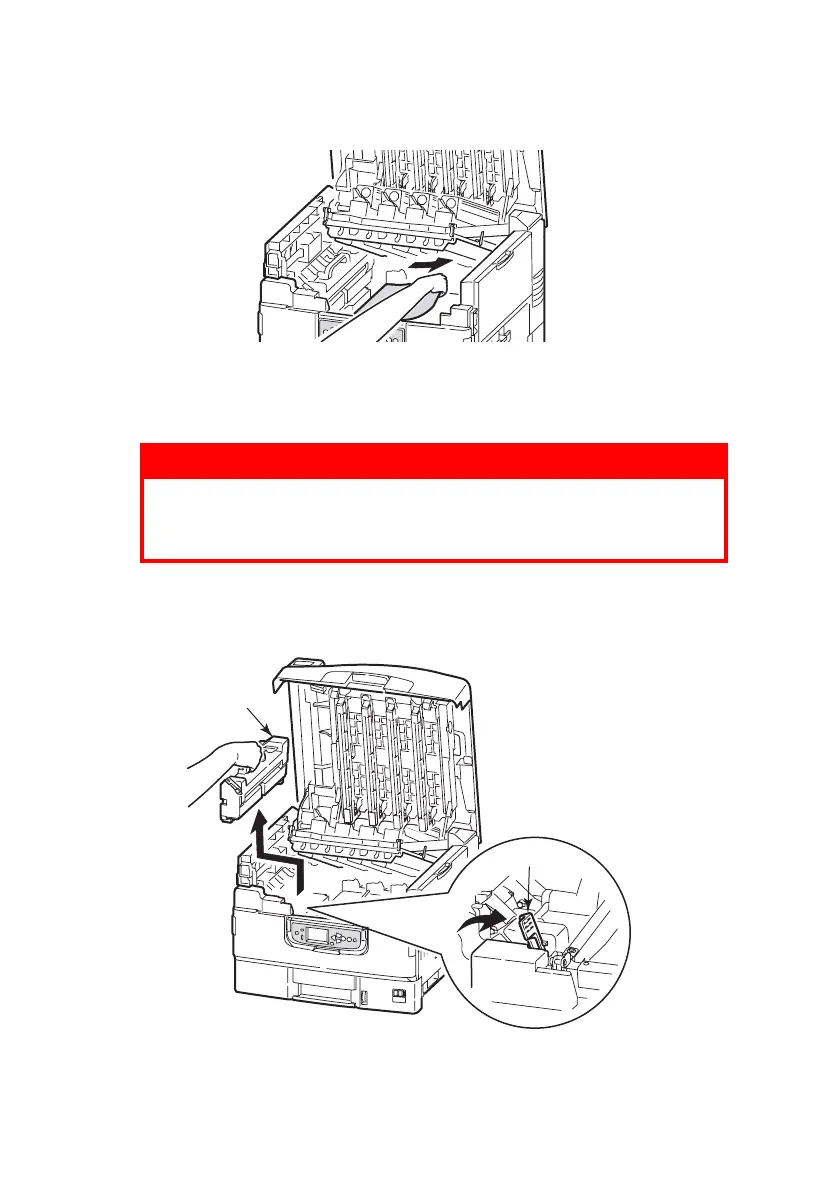

Carefully remove an
y paper on the belt.
4.
If paper is jammed in the fuser unit, push the lock lever (3)
in the direction shown to release the unit.
Holding the fuser unit (4) by the handle, lift it out of the
printer and place it on a flat surface.
WARNING!
Be careful not to touch the fuser unit which may be hot
after printing. If the
fuser unit is hot, wait until it cools
before attempting to remove any jammed paper.
4
3
67
69
