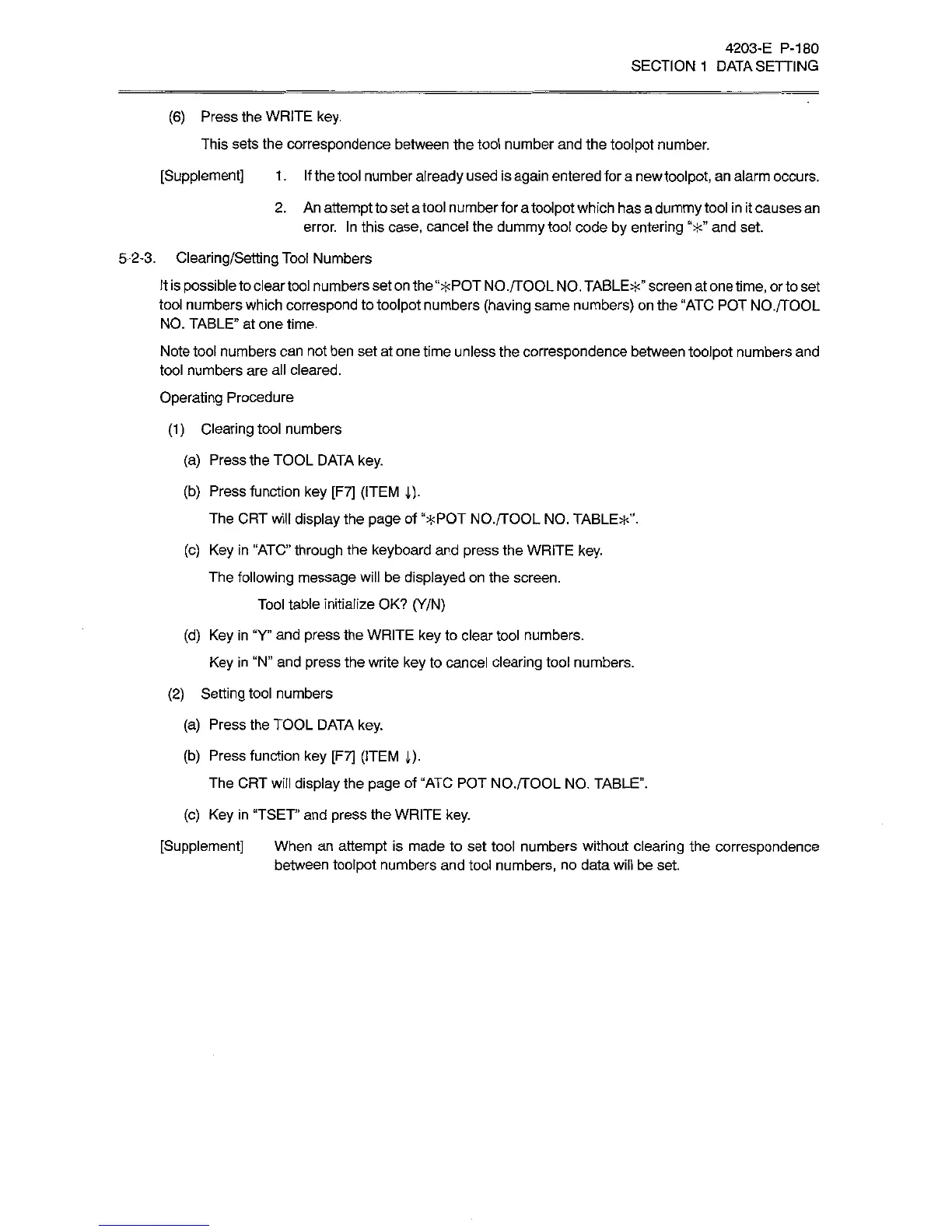

4203-E
P-180
SECTION
1
DATA
SETTING
(6)
Press
the
WRITE
key.
This
sets
the
correspondence
between
the
tool number
and the
tool
pot
number.
[Supplement]
1
.
If
the tool
number
already
used
is
again
entered
for
a
new
toolpot,
an
alarm
occurs.
2.
An
attempt
to set
a
tool
number
for
atoolpot
which
has
a
dummy
tool
in
it
causes
an
error.
In
this
case,
cancel the
dummy
tool
code
by
entering
“*”
and
set
5-2-3.
Clearing/Setting
Tool
Numbers
it
is
possible
to
clear
tool numbers
set
on
the
“*POT
NO./TOOL
NO.
TABLE*”
screen
at
one
time,
or
to
set
tool
numbers
which
correspond
to
toolpot
numbers
(having
same
numbers)
on
the
“ATC
POT
NO./TOOL
NO.
TABLE”
at
one
time.
Note tool numbers
can
not
ben
set at
one
time unless
the
correspondence
between
toolpot
numbers
and
tool numbers
are
all
cleared.
Operating
Procedure
(1) Clearing
tool
numbers
(a)
Press the
TOOL
DATA
key.
(b)
Press
function
key
[F7]
(ITEM
J).
The
CRT
will
display
the
page
of
“*POT
NO./TOOL
NO.
TABLE*”.
(c)
Key
in
“ATC”
through
the
keyboard
and
press
the
WRITE
key.
The
following
message
will
be
displayed
on
the
screen.
Tool
table
initialize
OK?
(Y/N)
(d)
Key
in
“Y”
and
press
the
WRITE
key
to
clear tool
numbers.
Key
in
“N”
and
press
the
write
key
to
cancel
clearing
tool
numbers.
(2) Setting
tool
numbers
(a)
Press the
TOOL
DATA
key.
(b)
Press
function
key
[F7]
(ITEM
|).
The
CRT
will
display
the
page
of “ATC
POT NO.
/TOOL
NO.
TABLE”.
(c)
Key
in
“TSET”
and
press
the
WRITE
key.
[Supplement]
When
an
attempt
is made
to
set
tool
numbers without
clearing
the
correspondence
between
toolpot
numbers and
tool
numbers,
no
data
will
be
set.
