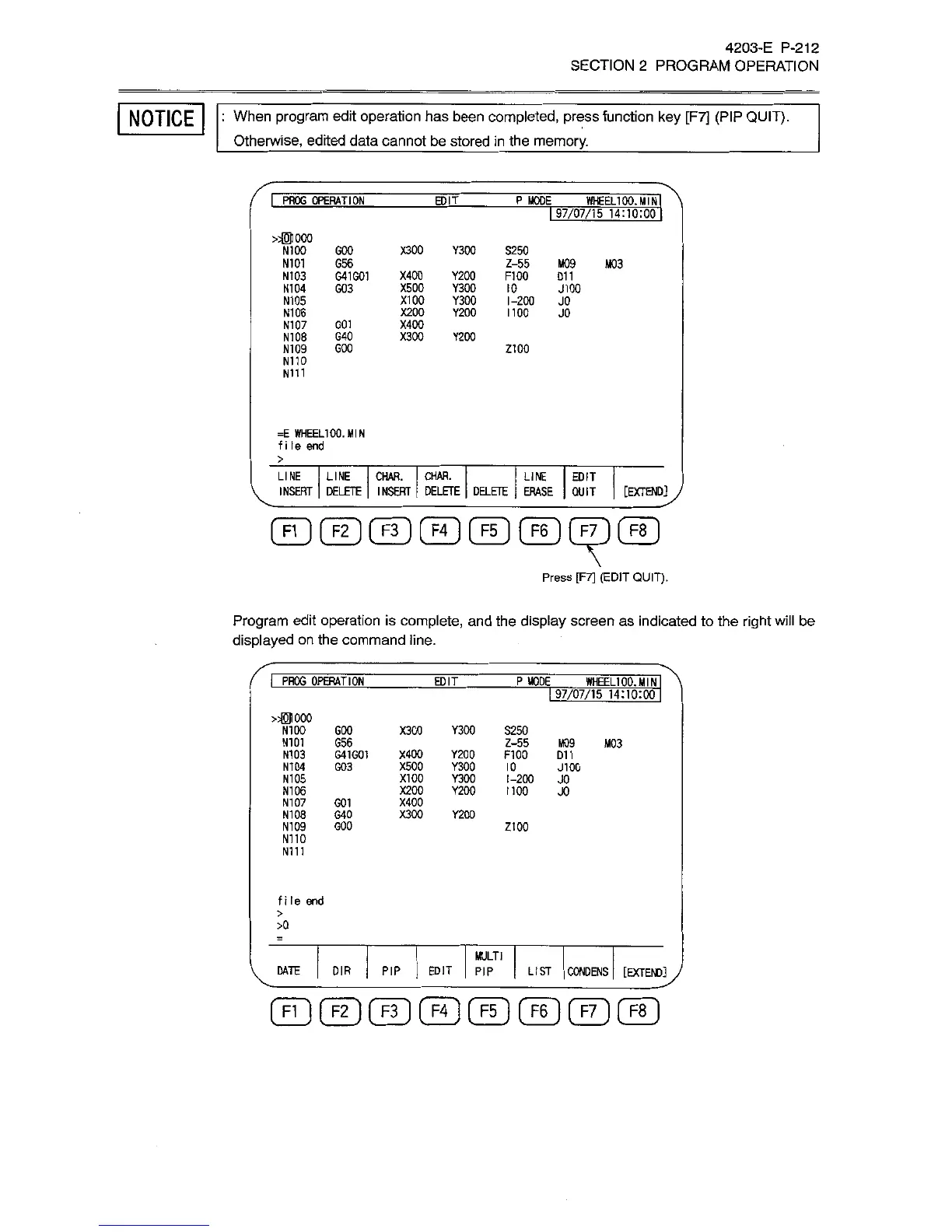

SECTION
2
PROGRAM
OPERATION
NOTICE
:
When
program
edit
operation
has
been
completed,
press
function
key
[F7]
(PIP
QUIT).
Otherwise,
edited
data
cannot
be
stored
in
the
memory.
