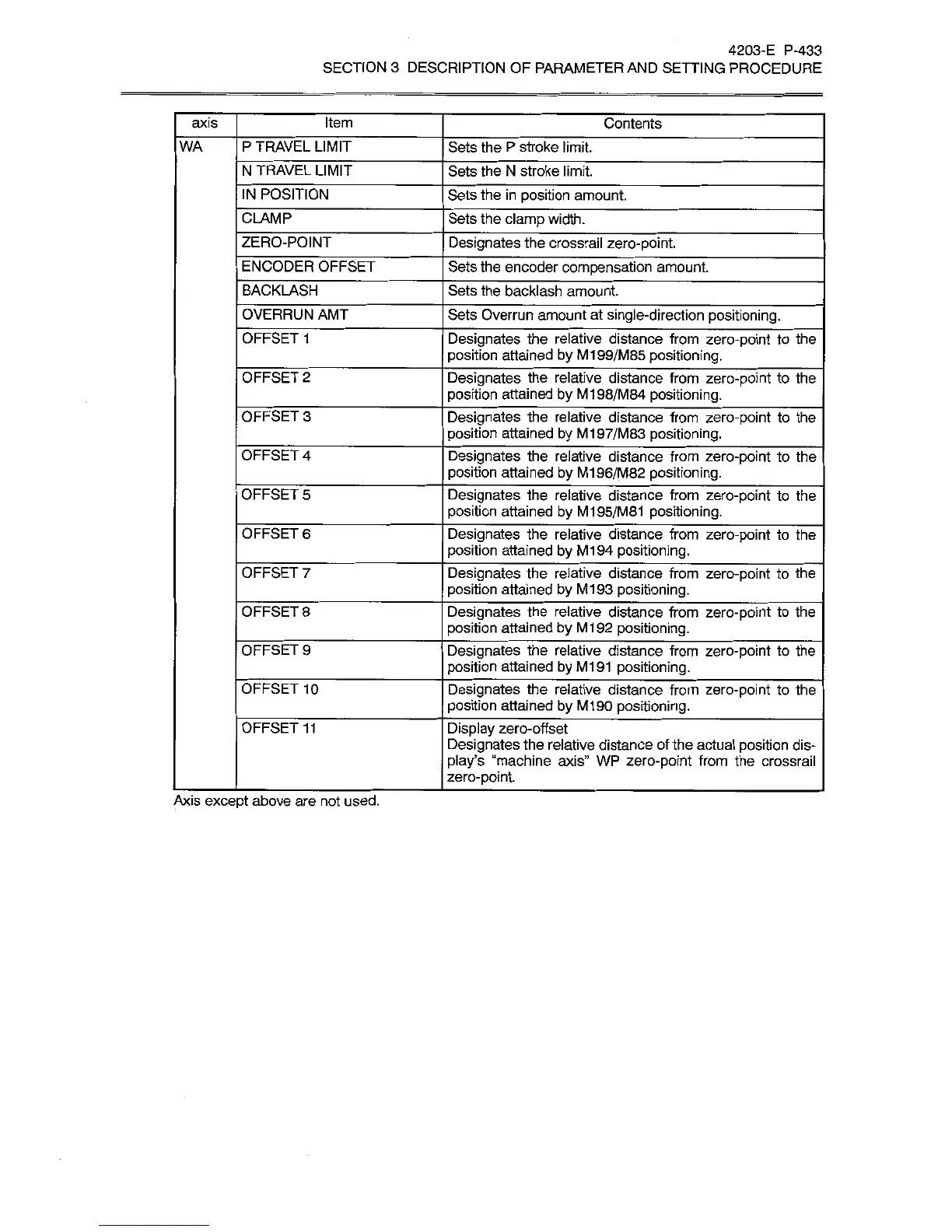

Okuma OSP-U100M - Page 455

4203-E
P-433
SECTION
3
DESCRIPTION
OF
PARAMETER
AND
SETTING
PROCEDURE
axis Item
Contents
WA
P
TRAVEL
LIMIT
Sets
the
P
stroke
limit.
N TRAVEL
LIMIT
Sets
the
N
stroke
limit.
IN
POSITION
Sets
the
in
position
amount.
CLAMP
Sets
the
clamp
width.
ZERO-POINT
Designates
the
crossrail
zero-point.
ENCODER OFFSET
Sets
the
encoder
compensation
amount.
BACKLASH
Sets
the
backlash
amount.
OVERRUN
AMT
Sets
Overrun
amount
at
single-direction
positioning.
OFFSET
1
Designates
the
relative
distance
from
zero-point
to
the
position
attained
by
M199/M85
positioning.
OFFSET
2
Designates
the
relative
distance
from
zero-point
to
the
position
attained
by
M198/M84
positioning.
OFFSET
3
Designates
the
relative distance
from
zero-point
to
the
position
attained
by
M197/M83
positioning.
OFFSET
4
Designates
the
relative
distance
from
zero-point
to
the
position
attained
by
M196/M82
positioning.
OFFSET
5
Designates
the
relative
distance
from
zero-point
to
the
position
attained
by
M195/M81
positioning.
OFFSET
6
Designates
the
relative
distance
from
zero-point
to
the
position
attained
by
M194
positioning.
OFFSET
7
Designates
the
relative
distance
from
zero-point
to
the
position
attained
by
M
193
positioning.
OFFSET
8
Designates
the
relative
distance
from
zero-point
to
the
position
attained
by
M
192
positioning.
OFFSET
9
Designates
the
relative
distance
from
zero-point
to
the
position
attained
by
M191
positioning.
OFFSET
10
Designates
the
relative
distance
from
zero-point
to
the
position
attained
by
M190
positioning.
OFFSET
11
Display
zero-offset
Designates
the
relative
distance
of
the actual
position
dis¬
play’s
“machine
axis"
WP
zero-point
from
the
crossrail
zero-point.
Axis
except
above
are
not
used.
