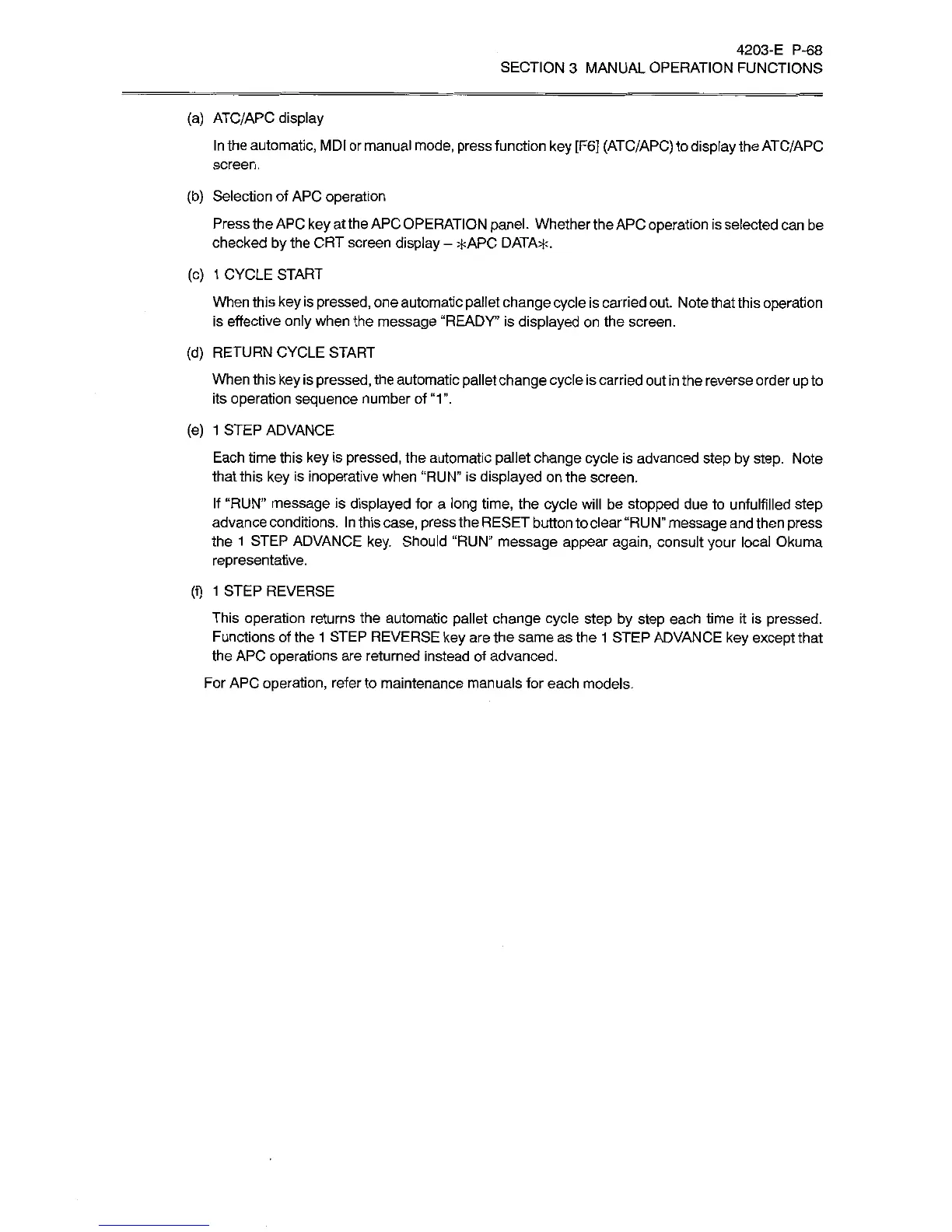

4203-E
P-68
SECTION
3
MANUAL
OPERATION FUNCTIONS
(a)
ATC/APC
display
In
the
automatic,
MDI
or
manual
mode,
press
function
key
[F6]
(ATC/APC)
to
display
the
ATC/APC
screen.
(b)
Selection
of
APC
operation
Press
the
APC
key
at
the
APC
OPERATION
panel.
Whether
the
APC
operation
is
selected
can
be
checked
by
the
CRT
screen
display
-
*APC
DATA*.
(c)
1
CYCLE
START
When
this
key
is
pressed,
one
automatic
pallet
change
cycle
is
carried
out.
Note
that
this
operation
is
effective
only
when
the
message
“READY’
is
displayed
on
the
screen.
(d)
RETURN
CYCLE START
When
this
key
is
pressed,
the
automatic
pallet
change cycle
is
carried
out
in
the
reverse
order
up
to
its
operation
sequence
number
of
“1
”.
(e)
1
STEP ADVANCE
Each
time this
key
is
pressed,
the
automatic
pallet
change
cycle
is advanced
step
by
step.
Note
that
this
key
is
inoperative
when
“RUN”
is
displayed
on
the
screen.
If
“RUN”
message
is
displayed
for
a
long
time,
the
cycle
will
be
stopped
due
to
unfulfilled
step
advance conditions.
In
this
case,
press
the
RESET
button
to
clear
“RUN”
message
and then
press
the
1
STEP
ADVANCE
key.
Should “RUN”
message
appear
again,
consult
your
local
Okuma
representative.
(f)
1
STEP
REVERSE
This
operation
returns
the
automatic
pallet
change
cycle
step
by
step
each time
it
is
pressed.
Functions
of
the
1
STEP REVERSE
key
are
the
same as
the
1
STEP
ADVANCE
key
except
that
the
APC
operations
are
returned
instead
of
advanced.
For
APC
operation,
refer
to
maintenance
manuals
for
each
models.
