1.2 Modular Mechanical Design
The OLCT 700 TP Detector Assembly is completely modular and is made up of four parts (See Figure
below):
O-Rings
Splash Guard
Adapter
Plug-in Replaceable
H2S Sensor
Lens and LED
Display
Interconnect
Wires
Housing Bottom
Locking Set-Screw
Intelligent Transmitter Module (ITM)
Micro-processor controlled circuit
encapsulated in an Explosion proof
housing.
Magnetic
Programming
Switches
MODEL
TP-700
detcon inc.
H2S Sensor
SplashGuard

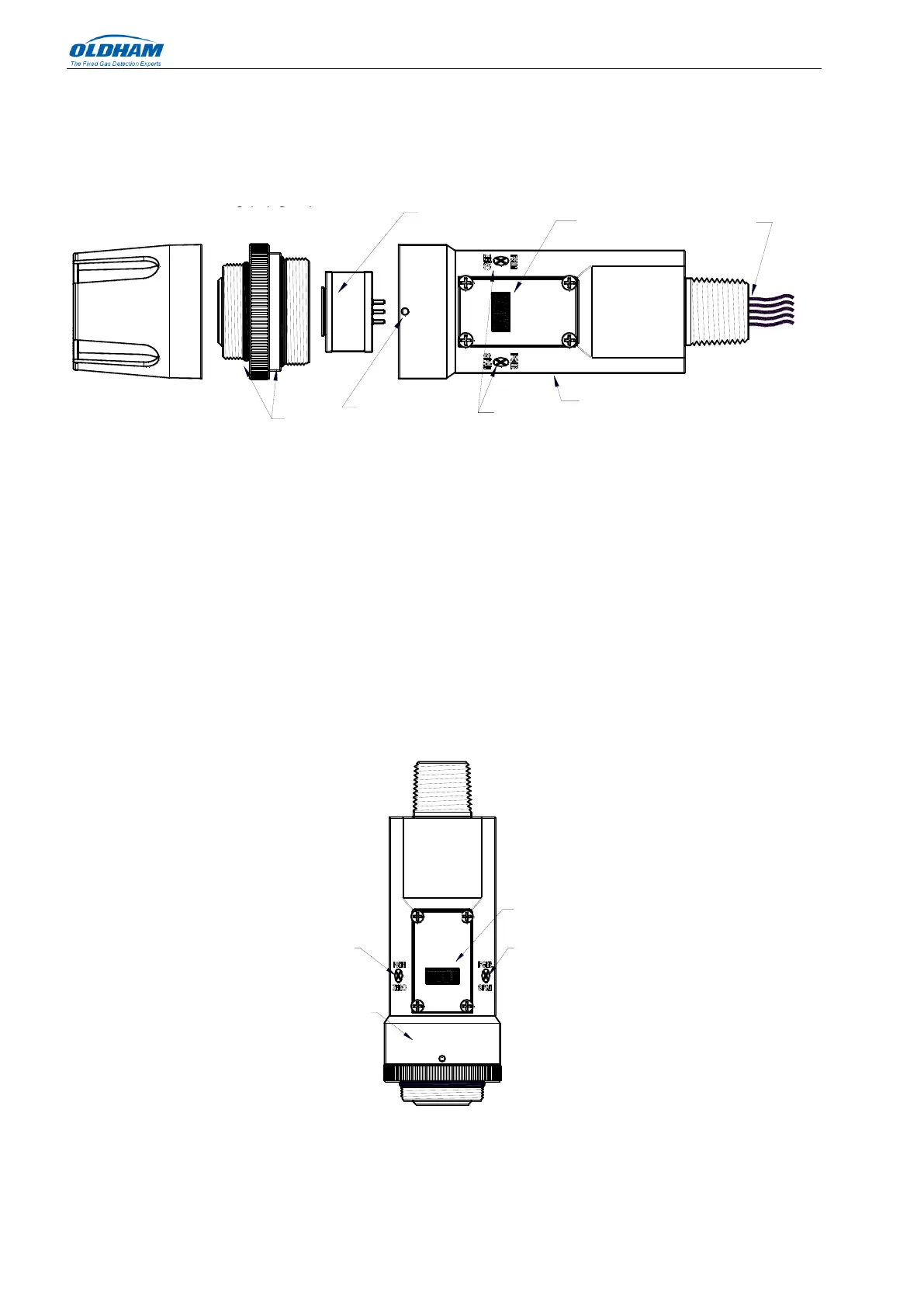

Figure 1: Detector Assembly Breakaway
1) Intelligent Transmitter Module (ITM). The Intelligent Transmitter Module (ITM) is a fully
encapsulated microprocessor-based package that accepts a plug-in field replaceable H
2
S sensor.
Circuit functions include LED display, magnetic programming switches, a linear 4-20mA DC
output, and a Modbus™ RS-485 output. Magnetic program switches allow non-intrusive operator
interface
2) Field Replaceable Plug-in H
2
S Gas Sensor
3) Housing Bottom Assembly (contains the Housing Bottom, Flame Arrestor, Retaining Ring, and
rubber O-Ring’s)
4) Splash Guard
NOTE: All metal components are constructed from electro polished 316 Stainless Steel in order to
maximize corrosion resistance in harsh environments.
Program Switch #1
LED Display
Program Switch #2
MODEL
TP-700
detcon inc.
H2S Sensor
Splash Guard Adapter
Locking Set-Screw
Figure 2: OLCT 700 Assembly Front View
OLDHAM
OLCT
700 TP
OLDHAM
OLCT
700 TP
Housing Bottom
Assembly
