Oldham BM25 Operating Manual

33
STATUS REPORT
Follow the same procedure as above

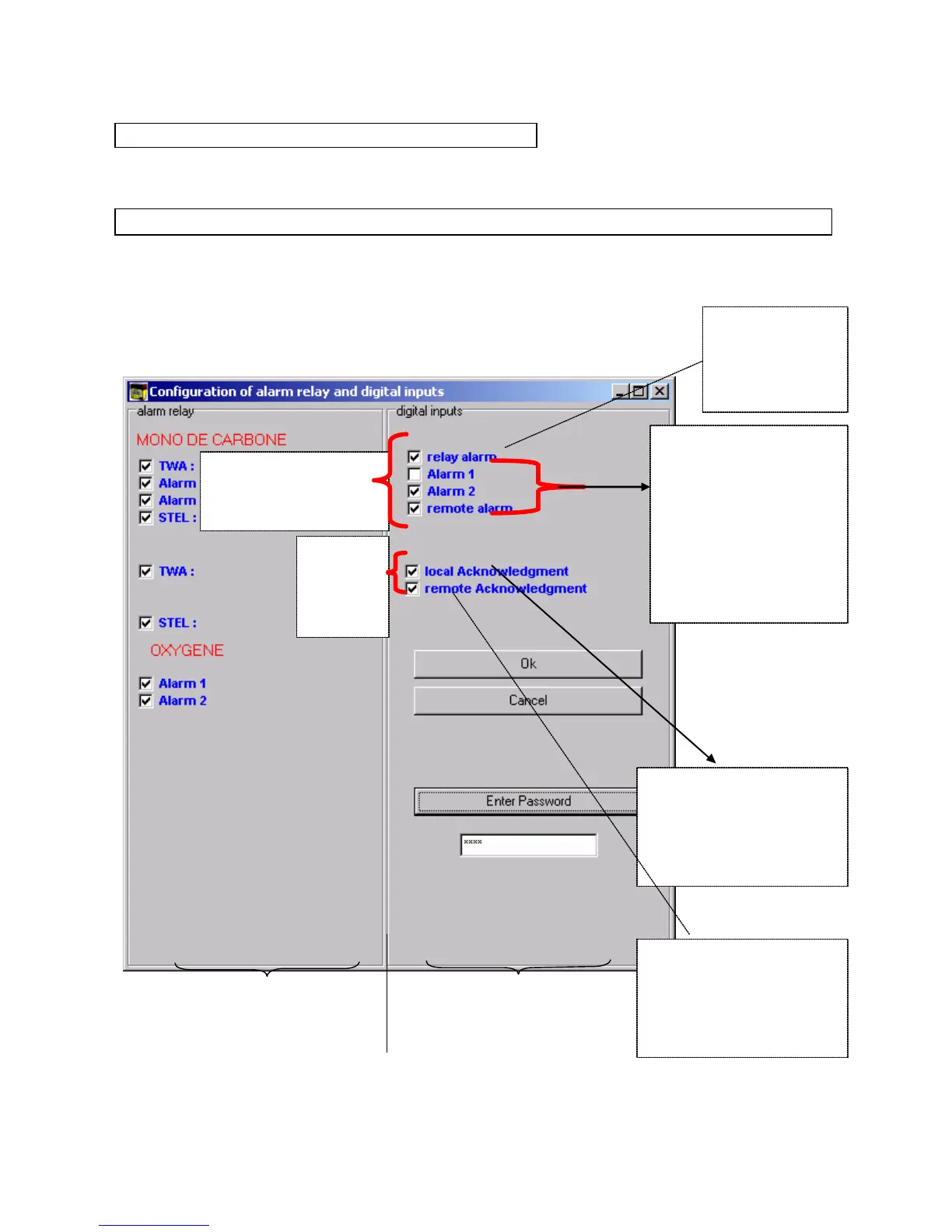

Configuration of alarm relay and logic inputs for the BM25:
- fill in the table displayed on screen by clicking on the appropriate windows according to alarm
relay use and logic inputs needed.
- click “OK” to validate.
- programming column for programming column of
activation of alarm relays logic inputs.
Logic input of alarms.
Logic
input of
acknowle
dgment.
For activation of
internal alarm
relay by an
external alarm
Alarm type, visual
indicators
- Alarm 1 = low
speed
- Alarm 2 = high
speed
- Transferred
alarm = very low
speed
Local acknowledgement =
to acknowledge a
manually transferred
alarm from BM25
keyboard
Remote acknowledgment
= to acknowledge a BM25
alarm by a transfer button
(closing of contact)
