6-16
Engine Air Cleaner/Filter

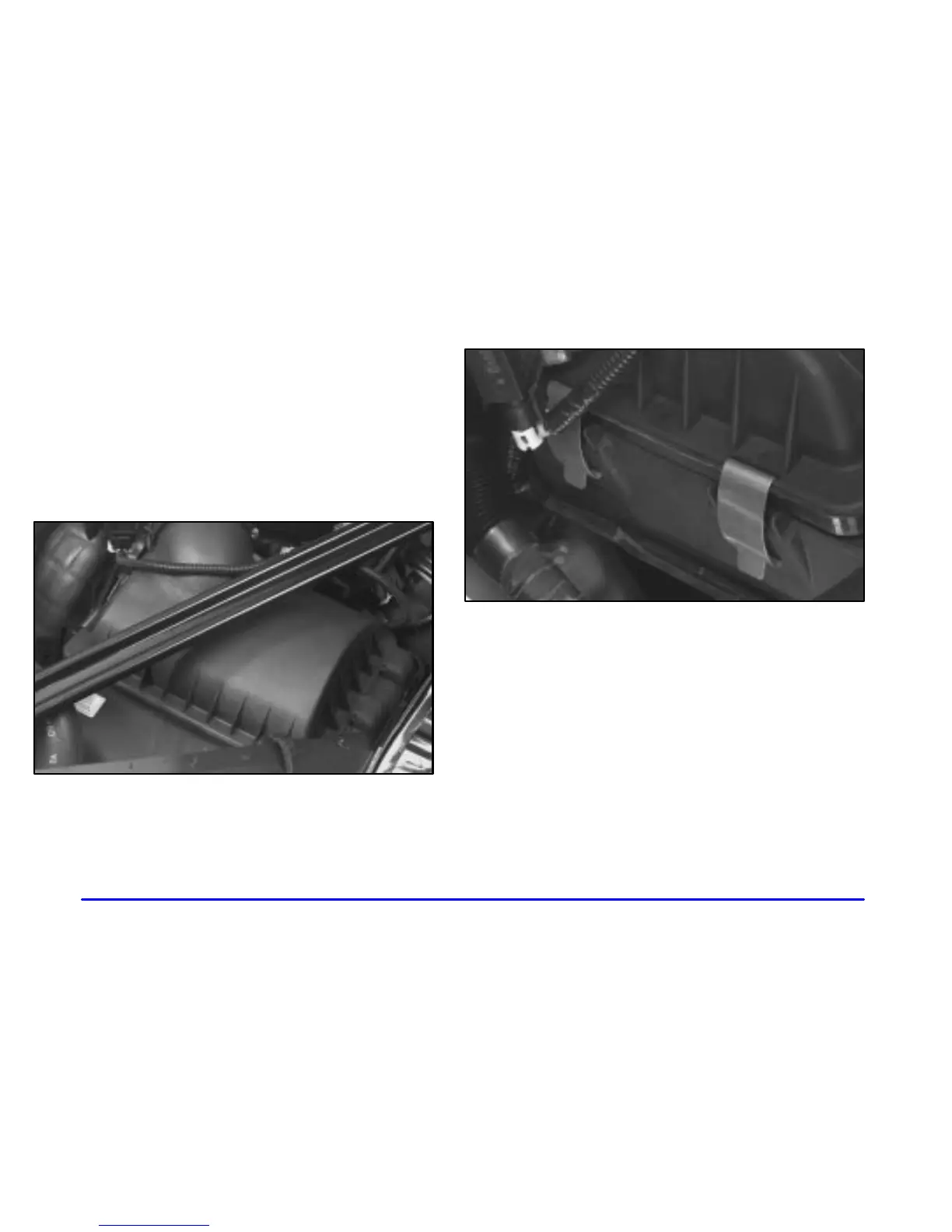

The engine air cleaner/filter is located on the driver’s
side near the front of the engine compartment. See
“Engine Compartment Overview” in the Index for more
information on location.
To check or replace the engine air cleaner/filter do
the following:
1. Using a screwdriver, loosen the bolt on the air duct
clamp from the throttle body.
2. Remove the air duct from the throttle body.
3. Unhook the two hold-down clips located on the air
box cover.
4. Lift the air box cover and air duct assembly away
from the air box, toward the engine.
To Next Page
