Model
To ensure the correct usage, please read and follow the instructions
manual thoroughly. Please store the instructions in a safe place
for future reference.
To ensure customer safety, be sure to decide the installation location so that the strength is sufficient to withstand the weight of both the panel
display and the wall mount.
Always use at least two persons for all installations.
Fully tighten all of the mounting screws as specified in the installation instructions.

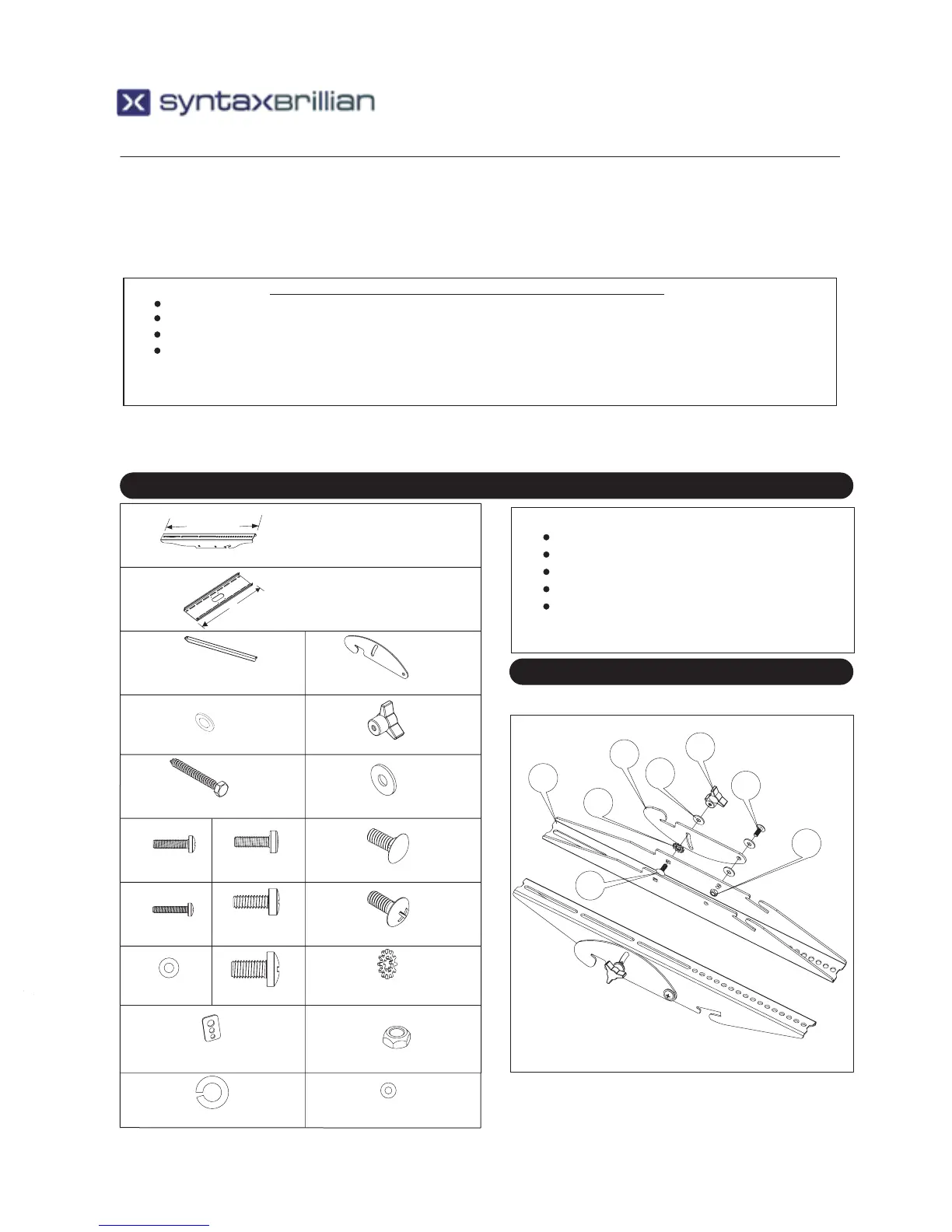

Parts Configuration Chart Features
MOUNTING ARM ASSEMBLY
Special techniques are necessary for installation of the panel display mount.
Do not attempt to perform this work by yourself.
Request an installation specialist to install this unit.
Manufacturer assumes absolutely no responsibility for injuries and damages that may occur due to improper installation and handling.
Please remember that if you remove the panel display from the wall later, you will find the screw holes and anchor bolts for the
mounting unit left on the wall. Also note that long use of the panel display may discolor the wall around it due to its heat and
airflow.
Low profile 2 5/8”
16" or 24" stud mounting points
Easy installation
Flat to 15 deg tilt (no tools required)
Lateral movement from center for better viewing position
Wall mount bracket…1 pc
A
B
D
E
M4 x 16mm
5/16" x 2 1/2” Lag bolts …4 pcs
Display bracket .... 2 pcs
G
L
F
K
C
M3 x 16mm
5/16" Flat washers…4 pcs
Arm Hook....2 pcs
Plastic Tri Knob ... 2 pcs
Plastic Washer...6 pcs
1/4-20 x 5/8” Carriage Bolt... 2 pcs
1/4-20 x 5/8” THPM Screw...2 pcs
1/4” Starr Washer... 2 pcs
1/4-20 nylock nut... 2 pcs
H
M
1
Square multi-mount washers...4 pcs
4 locking washers each 8mm,6,5,4,3
24”
I
N
O
P
Q
R
S
T
U
Fig 1
All mounts and adapters carry a limited lifetime warranty from ship date against defects in material and workmanship.
We are not liable for improper installation that results in damage to mounts, adapters or presentation equipment.
WM-30D PANEL DISPLAY MOUNT
Locking bar... 1 pc
14”
N
O
P
R
T
S
Q
A
LEFT HAND SHOWN RIGHT HAND OPPOSITE
Assemble left and right arms per fig 1
M5x 16mm
M6 x 16mm
M8 x 16mm
J
M4 steel flat washer
M3 steel flat washer
TOP
BOTTOM
Thanks you for purchasing the Syntax panel display mount
