16
"
24
"
4.00
EQUAL
SPACING

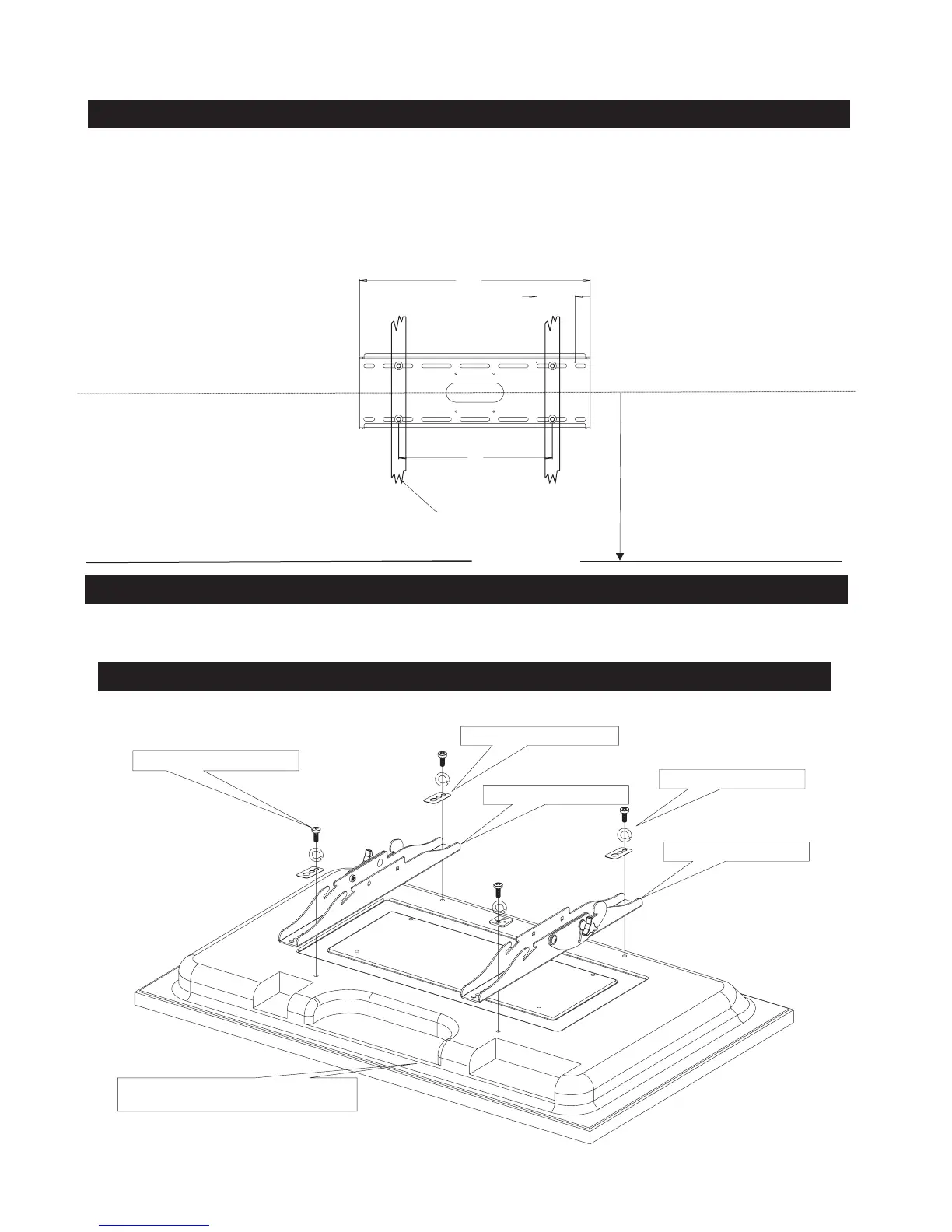

1. FASTEN MOUNTING PLATE TO WALL
Fig 2
2. SECURE THE DISPLAY BRACKETS TO THE MONITOR
NOTE: Do not over tighten the bracket mounting screws as damage to the display internal mounting threads could occur.
The bracket must be secured to the wall studs capable of at least (4) times the weight of the unit. The wall bracket should be mounted at the same horizontal center line
as the display center line ( viewing horizontal center line). Using the four lag bolts( E ) and washers supplied ( D ) Level and secure the mounting plate to the center of
the wall studs Pre drill 3/16” (5mm) hole for lag bolts fig.2
Lay the display panel face down on a protected surface. Position the left and the right hand bracket ( A ) with the slots facing towards the top.
See Using the proper screws, square multi-mount washers and lock washers supplied ( F,H, or H and I ). Position the brackets equal distance from
top to bottom and tighten hardware.
Fig.3. Note bottom edge!
FLOOR LINE
VIEWING
HORIZONTAL
CENTER LINE
Fig 3
3
Mounting hardware F,G,H,J,K,L,M,U
Square Multi-mount washer(I)
Panel display bottom edge
WOOD STUDS
(std construction 2 x 4 studs/1/2” wallboard)
Display bracket ( A ) left
Display bracket ( A ) right
Note: Add lock-washer (J) 8mm,6,5,4,3
