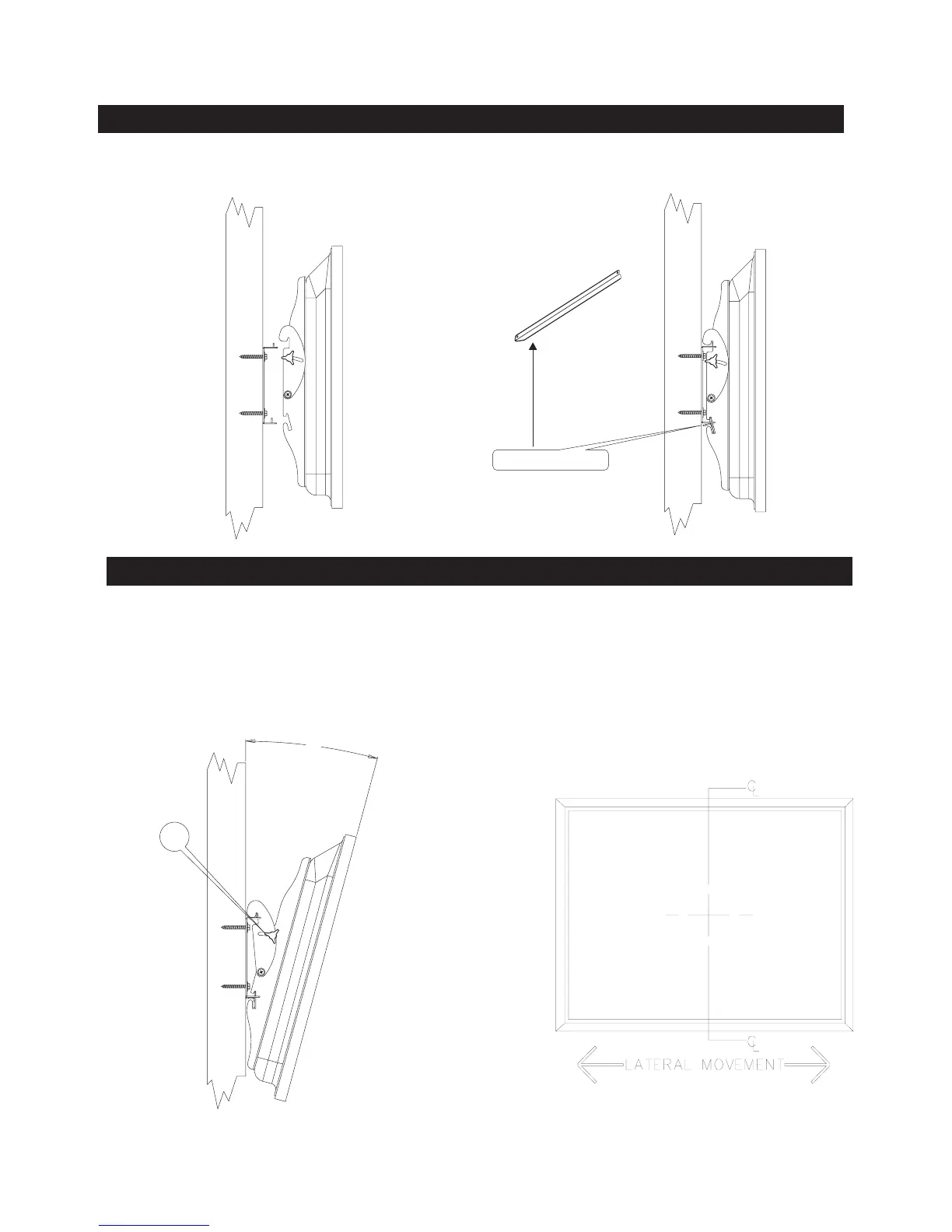

3. MOUNT THE DISPLAY TO THE WALL MOUNT BRACKET
Fig 4
Fig 5
4. Adjust lateral movement
Lateral Movement:
Fig 6
4
Fig 7
Once the display on the wall is complete you can still move the display left to right to optimize the final viewing position, by gently sliding the unit on the wall
bracket. The adjustment distance will vary depending on the display model being installed. See fig 7
Locking bar (C)
Lift the display with the brackets attached, onto the wall plate. Position the top and bottom into the slots.
Insert the locking bar (C) as shown in fig 5 with the locking holes facing up to match the holes in the wall mount bracket (B) .
Secure with a padlock (not supplied) if required thru holes in the locking barr (C) and wall mount bracket (B)
See Fig4 See fig 5 and Fig 6
Make sure the display brackets
engage the rails on the wall mount bracket (B)
See fig 5. Fig 5
15°
Adjust for best viewing angle (up to 15 deg.) Using the Tri knob (k).
After adjustment is complete tighten both tri knobs (K) . See fig 6
K
