ENGLISH
EN - 21
Since the circuit has no welding points, the leaks should only be present in the piping joints. In this case,
tightenthenutswithgreaterforce,ormaketheattachmentsagainwiththerelativearing.
h. Repeat the seal test.
2.6.5 - Plant vacuum
When all of the tests and checks regarding perfect sealing have been performed, a vacuum must be applied
to the system to remove the impurities contained therein (air, nitrogen and humidity).
a. Useavacuumpumpwithcapacityof40l/min(0.66l/s)andconnectittothegaslineservicettingusing
aexiblehosewith5/16”attachment.
b. Lower the pressure inside the circuit to the absolute value of 50 Pa for approx. 2 hours.
If, after this period of time, the pressure has not been taken to the set value (50
Pa), it means that there is a lot of humidity in the circuit or there is a leak.
c. Maintain the vacuum pump operating for another 3 hours.
If the value still hasn’t been reached after this period of time, look for the leak.
d. When the vacuum has been applied and the system has been cleaned, removethepumpttingwhen
this is still running.
e. Tightenthecap(20)(gure23).
2.6.6 - Filling the plant
Remove the cap in order to operate on the intake line
cock and on that of the liquid which, on opening, allow
theappliancetobelledwithrefrigerant.

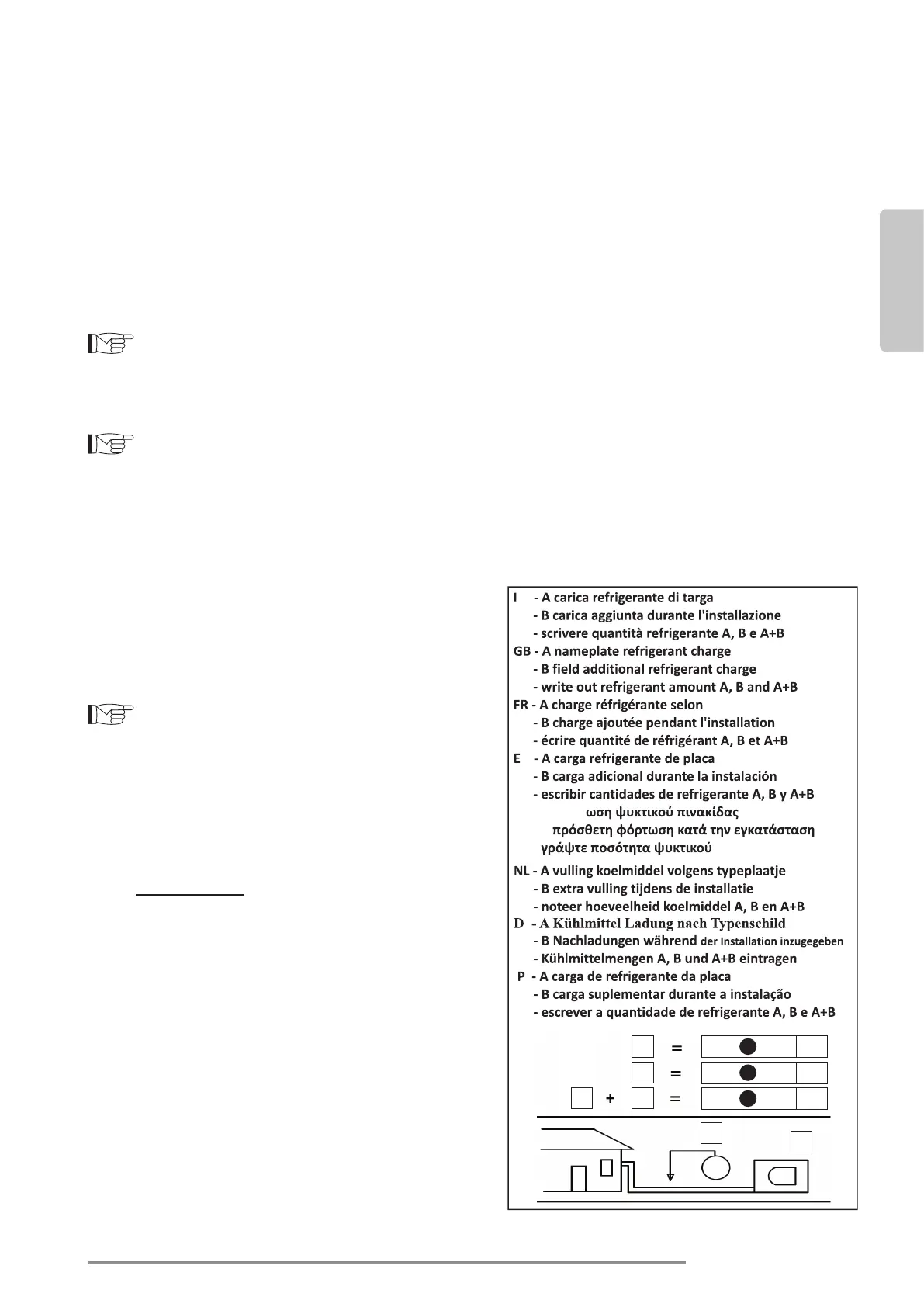

•Lookforanadhesivesheetwith2stick-
ers in the outdoor unit documentation.
 •Remove the lower label and stick it in
proximityoftheloadingand/orresetpoint.
 •Clearly note the amount of refrigerant
loaded on the refrigerant label using
indelible ink.
 •In box “1” note the amount of gas
established in the technical data (kg).
 •Inbox“2”noteanyadditionalloadinserted
by the installation technician (kg).
•Inbox“3”thesumofthetwoprevious
values (kg).
