Chapter 3 Preparation and Inspection
BF TYPE 160 Series OPERATION MANUAL

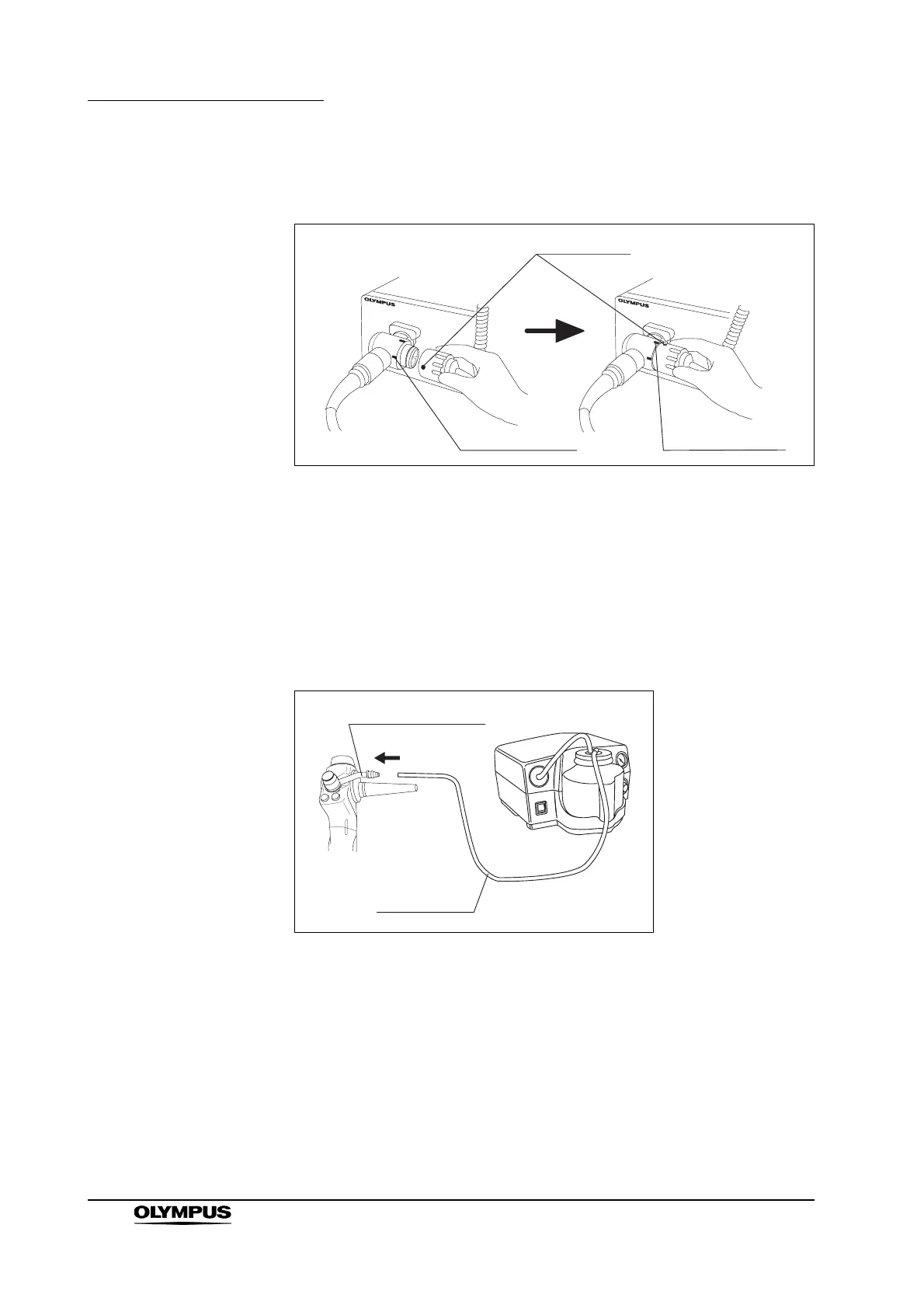

3. Align the mark on the videoscope cable with mark 1 on the endoscope
connector and push it in until it stops (see Figure 3.9).
Figure 3.9
4. Turn the connector of the videoscope cable clockwise until it stops (see
Figure 3.9).
5. Confirm that the mark on the videoscope cable is aligned with mark 2 on the
endoscope connector.
6. Connect the suction tube from the suction pump to the suction connector on
the suction valve (see Figure 3.10).
Figure 3.10
Mark (yellow)
Mark 1 (yellow)
Mark 2 (yellow)
Suction connector
Suction pump
Suction tube
