Chapter 3 Preparation and Inspection
51
EVIS EXERA II GIF/CF/PCF TYPE 180 Series OPERATION MANUAL

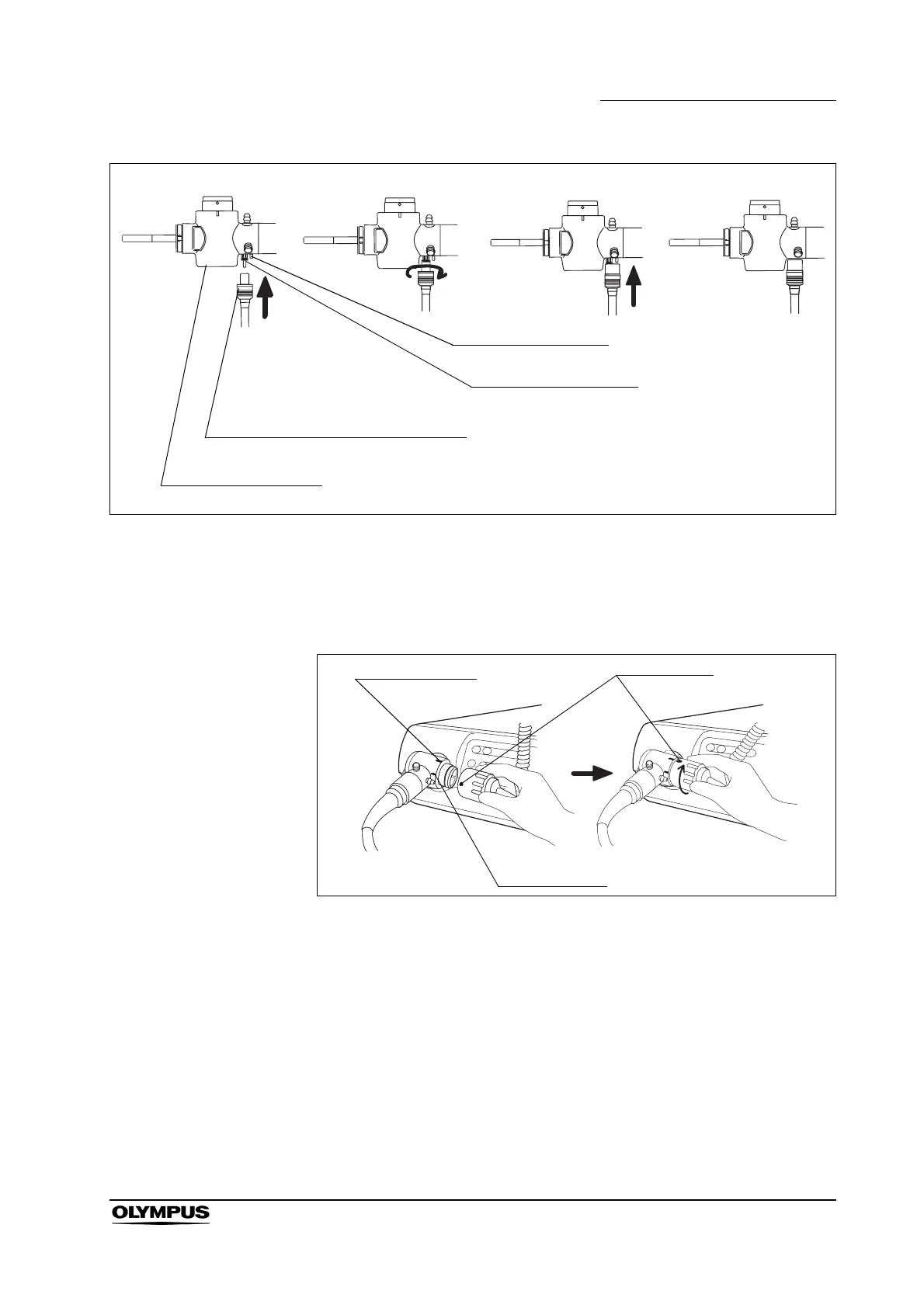

Figure 3.19
5. Align the mark on the videoscope cable EXERA II, the videoscope cable
EXERA or the videoscope cable 100 with mark 1 on the endoscope
connector and push it in until it stops (see Figure 3.20).
Figure 3.20
6. Turn the connector of the videoscope cable clockwise until it stops (see
Figure 3.20).
7. Confirm that the mark on the videoscope cable is aligned with mark 2 on the
endoscope connector.
(1) (2) (3) (4)
Air supply connector
Water supply connector
Water container’s connection adapter
Endoscope connector
Mark 2 (yellow)
Mark (yellow)
Mark 1 (yellow)
