DISASSEMBLING/ASSEMBLING PROCEDURE CV-160
5-6

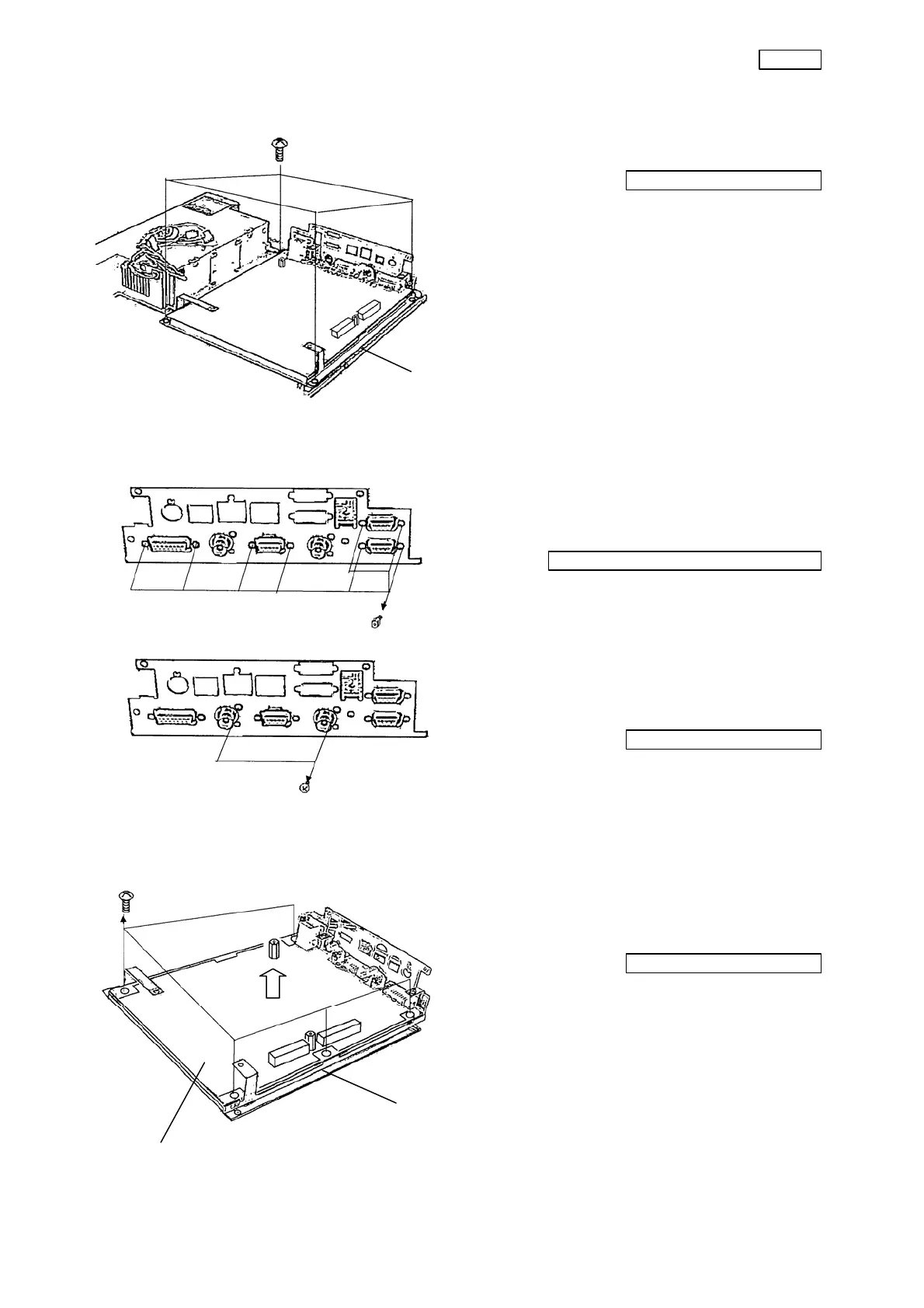

(11) Remove the four screws (CCUK3x4SZ)
that secure the plate 160.
Phillips screwdriver No. 2
(12) Remove the plate 160 from the main unit.
(13) Remove the eight screws (DK774300) that
secure the connector of the video board.
Box screwdriver (opposite side 5mm)
(14) Remove the two screws (T2CUK3x10SA)
that secure the connector of the video
board.
Phillips screwdriver No. 2
(15) Remove the five screws (CCUK3x4SZ)
that secure the video board.
Phillips screwdriver No. 2
(16) Remove the video board from the plate
160.
Video board
Plate 160
Plate 160
