DISASSEMBLING/ASSEMBLING PROCEDURE CV-160
5-7

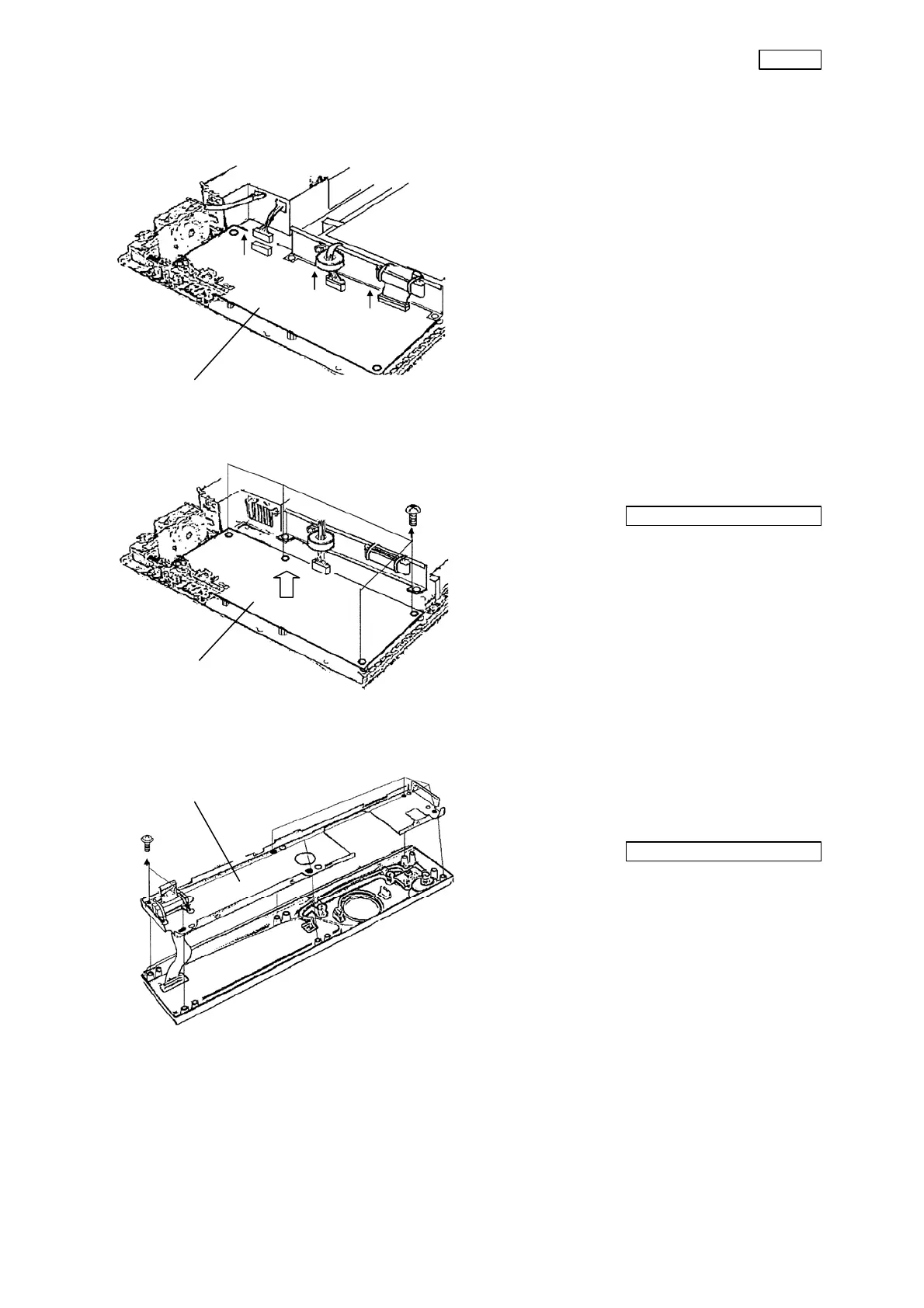

3-5. Patient board (UPCV16Apxx)
(1) Do steps (6) and (7) of 3-3. Connector block
unit.
(2) Remove the connector from the patient
board.
(3) Remove the four screws (CCUK3x6SZ)
that secure the patient board.
Phillips screwdriver No. 2
(4) Remove the patient board from the main
unit.
3-6. Front panel LED board (UPCL)
(1) Remove the six screws (T2CCUK3x8SZ)
that secure the panel chassis.
Phillips screwdriver No. 2
(2) Remove the panel chassis from the main
unit.
※ When assembling, tighten optionally
after the screws ① and ②.
Note) The unused hole is the spare when
the screw becomes loose.
Patient board
Patient board
Panel chassis
①
②
