Olympus E-PL3 - Names of Parts and Functions; Camera; Names of Parts

10 EN
Basic guide
Names of parts and functions
Camera
1
2
3
4
5
6
a
0
9
8
7
4
e
b
c
d
f
g

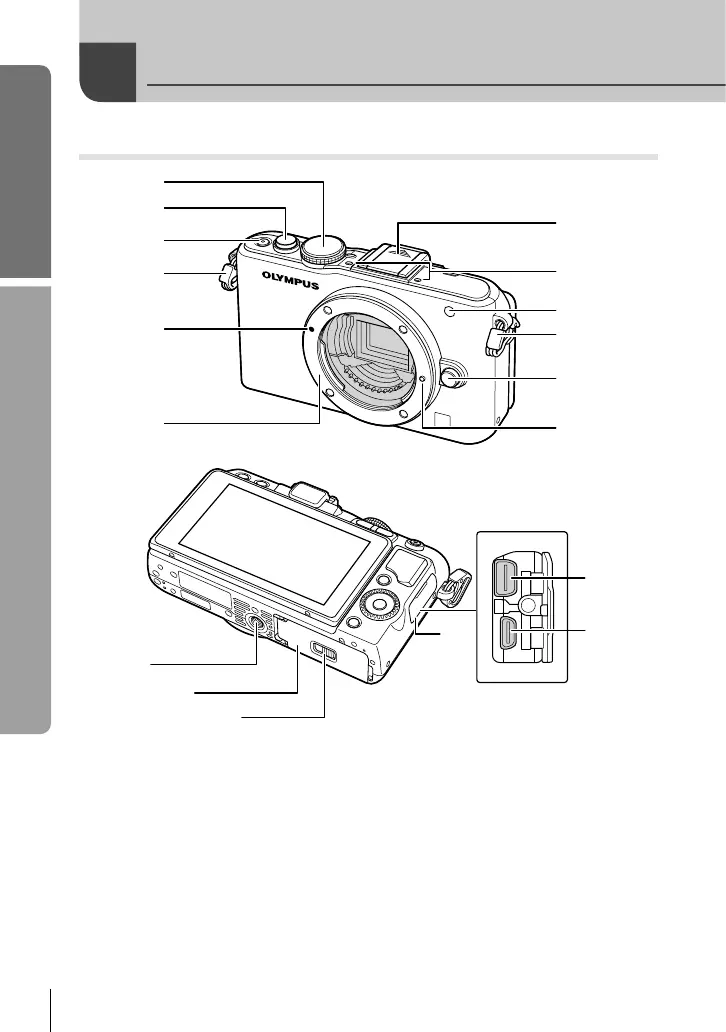

1 Mode dial ....................................P. 8, 12
2 Shutter button ...............P. 13, 14, 36, 92
3 ON/OFF button ................................P. 8
4 Strap eyelet.......................................P. 3
5 Lens attachment mark ......................P. 6
6 Mount (Remove the body cap before
attaching the lens.)
7 Hot shoe cover
8 Stereo microphone ...................P. 62, 68
9 Self-timer lamp/AF illuminator
...............................................P. 49/P. 82
0 Lens release button ..........................P. 6
a Lens lock pin
b Tripod socket
c Battery/card compartment cover.......P. 4
d Battery/card compartment lock .........P. 4
e Connector cover
f Multi-connector ...................P. 69, 73, 77
g HDMI micro connector (type D) ......P. 69
Names of parts
