Olympus FE-290 - Names of Parts; Camera Component Identification

Appendix
EN 59

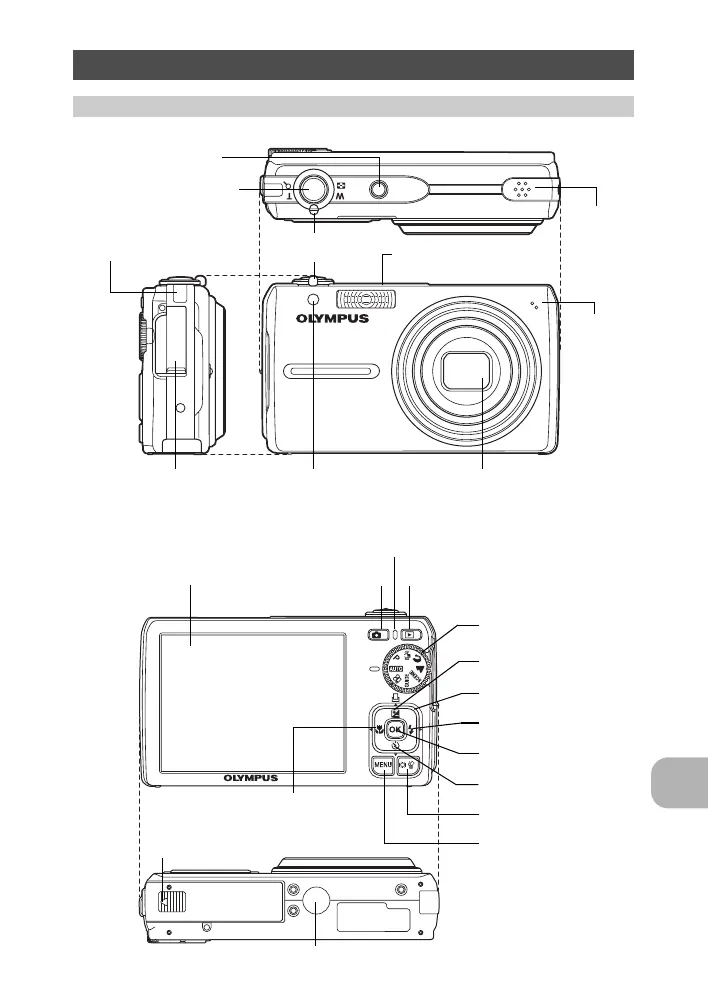

Names of Parts
Camera
Flash
gP. 14
Lens
Mode dial
gP. 12
OF/< button (Exposure
Compensation/Print)
gP. 13
X& button
(Macro mode)
gP. 14
NY button (Self-timer)
gP. 14
Strap eyelet
gP. 3
Battery/card compartment cover
gP. 4
/S button (Backlight boost/
Erase) gP. 14
Monitor gP. 25
m button
gP. 14
Self-timer lamp
gP. 14
Microphone
K button (Shooting)
gP. 11
q button (Playback)
gP. 12
Y# button (Flash mode)
gP. 14
H button (OK)
gP. 13
Arrow pad (ONXY)
gP. 13
Shutter button
gP. 11
Card access lamp gP. 37, 44, 50
Speaker
Tripod socket
Connector cover/Multi-connector/
DC-IN jack
gP. 26, 27, 36
Zoom lever
gP. 15
o button
gP. 11
