USG-400
ISSUE1 3-19 Installation and Connection

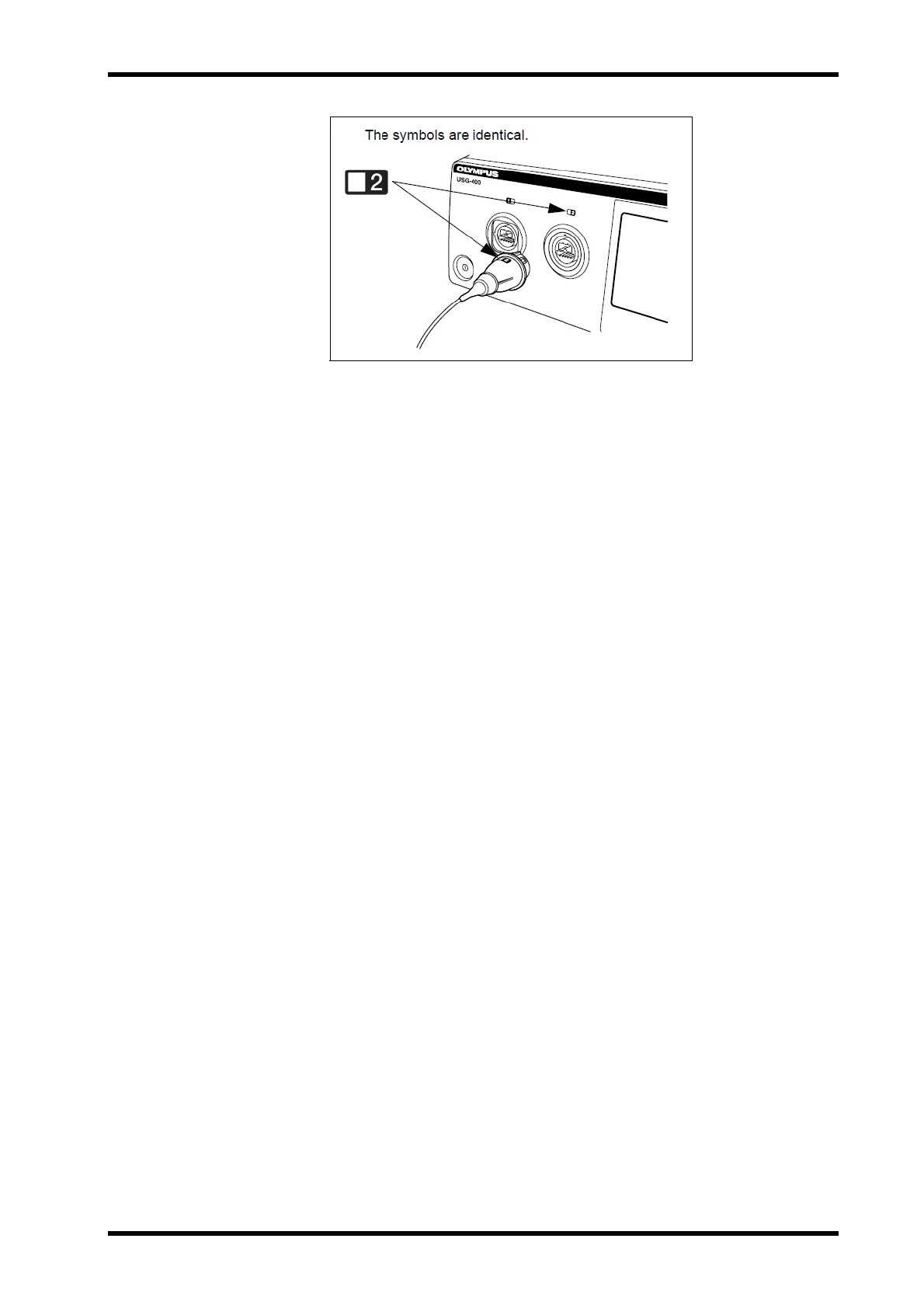

Figure 3.21
2. Connecting the transducer plug
Fully insert the transducer plug into the transducer socket of the ultrasonic
generator until it is seated.
Disconnecting the THUNDERBEAT and SONICBEAT
Hold the ultrasonic generator with one hand and the transducer plug in the other
hand, pull out the transducer plug.
